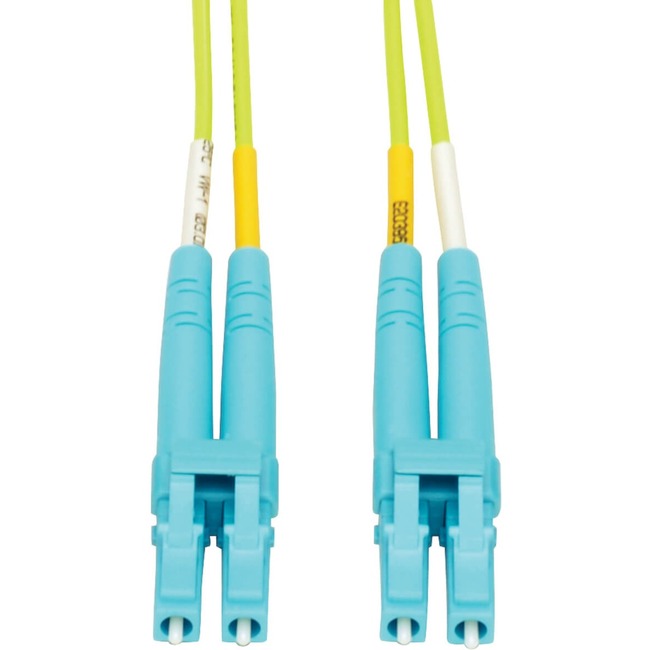

Tripp Lite Duplex Multimode Fiber Patch Cable OM5 LC LC 50/125 100Gb 1M
| $17.67 Retail $27.44 |
- Rated OM5 to offer a wideband 50/125 multimode fiber solution
- For 40/100 Gb speeds up to 300 meters (at 850 nm)
- Laser-optimized for use with cost-effective VCSEL light sources
- Lime green jacket for easy OM5 identification; 1 m (3 ft.) cable
- Backward compatible with OM3 and OM4 applications
Fiber Optic for Network Device - 12.50 GB/s - Patch Cable - 3.28 ft - 2 x LC Male Network - 2 x LC Male Network - 50/125 µm - Lime Green
Product Specifications
| Brand Name | Tripp Lite |
| Cable Characteristic | Patch Cable |
| Cable length | 3 ft |
| Cable type | Fiber Optic |
| Color | Lime Green |
| Connector on First End | 2 x LC Male Network |
| Connector on First End | LC Male Network |
| Core/Cladding Diameter | 50/125 µm |
| Country of origin | China |
| Data transfer rate | 100 Gbit/s |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Halogen Free |
| Fiber Optic Mode | Multi-mode |
| Limited Warranty | Lifetime |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N820-01M-OM5 |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Support Higher Bandwidths in Data Networks with OM5 Multimode 50/125 Fiber Patch Cable As the amount of traffic in data networks grows so does the need for next generation devices and fiber cables to support higher bandwidths. Tripp Lite's OM5 Duplex Multimode 50/125 Fiber Patch Cable is a wideband multimode fiber (WBMMF) solution that supports at least four wavelengths in the 850-950 nm range. This LC to LC multimode fiber optic patch cable is well-suited for 40/100 Gb Ethernet applications up to 300 meters (at 850 nm). Its short one-meter length reduces cable clutter. Use with VCSEL Light Sources for a Cost-Effective High-Bandwidth Solution The N820-01M-OM5 is a laser-optimized multimode fiber (LOMMF) cable designed for use with vertical-cavity surface-emitting lasers (VCSELs) to offer a cost-effective high-bandwidth solution over extended distances in the 850-950 nm wavelength range. It is commonly used in LANs SANs and high-speed parallel interconnects for head-ends central offices and data centers. Experience Reliable Performance with Premium Construction Premium materials ensure this multimode fiber cable reliably carries data and voice signals. The cable has duplex male LC connectors on each end and features a low-smoke zero-halogen (LSZH) jacket that limits the amount of toxic smoke emitted in case of combustion making it suitable for poorly ventilated areas. The lime green color of the jacket identifies the cable as OM5 rated. It meets current IEEE 802.3ae and TIA LOMMF standards. Employ OM5 Cable for Backward Compatibility and Future Proofing Rated OM5 the N820-01M-OM5 cable is backward compatible with existing OM3- and OM4-rated 50/125 fiber solutions. This LC to LC multimode fiber optic cable can also be used with shortwave wavelength division multiplexing (SWDM) technology to provide transmission over longer distances in the 850-950 nm wavelength range than OM3- and OM4-rated cables. Plus the OM5 cables will be compatible with SWDM solutions in future networks with even higher bandwidths. Lifetime Warranty The N820-01M-OM5 is backed by a lifetime limited warranty ensuring reliability and performance. |
| Product Name | N820-01M-OM5 Fiber Optic Duplex Patch Network Cable |
| Product Type | Network Cable |
| UPC Alternates | 037332225955 818275350399 818289833918 |
