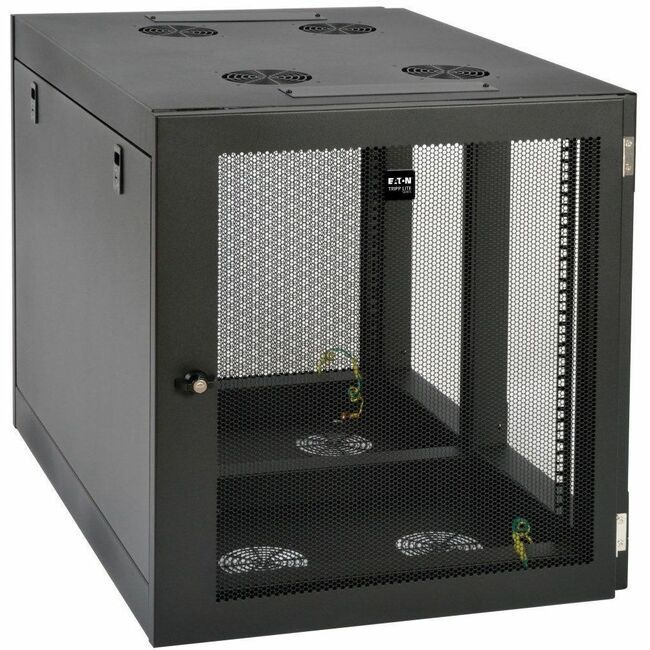

Tripp Lite 12U Wall Mount Rack Enclosure Server Cabinet Side Mount Wallmount
| $555.55 Retail $1,038.96 |
- Maximum load capacity of 500 lb.
- Locking steel cabinet vented at sides, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 12U of 19 in. rack equipment up to 32.5 in. deep
For Server - 12U Rack Height x 19" Rack Width x 32.50" Rack Depth - Wall Mountable - Black - 500 lb Static/Stationary Weight Capacity
Product Specifications
| Rack Depth | 32.50" |
| Rack Width | 19" |
| Static/Stationary Weight Capacity | 500 lb |
| Application/Usage | Server |
| Brand Name | Tripp Lite |
| Certifications & Standards | EIA-310-E |
| Country of origin | China |
| Depth | 36.2" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Vented Top |
| Features | Removable Door |
| Features | Removable Side Panel |
| Features | Adjustable Mounting Rails |
| Form factor | Wall Mountable |
| Height | 26.5" |
| Limited Warranty | 5 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SRW12UHD |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The SRW12UHD SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets retail locations classrooms back offices and other areas with limited floor space where you need equipment to be secure organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish the cabinet has a maximum load capacity of 500 pounds.Because the low-profile cabinet mounts sideways it extends less than 25 inches from the wall while housing equipment up to 32.5 inches deep including 1U servers UPS systems battery packs network switches and patch panels. The removable front panel and side doors lock securely to help prevent damage tampering or theft. The top bottom and sides are vented which allows air to flow freely and keep equipment cool. Convenient top and bottom ports allow easy cable routing.The SRW12UHD comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments. |
| Package Contents |
|
| Product color | Black |
| Product Line | SmartRack |
| Product Name | SmartRack Heavy-Duty Side-Mount Wall-Mount Rack Enclosure Cabinet |
| Product Type | Rack Cabinet |
| Rack Height | 12U |
| UPC Alternates | 037332183323 831052020636 |
| Weight (Approximate) | 101.40 lb |
| Width | 24.8" |
