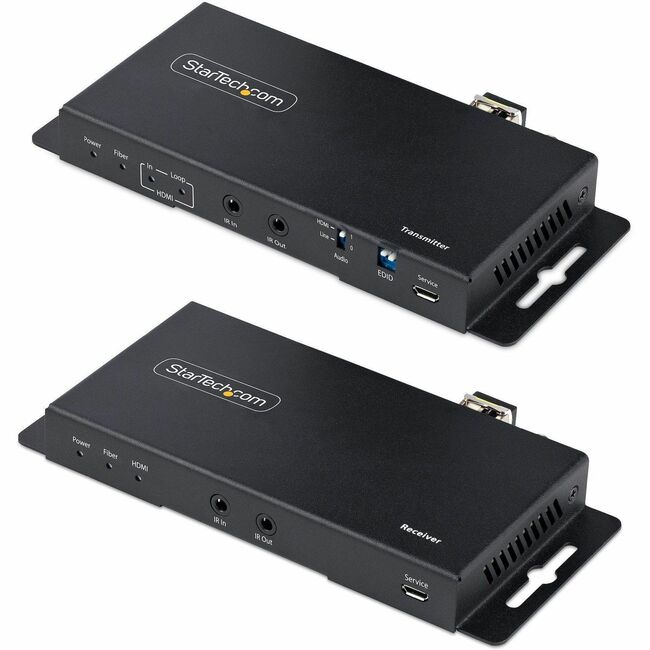

StarTech.com 4K HDMI over Fiber Extender Kit, 4K 60Hz, 3300ft (1km) Single Mode/1000ft (300m) Multimode LC Fiber Optic, HDR, IR Extender
| $575.88 Retail $664.99 |
- HDMI OVER FIBER EXTENDER KIT: Extend an Ultra HD (UHD) 4K 60Hz HDMI signal with 7.1ch audio up to 3300ft (1km) over Single Mode or up to 1000ft (300m) over Multimode fiber cabling; Single Strand LC/UPC connector; HDR10; HDCP 2.2; 4:4:4 Chroma Subsampling
- RELIABLE VIDEO TRANSMISSION: HDMI extender works over Single Mode or Multimode fiber, enabling the use of existing fiber cabling; Single strand optical fiber provides full bandwidth video while being immune to Electro-Magnetic Interference (EMI)
- AUDIO CAPABILITIES: HDMI 2.1 Extender offers an audio extraction function that enables playback of HDMI source audio via the 3.5mm audio output on the receiver unit; Simultaneous audio playback across both HDMI and 3.5mm outputs is supported
- HASSLE-FREE INSTALLATION: Point-to-Point connection with optical fiber between transmitter and receiver means no IP configuration, drivers, or network equipment required; Durable metal housing with built-in mounting bracket
HDMI over Fiber Extender Kit; 4K 60Hz HDMI over Single Strand LC Optical Fiber; 7.1ch Audio; HDR10; Single Mode up to 3300ft; Multimode up to 1000ft; Metal housing; Built-in mounting brackets; IR/serial extension; 8kV Air/6kV Contact ESD protection
Product Specifications
| Connectivity technology | Wired |
| Graphics Modes | 4K UHD |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST121HD20FXA2 |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | This HDMI over Fiber Extender Kit extends an Ultra HD (UHD) 4K 60Hz HDMI signal with 7.1ch audio up to 3300ft over Single Strand LC fiber cable. This converter kit includes both the transmitter and receiver for a complete end-to-end solution. Works with Single Mode or Multimode Fiber This HDMI extender works over Single Mode or Multimode fiber cabling allowing the utilization of existing fiber infrastructure. The single strand optical fiber provides full-bandwidth video while being immune to Electro-Magnetic Interference (EMI) making it ideal for use in challenging environments. Fiber Type Single Mode Multi Mode Supported Distance Up to 3300ft (1000m) Up to 1000ft (300m)Audio Capabilities Audio extraction functionality enables playback of the HDMI source audio via the 3.5mm audio output on the receiver unit. Simultaneous audio playback across both HDMI and 3.5mm outputs is supported providing flexibility for a variety of audio setups. Hassle-Free Installation The point-to-point connection using LC single strand fiber between the A/V transmitter and receiver eliminates the need for IP configuration drivers or network equipment. The HDMI extension kit features a durable steel housing with built-in mounting brackets allowing for a tidy and secure installation. The HDMI over Fiber kit features a local HDMI output and IR/serial extension for a convenient and versatile setup. Ideal for setups that include projectors with RS232 controls or A/V equipment with IR remote controls. The enhanced EDID Copy functions ensure the correct display information is used during the setup process. LED indicators allow for status monitoring. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection ensures the safety and longevity of the equipment. This product is backed for 2-years including free lifetime 24/5 multi-lingual technical assistance. |
| Maximum Operating Distance | 3300 ft |
| Media Type Supported | Optical Fiber |
| Number of HDMI Inputs | 1 |
| Number of USB Ports | 2 |
| Package Contents |
|
| Product Type | Video Extender Transmitter/Receiver |
| UPC Alternates | 065030897303 |
| USB | Yes |
