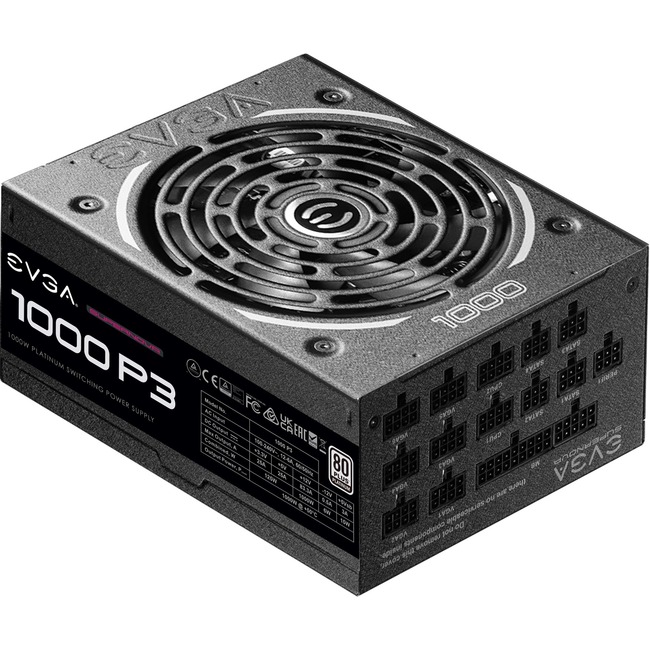

EVGA SuperNOVA P3 1000W Power Supply
| $179.10 |
- Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
- Fully Modular to reduce clutter and improve airflow
- 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- 100% Japanese Capacitors ensure long-term reliability
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Active Power Factor Correction
- Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
- Full-bridge LLC Resonant Converter and DC-DC design leads to tight voltage regulation and low ripple & noise
Compact - 120 V AC, 230 V AC Input - 3.3 V DC @ 25 A, 5 V DC @ 25 A, 12 V DC @ 83.3 A, 5 V DC @ 3 A, -12 V DC @ 0.5 A Output - 1000 W - 1 +12V Rails - 1 Fan(s) - 94% Efficiency
Product Specifications
| Specification Compliance | ATX12V/EPS12V |
| Brand Name | EVGA |
| Efficiency | 94% |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | 80 Plus Platinum |
| Environmentally Friendly | Yes |
| Form factor | Compact |
| Height | 3.4" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Limited Warranty | 10 Year |
| Manufacturer | EVGA Corporation |
| Manufacturer Part Number | 220-P3-1000-X1 |
| Manufacturer Website Address | http://www.evga.com |
| Marketing Information | EVGA SuperNOVA P3A | New Generation of Platinum Power EVGA SuperNOVA power supplies are well-known for their extreme efficiency performance and reliability. EVGA's dedication to performance has forged its newest higher-wattage power supply platform: the EVGA SuperNOVA P3 Series. With these new power supplies EVGA took the best features of the award-winning P2 lineup and made them even better. The SuperNOVA P3's smaller size improved performance and a new Fluid Dynamic Bearing fan give you ultra-quiet performance with an increased lifespan. A reduced size does not mean reduced performance with the EVGA SuperNOVA P3 power supplies. At only 180mm long this makes the P3 one of the smaller 80 Plus Platinum power supplies on the market today while offering improved performance and features. Better performance quieter operation and a longer lifespan. Next-generation systems deserve next-generation performance. The EVGA SuperNOVA P3 takes the already efficient P2 series and makes it even better with improved efficiency and lower ripple. These power supplies are over 92% efficient! VGA ECO mode means the power supply is completely silent during low to medium loads. This is one quiet power supply! Use only the cables you need reducing cable clutter and improving case airflow. World leading warranty and support for 10 years. |
| Number of Fans | 1 |
| Output power | 1000 W |
| Output voltage | 5 V DC @ 3 A |
| Output voltage | 3.3 V DC @ 25 A |
| Output voltage | -12 V DC @ 0.5 A |
| Output voltage | 5 V DC @ 25 A |
| Output voltage | 12 V DC @ 83.3 A |
| Product Family | SuperNOVA P3 |
| Product Line | SuperNOVA |
| Product Name | SuperNOVA P3 1000W Power Supply |
| Product Series | P3 |
| Product Type | Power Supply |
| UPC Alternates | 843368059149 |
| Weight (Approximate) | 9 lb |
| Width | 5.9" |
