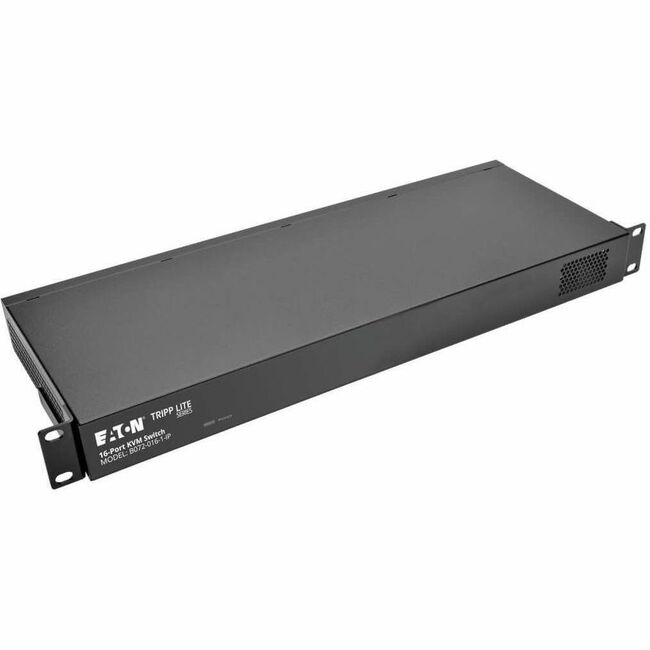

Tripp Lite 16-Port Cat5 IP KVM Switch Compact 1+1 User Rackmount

Tripp Lite's B072-016-1-IP KVM Switch is the optimal solution for controlling up to 16 computers/servers locally from across the room down the street or around the globe on a network or the Internet.

This KVM switch can be accessed and controlled remotely so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available.

The B072-016-1-IP uses inexpensive user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports; if one fails the other takes over keeping remote access uninterrupted. Users can switch easily between the 16 ports using an on-screen display (OSD) hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers and a local user and a remote user can each log on and access different ports simultaneously.

Two serial ports allow control of serial-manageable devices such as IP PDUs firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems and provides remote access using a Windows computer. It supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.

Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication system-sent SNMP messaging and an event log that tracks logins reboots and network setting changes.

Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface you can access server ports on any of your KVM switches power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-016-1-IP.

Features

Saves Space and Money

• Mounts in a standard 19 in. rack
• Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
• Use a Server Interface Unit B078-101-USB-1 (for USB) or B078-101-PS2 (for PS/2) with each server to be connected with Cat5 cable; use a B078-101-USB2 to support Virtual Media data transfer rates up to 12Mbps
• To convert DisplayPort or HDMI computers to VGA use Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

IP Remote Access for Fewer Trips to the Server Room

• Control this KVM switch over IP: remote access means there's no need to travel to the server room or network closet
• Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection
• A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java
• 1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single remote session
• Supports both IPv4 and IPv6

• NetCommander B072-016-1-IP 16-Port KVM Over IP Switch
• 16-Port NetCommander 1U Rackmount Cat5 KVM over IP Switch
• Rackmount Bracket kit
• 6ft Power Cord
• 6ft Serial Cable
