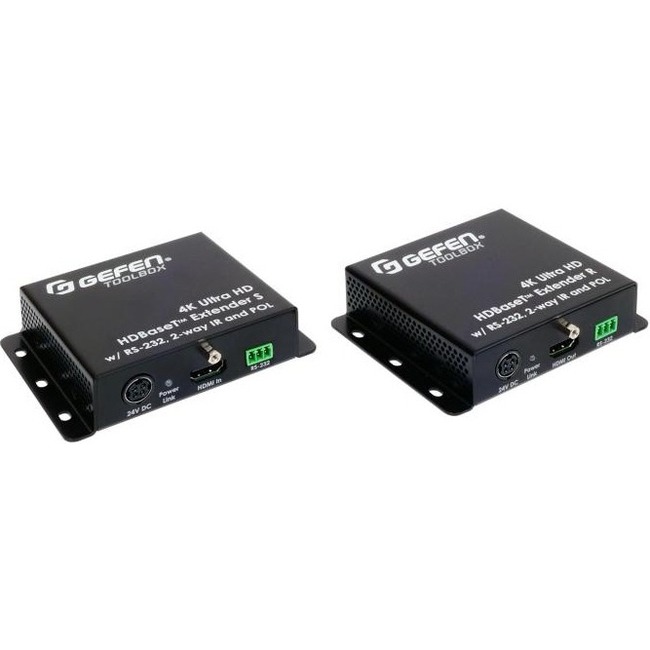

Gefen 4K Ultra HD HDBaseT Extender
| $488.58 Retail $680.40 |
- Extends HDMI, RS-232, and 2-way IR over a single CAT-5e/CAT-6A: 4K Ultra HD (3840 x 2160 @ 60Hz, 4:2:0, 8-bit), up to 330 feet/100 meters, 4K Ultra HD (3840 x 2160 @ 30Hz, 4:4:4, 8-bit), up to 330 feet/100 meters, 4K Cinema (DCI) (4096 x 2160 @ 24 or 30Hz 4:4:4, 8-bit), up to 330 feet/100 meters, 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 12-bit), up to 330 feet/100 meters, 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 8-bit), up to 495 feet/150 meters
- HDMI Features Supported:, HDMI 2.0, HDCP 2.2 and 1.4, 12-bit Deep Color, LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master, Audio™ pass-through, 3DTV pass-through, CEC pass-through, Lip Sync pass-through
- IR extension from Sender to Receiver and from Receiver to Sender
- Gefen Bi-Directional POL feature provides power to the Sender or the Receiver unit over the link cable - only one side will need external power
- Uses Gefen's implementation of HDBaseT™ tech
1 Input Device - 1 Output Device - 492.13 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Surface-mountable
Product Specifications
| Network (RJ-45) | Yes |
| Transmitter Depth | 4.25" |
| Transmitter Height | 6" |
| Transmitter Weight (Approximate) | 2.30 lb |
| Transmitter Width | 12.10" |
| Brand Name | Gefen |
| Connectivity technology | Wired |
| Form factor | Surface-mountable |
| Graphics Modes | 4K |
| Limited Warranty | 3 Year |
| Manufacturer | Gefen Inc |
| Manufacturer Part Number | GTB-UHD-HBT |
| Manufacturer Website Address | http://www.gefen.com |
| Marketing Information | Gefen GTB-UHD-HBT 4K Ultra HD HDBaseT™ Extender over one CAT-5 with RS-232 2-way IR and Bi-Directional POL The GTB-UHD-HBT 4K Ultra HD Extender uses Gefens implementation of the latest HDBaseT technology to extend HDMI up to 495 feet/150 meters at 1080p (8 bits) and up to 330 feet/100 meters at 4K. Small low profile enclosures can be securely surface-mounted and conveniently hidden away from sight. Video Support Resolutions up to 4K Ultra HD (3860 x 2160 at 60 Hz 4:2:0) are supported. This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4. Audio Support The GTB-UHD-HBT supports Stereo and Multichannel digital audio including 7.1 channels of LPCM as well as High Bit Rate (HBR) digital audio formats such as Dolby® TrueHD and DTS-HD Master Audio. TOSLINK® Optical Digital Audio can be sent from the display side back to the source and analog audio can be extended from the source side to the Receiver. IP & Serial Extension This product provides RS-232 and 2-way IR extension between the Sender and the Receiver units facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Bi-Directional Power Over HDBaseT Gefen Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. |
| Maximum Operating Distance | 492.13 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents |
|
| Product Line | GefenToolBox |
| Product Name | 4K Ultra HD HDBaseT Extender |
| Product Type | Video Extender Transmitter/Receiver |
| Twisted Pair Cable Standard | Category 6a |
| UPC Alternates | 818241165385 818242432370 888814999549 |
