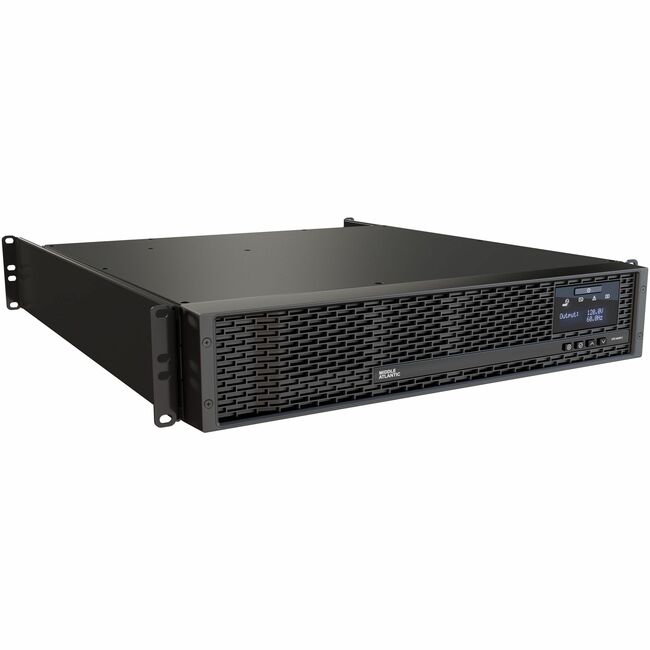

Middle Atlantic NEXSYS UPX-1000R-2 1000VA Rack-mountable UPS
New
Middle Atlantic NEXSYS UPX-1000R-2 1000VA Rack-mountable UPS - 2U Rack-mountable - AVR - 8 Hour Recharge - 4 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-15R
| $1,110.02 Retail $2,200.00 |
- 8 outlets-Bank Controlled option with (2) 4 outlet banks-Individually Controlled options for all 8 outlets via RackLink™
- All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment
- Everything is assembled and connected right from the factory saving you time during your installations-Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail-The battery is already connected so just plug it in
- The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications
- The NEXSYS UPSs are RackLink compatible for remote monitoring and management and some are compatible right out of the box! Look for RLNK in the part number. Use the RackLink Discovery Tool on your on PC, Apple or Android devices and connect d
Subscribe & Save5%
| Buy Once $1,110.02 | |||
| Subscribe & Save$1,054.52 | |||
| Delivery Ferquency |
You may be also interested
$3,086.84
$3,799.95
$8,655.67
$13,700.00
$5,930.90
$9,025.00
$343.88
$395.00
$2,584.64
$2,304.02
$3,298.00
$277.24
$990.35
$1,189.95
$2,190.32
$3,495.00
$1,332.81
$2,253.88
$64.02
$95.00
$1,305.14
$2,207.08
$3,290.26
$5,010.00
$6,400.51
$9,740.00
$733.34
$1,084.00
$1,618.79
$2,075.00
$1,643.14
$1,750.00
$1,871.27
$2,259.95
$464.31
$519.95
$434.94
$657.00
Middle Atlantic NEXSYS UPX-1000R-2 1000VA Rack-mountable UPS - 2U Rack-mountable - AVR - 8 Hour Recharge - 4 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-15R
2U Rack-mountable - AVR - 8 Hour Recharge - 4 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-15R
2U Rack-mountable - AVR - 8 Hour Recharge - 4 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-15R
Product Specifications
| DC System Voltage | 36 V DC |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (W) | 900 W |
| Operating Humidity | 95% |
| Output Frequency | 60 Hz |
| Receptacle Detail | 8 x NEMA 5-15R |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Waveform Type | Pure Sine Wave |
| Additional Warranty Information | 2 Years Battery |
| Alarm | On Battery |
| Alarm | Fault |
| Alarm | Low Battery |
| Alarm | Battery Disconnected |
| Alarm | Overload |
| Application/Usage | Desktop |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Battery capacity | 7000 mAh |
| Battery Characteristics | Maintenance-free Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Brand Name | Middle Atlantic |
| Country of origin | China |
| Display | LCD |
| Environmental Certification | REACH |
| Environmental Certification | ENERGY STAR 2.1 |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS 3 |
| Form factor | Rack-mountable |
| Height | 3.4" |
| Hot Swappable | Yes |
| Input voltage | 120 V AC |
| Input Voltage Range | 80 V AC - 158 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 1000 VA/900 W |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | UPX-1000R-2 |
| Manufacturer Website Address | http://www.legrand.us |
| Marketing Information | NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed engineered and built for AV. It's one thing to say it it's another thing to prove it. And our NEXSYS Line Interactive UPSs prove it we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect. |
| Maximum Operating Temperature | 104°F (40°C) |
| Network Management | RS-232 |
| Network Management | Web |
| Network Management | USB |
| Network Management | SNMPv3 |
| Network Management | SNMP/Telnet/SSH |
| Number of Batteries | 3.0 |
| Output voltage | 127 V AC |
| Output voltage | 110 V AC |
| Package Contents |
|
| Plug/Connector Type | NEMA 5-15P |
| Product color | Black |
| Product Line | NEXSYS |
| Product Name | NEXSYS UPX-1000R-2 1000VA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Rack Height | 2U |
| Receptacle Type | NEMA 5-15R |
| Sound Emission | 45 dB |
| Status Indicators | LED Indicators:
|
| Surge energy rating | 1000 J |
| Transfer Time | 10 ms |
| Typical Battery Recharge Time | 8 Hour |
| UPC Alternates | 656747395574 |
| Weight (Approximate) | 44.09 lb |
| Width | 17.3" |
