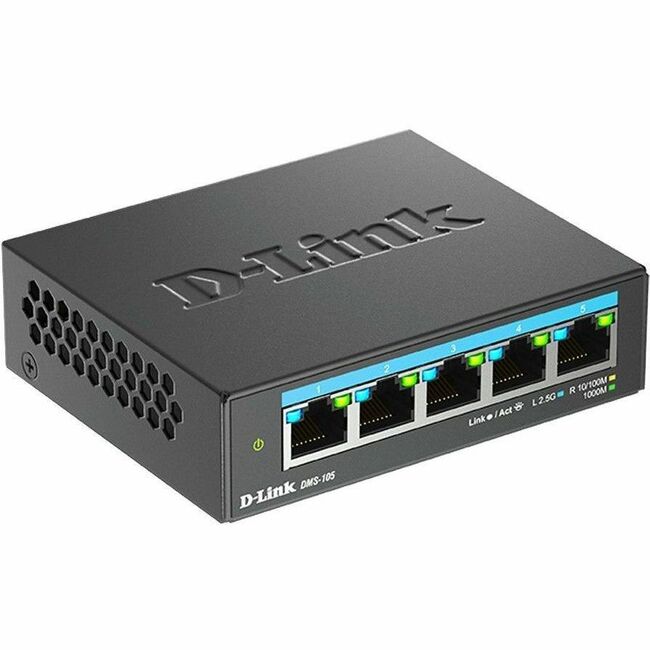

D-Link 5-Port Multi-Gigabit Unmanaged Switch - 5 Ports - 2.5 Gigabit Ethernet, Gigabit Ethernet - 2.5GBase-T, 10/100/1000Base-T - 2 Layer Supported - 4.92 W Power Consumption - Twisted Pair
5 Ports - 2.5 Gigabit Ethernet, Gigabit Ethernet - 2.5GBase-T, 10/100/1000Base-T - 2 Layer Supported - 4.92 W Power Consumption - Twisted Pair
| Product Material | Metal |
| Total Number of Network Ports | 5 |
| Application/Usage | Network |
| Brand Name | D-Link |
| Depth | 4" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Features | Fanless |
| Height | 1.1" |
| Input voltage | 12 V |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer | D-Link Systems Inc |
| Manufacturer Part Number | DMS105 |
| Manufacturer Website Address | http://www.dlink.com |
| Marketing Information | The DMS-105 5-Port Multi-Gigabit Unmanaged Switch is ideally suited for Small Office Home Office (SOHO) environments. With a durable design silent operation and plug-and-play functionality the DMS-105 switch can be easily set up and be placed in almost any location where network connectivity is required. Support for IEEE 802.3az Energy-Efficient Ethernet (EEE) 802.1p Quality of Service (QoS) and multi-Gigabit Ethernet connection speeds provide advanced features in a compact package. Integrated Networking The DMS-105 switch uses auto-sensing ports providing a small workgroup to flexibly connect Ethernet Fast Ethernet Gigabit and 2.5 Gigabit devices to create an integrated network. These ports detect the network speed via auto-negotiation allowing you to get the maximum speed possible for each device connected to your network. Simplified Installation All of the ports on the DMS-105 switch supports automatic MDI/MDIX crossover eliminating the need for crossover cables. Each port can be plugged in directly to a server hub router or switch using regular straight-through twisted-pair Ethernet cables. In addition the DMS-105 switch features multiple front easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status |
| Media Type Supported | Twisted Pair |
| Network Technology | 2.5GBase-T |
| Network Technology | 10/100/1000Base-T |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3bz |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3x |
| Port/Expansion Slot Details | 5 x 2.5 Gigabit Ethernet Network Port |
| Power consumption | 4.92 W |
| Power source | Power Adapter |
| Product Model | DMS-105 |
| Product Name | 5-Port Multi-Gigabit Unmanaged Switch |
| Product Type | Ethernet Switch |
| Weight (Approximate) | 8.42 oz |
| Width | 3.2" |
