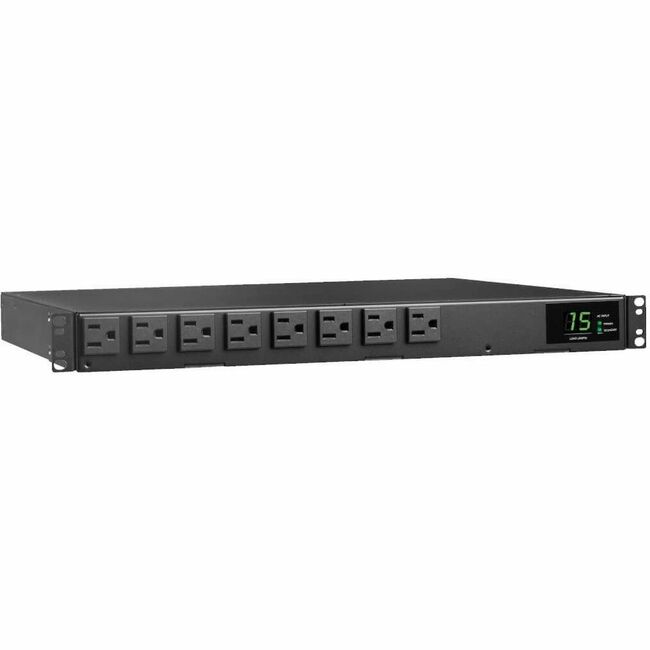

Tripp Lite PDU ATS / Metered 120V 1.44kW 15A 8 5-15R Dual 5-15P 12ft Cords - Metered Auto Transfer Switch - NEMA 5-15P - 8 x NEMA 5-15R - 120 V AC - 1U - Horizontal - Rack-mountable, Wall-mountable - TAA Compliant
Metered Auto Transfer Switch - NEMA 5-15P - 8 x NEMA 5-15R - 120 V AC - 1U - Horizontal - Rack-mountable, Wall-mountable - TAA Compliant
| Mounting Orientation | Horizontal |
| PDU Type | Metered Auto Transfer Switch |
| Phase | Single Phase |
| Plug/Connector Detail | 2 x NEMA 5-15P |
| Power Rating (Watt) | 1520 W |
| Receptacle Detail | 8 x NEMA 5-15R |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Depth | 14.5" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 1.8" |
| Input current | 15 A |
| Input voltage | 120 V AC |
| Limited Warranty | 2 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMH15ATS |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Single-Phase 15A ATS PDU Distributes and Monitors Network-Grade Power in Real Time
This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications small computer rooms and other equipment rack applications the PDUMH15ATS features eight NEMA 5-15R 120V outlets for connecting equipment. Dual 12-foot (3.7-meter) power cords with NEMA 5-15P inputs connect to separate primary and secondary mains circuits backup generators UPS systems or utility power grids including out-of-phase sources. Switches from Primary to Secondary Power Source in Milliseconds
Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2-7 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source. Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels even while adding new equipment can keep your TCO (total cost of ownership) low. Mounts into 1U of Rack Space or on a Wall
Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall or under a counter. TAA-Compliant for GSA Schedule Purchases
The PDUMH15ATS is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Mount Type | Wall-mountable |
| Mount Type | Rack-mountable |
| Output voltage | 100 V AC |
| Output voltage | 127 V AC |
| Package Contents | - 8-Outlets PDU
- Detachable C13 To NEMA 5-15P Secondary Input Cord 12 Ft. (3.7 m)
- Rack-Mounting Hardware
- Cord Retention Kit
- Owner's Manual
|
| Plug/Connector Type | NEMA 5-15P |
| Product Name | 8-Outlets PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Rack Height | 1U |
| Receptacle Type | NEMA 5-15R |
| UPC Alternates | 037332261366 |
| Weight (Approximate) | 11 lb |
| Width | 17.5" |
