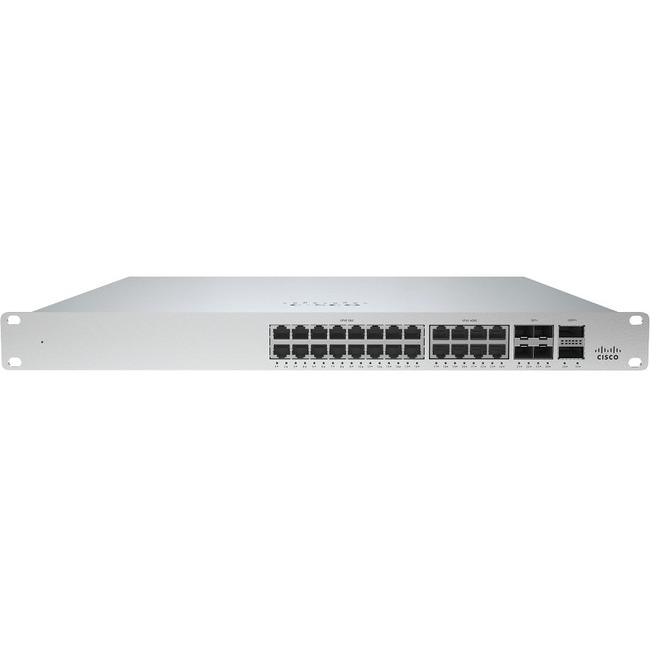

Meraki MS355-24X-HW Layer 3 Switch - 24 Ports - Manageable - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable
24 Ports - Manageable - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable
| Compatible Rack Unit | 1U |
| Compatible Rack Unit | 1U |
| Compatible Rack Unit | 1U |
| Number of SFP+ Slots | 4 |
| Number of SFP+ Slots | 4 |
| Number of SFP+ Slots | 4 |
| Number of Total Expansion Slots | 8 |
| Number of Total Expansion Slots | 8 |
| Number of Total Expansion Slots | 8 |
| Shared SFP Slot | No |
| Shared SFP Slot | No |
| Shared SFP Slot | No |
| Total Number of Network Ports | 24 |
| Total Number of Network Ports | 24 |
| Total Number of Network Ports | 24 |
| Brand Name | Meraki |
| Brand Name | Meraki |
| Brand Name | Meraki |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 20.3" |
| Depth | 20.3" |
| Depth | 20.3" |
| Ethernet Technology | 100 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 100 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 100 Gigabit Ethernet |
| Ethernet Technology | 40 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 40 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 40 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | QSFP28 |
| Expansion Slot Type | QSFP28 |
| Expansion Slot Type | QSFP+ |
| Expansion Slot Type | QSFP+ |
| Expansion Slot Type | QSFP28 |
| Expansion Slot Type | SFP+ |
| Expansion Slot Type | SFP+ |
| Expansion Slot Type | QSFP+ |
| Expansion Slot Type | SFP+ |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Height | 1.7" |
| Height | 1.7" |
| Layer Supported | 3 |
| Layer Supported | 3 |
| Layer Supported | 3 |
| Manageable | Yes |
| Manageable | Yes |
| Manageable | Yes |
| Manufacturer | Cisco Systems Inc |
| Manufacturer | Cisco Systems Inc |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | MS355-24X-HW |
| Manufacturer Part Number | MS355-24X-HW |
| Manufacturer Part Number | MS355-24X-HW |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | Multi-Gigabit access switches with 40G uplinks designed for high performance enterprise and campus networks
CLOUD-MANAGED STACKABLE MULTI-GIGABIT SWITCHES
The Cisco Meraki MS355 series provides full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments.
The switch series features a high mGig port density for 802.11ax wireless access points servers and workstations. The family supports 40G or 10G uplinks physical stacking up to 60W of port power with UPoE and field replaceable power supplies/fans.
All Meraki switches are managed through an elegant intuitive cloud-based interface rather than cryptic command line.
To bring up a Meraki switch simply plug it in. Meraki switches do not require CLI for switch configuration or port management.
Meraki's centralized management platform gives administrators granular visibility into their network. Our dashboard helps you keep track of every configuration change in your network with our detailed event and change logs.
iNDUSTRY LEADING CLOUD MANAGEMENT
Cloud management has many benefits that make it easier to build networks large and small:
- Automatic email alerts from power loss downtime excessive Layer 1 errors or configuration changes
- Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
- Role-based administration
- Firmware upgrades and enhancements from the Meraki cloud
- Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
- Incredible network transparency with application operating system client and hostname visibility
- Zero-touch provisioning for rapid deployment across sites
|
| Marketing Information | Multi-Gigabit access switches with 40G uplinks designed for high performance enterprise and campus networks
CLOUD-MANAGED STACKABLE MULTI-GIGABIT SWITCHES
The Cisco Meraki MS355 series provides full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments.
The switch series features a high mGig port density for 802.11ax wireless access points servers and workstations. The family supports 40G or 10G uplinks physical stacking up to 60W of port power with UPoE and field replaceable power supplies/fans.
All Meraki switches are managed through an elegant intuitive cloud-based interface rather than cryptic command line.
To bring up a Meraki switch simply plug it in. Meraki switches do not require CLI for switch configuration or port management.
Meraki's centralized management platform gives administrators granular visibility into their network. Our dashboard helps you keep track of every configuration change in your network with our detailed event and change logs.
iNDUSTRY LEADING CLOUD MANAGEMENT
Cloud management has many benefits that make it easier to build networks large and small:
- Automatic email alerts from power loss downtime excessive Layer 1 errors or configuration changes
- Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
- Role-based administration
- Firmware upgrades and enhancements from the Meraki cloud
- Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
- Incredible network transparency with application operating system client and hostname visibility
- Zero-touch provisioning for rapid deployment across sites
|
| Marketing Information | Multi-Gigabit access switches with 40G uplinks designed for high performance enterprise and campus networks
CLOUD-MANAGED STACKABLE MULTI-GIGABIT SWITCHES
The Cisco Meraki MS355 series provides full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments.
The switch series features a high mGig port density for 802.11ax wireless access points servers and workstations. The family supports 40G or 10G uplinks physical stacking up to 60W of port power with UPoE and field replaceable power supplies/fans.
All Meraki switches are managed through an elegant intuitive cloud-based interface rather than cryptic command line.
To bring up a Meraki switch simply plug it in. Meraki switches do not require CLI for switch configuration or port management.
Meraki's centralized management platform gives administrators granular visibility into their network. Our dashboard helps you keep track of every configuration change in your network with our detailed event and change logs.
iNDUSTRY LEADING CLOUD MANAGEMENT
Cloud management has many benefits that make it easier to build networks large and small:
- Automatic email alerts from power loss downtime excessive Layer 1 errors or configuration changes
- Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
- Role-based administration
- Firmware upgrades and enhancements from the Meraki cloud
- Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
- Incredible network transparency with application operating system client and hostname visibility
- Zero-touch provisioning for rapid deployment across sites
|
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10GBase-T |
| Network Technology | 100GBase-X |
| Network Technology | 40GBase-X |
| Network Technology | 10GBase-X |
| Network Technology | 10GBase-X |
| Network Technology | 100GBase-X |
| Network Technology | 40GBase-X |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10GBase-T |
| Network Technology | 10GBase-T |
| Network Technology | 100GBase-X |
| Network Technology | 40GBase-X |
| Network Technology | 10GBase-X |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 2 x 40 Gigabit Ethernet Uplink |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 2 x 100 Gigabit Ethernet Stack |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 2 x 40 Gigabit Ethernet Uplink |
| Port/Expansion Slot Details | 2 x 100 Gigabit Ethernet Stack |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
