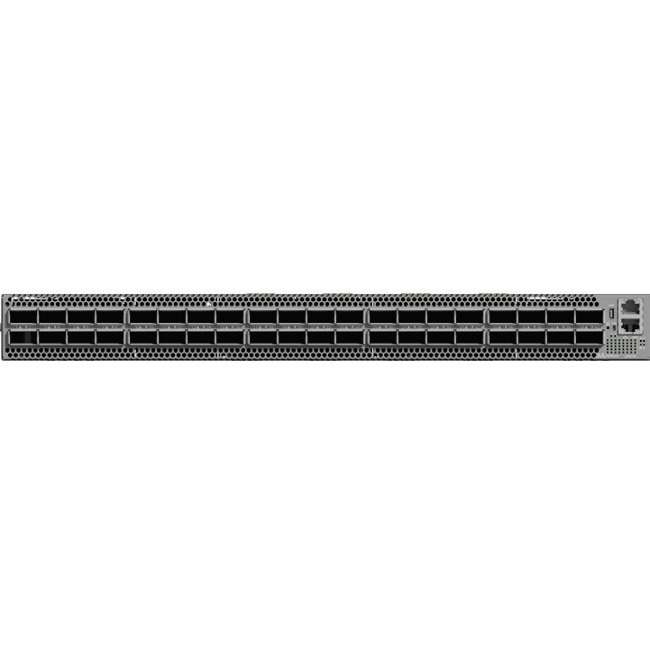

NVIDIA MQM8700-HS2F Quantum HDR InfiniBand Switch - 40 Ports - 200 Gbit/s40 Infiniband Ports - 40 x Total Expansion Slots - Manageable - Rack-mountable - 1U - Redundant Power Supply
40 Ports - 200 Gbit/s40 Infiniband Ports - 40 x Total Expansion Slots - Manageable - Rack-mountable - 1U - Redundant Power Supply
| Compatible Rack Unit | 1U |
| Number of Total Expansion Slots | 40 |
| Brand Name | NVIDIA |
| Country of origin | Israel |
| Data transfer rate | 200 Gbit/s |
| Environmental Certification | RoHS-6 |
| Expansion Slot Type | QSFP56 |
| Form factor | Rack-mountable |
| Limited Warranty | 1 Year |
| Manageable | Yes |
| Manufacturer | Mellanox Technologies Ltd |
| Manufacturer Part Number | MQM8700-HS2F |
| Manufacturer Website Address | http://www.mellanox.com |
| Marketing Information | NVIDIA MQM8700-HS2F Quantum HDR InfiniBand Switch 40 QSFP56 Ports 2 Power Supplies (AC) x86 Dual Core Standard Depth P2C Airflow Rail Kit40-port Non-blocking Managed HDR 200Gb/s InfiniBand Smart Switch Faster servers combined with high-performance storage and applications that use increasingly complex computations are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors High-Performance Computing (HPC) environments and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with next generation of HDR InfiniBand high-speed smart switches. Built with Quantum InfiniBand switch device the QM8700 provides up to forty 200Gb/s ports with full bi-directional bandwidth per port. These stand-alone switches are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters. QM8700 is the world's smartest network switch designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks using embedded hardware resulting in an order of magnitude application performance improvements. Benefits - Industry-leading switch platform in performance power and density
- Designed for energy and cost savings
- Collective communication acceleration
- Maximizes performance by removing fabric congestions
- Backward compatible to previous speeds
- Quick and easy setup and management
Key Features - Performance
- 40 x HDR 200Gb/s ports in a 1U switch
- 80 x HDR100 100Gb/s ports (using splitter cables)
- 16Tb/s aggregate switch throughput
- Sub-130ns switch latency
- Optimized design
- 1+1 redundant & hot-swappable power
- N+1 redundant & hot-swappable fans
- 80 gold+ and energy star certified power supplies
- x86 ComEx Broadwell CPU
- Advanced design
- Adaptive routing
- Congestion control
- Collective offloads (SHARP technology)
- VL mapping (VL2VL)
|
| Package Contents | - MQM8700-HS2F Quantum HDR InfiniBand Switch
- Rail Kit
|
| Product Name | MQM8700-HS2F Quantum HDR InfiniBand Switch |
| Product Type | InfiniBand Switch |
