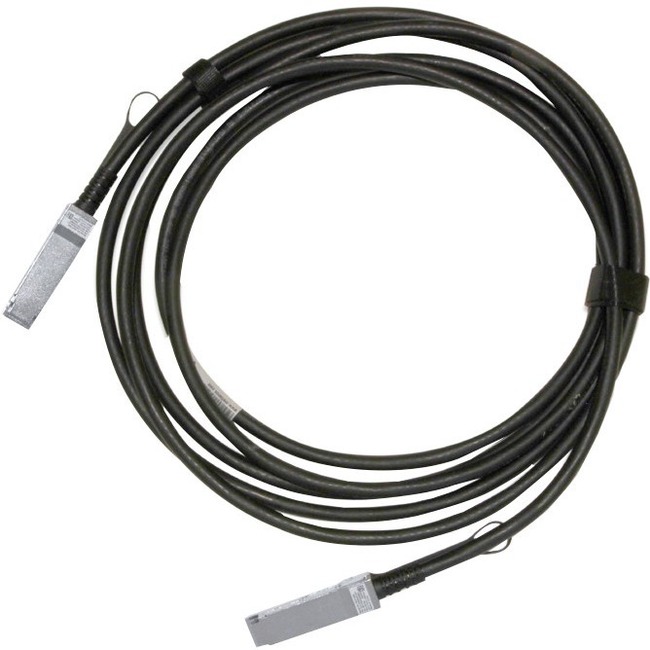

Mellanox Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28, 2m, Black, 30AWG, CA-N - 6.56 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - 30 AWG - Black
6.56 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - 30 AWG - Black
| Jacket Material | Low Smoke Zero Halogen |
| Product Material | Copper |
| American Wire Gauge | 30 AWG |
| Brand Name | Mellanox |
| Cable length | 6.56 ft |
| Cable type | QSFP28 |
| Color | Black |
| Connector on First End | QSFP28 Network |
| Connector on First End | 1 x QSFP28 Network |
| Connector on Second End | QSFP28 - Network |
| Connector on Second End | 1 x QSFP28 Network |
| Data transfer rate | 100 Gbit/s |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Lead-free |
| Features | Passive |
| Features | Halogen Free |
| Limited Warranty | 1 Year |
| Manufacturer | Mellanox Technologies Ltd |
| Manufacturer Part Number | MCP1600-C002E30N |
| Manufacturer Website Address | http://www.mellanox.com |
| Marketing Information | Mellanox® MCP1600-C0xxxxxx direct attach copper (DAC) passive cable assemblies are high speed costeffective alternatives to fiber optics in 100Gb/s Ethernet applications.
Mellanox QSFP28 passive copper cable contains four high-speed copper pairs each operating at data rates of up to 25GbE. Each QSFP28 connector includes an EEPROM providing product information which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
MCP1600 cables up to 2m support IEEE 802.3bj CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.3bj CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability |
| Product Line | LinkX |
| Product Name | Passive Copper Cable ETH 100GbE 100Gb/s QSFP28 2m Black 30AWG CA-N |
| Product Type | Network Cable |
