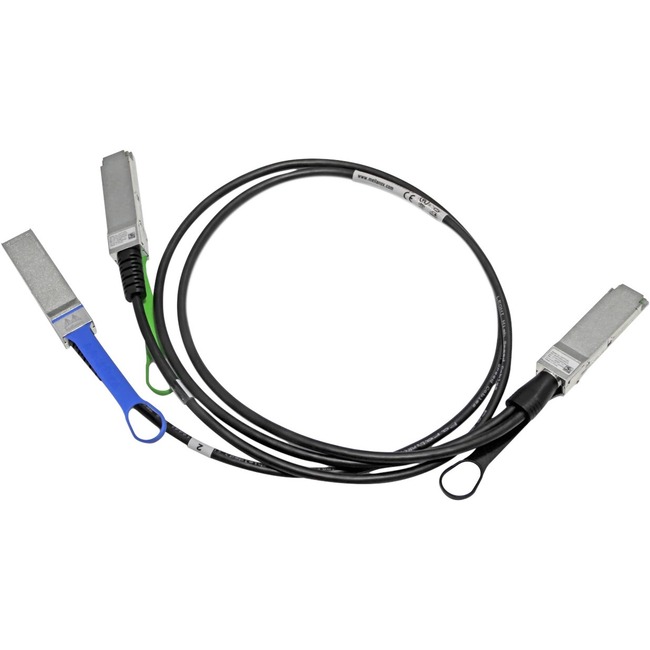

Mellanox LinkX QSFP56 Splitter Network Cable - 4.92 ft QSFP56 Network Cable for Network Device - First End: 1 x QSFP56 Network - Second End: 2 x QSFP56 Network - 200 Gbit/s - Splitter Cable - 30 AWG
4.92 ft QSFP56 Network Cable for Network Device - First End: 1 x QSFP56 Network - Second End: 2 x QSFP56 Network - 200 Gbit/s - Splitter Cable - 30 AWG
| American Wire Gauge | 30 AWG |
| Brand Name | Mellanox |
| Cable Characteristic | Splitter Cable |
| Cable length | 4.92 ft |
| Cable type | QSFP56 |
| Connector on First End | QSFP56 Network |
| Connector on First End | 1 x QSFP56 Network |
| Connector on Second End | QSFP56 - Network |
| Connector on Second End | 2 x QSFP56 Network |
| Data transfer rate | 200 Gbit/s |
| Device Supported | Network Device |
| Features | Lead-free |
| Features | Halogen Free |
| Features | Passive |
| Manufacturer | Mellanox Technologies Ltd |
| Manufacturer Part Number | MCP7H50-H01AR30 |
| Manufacturer Website Address | http://www.mellanox.com |
| Marketing Information | Mellanox® MCP7H50-H0xxRyy DAC splitter cables are high-speed cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications.
MCP7H50-H0xxEyy cables provide connectivity between system units with a 200Gb/s HDR QSFP56 port on one side and two 100Gb/s HDR100 QSFP56 ports on the other side. The cable connects the data signals from each of the 2 dual copper pairs on the single QSFP56 (pair 1&2 3&4) end to the dual copper pair of each of the QSFP56 (pair 1&2) ends on the multi-port side. Each QSFP56 port comprises an EEPROM providing product information which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the box installation experience performance and durability. |
| Product Line | LinkX |
| Product Name | LinkX QSFP56 Splitter Network Cable |
| Product Type | Network Cable |
