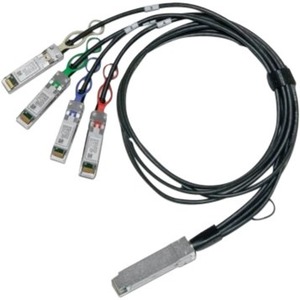

Mellanox LinkX QSFP28/SFP28 Network Cable
| $163.76 Retail $244.00 |
- 100GbE to 4x25GbE data rate
- 40GbE to 4x10GbE data rate
- SFF-8402 SFP28 compliant
- SFF-8665 QSFP28 compliant
- Operating case temperature 0-70°C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15 with Mellanox systems
- Hot pluggable
- RoHS compliant
- LSZH (Low Smoke Zero Halogen) jacket
| Buy Once $163.76 | |||
| Subscribe & Save$155.57 | |||
| Delivery Ferquency |
6.56 ft QSFP28/SFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 4 x SFP28 Network - 100 Gbit/s - Splitter Cable - 30 AWG
Product Specifications
| American Wire Gauge | 30 AWG |
| Brand Name | Mellanox |
| Cable Characteristic | Splitter Cable |
| Cable length | 6.56 ft |
| Cable type | QSFP28/SFP28 |
| Connector on First End | 1 x QSFP28 Network |
| Connector on First End | QSFP28 Network |
| Connector on Second End | 4 x SFP28 Network |
| Connector on Second End | SFP28 - Network |
| Data transfer rate | 100 Gbit/s |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Halogen Free |
| Features | Passive |
| Features | Lead-free |
| Limited Warranty | 1 Year |
| Manufacturer | Mellanox Technologies Ltd |
| Manufacturer Part Number | MCP7F00-A002R30N |
| Manufacturer Website Address | http://www.mellanox.com |
| Marketing Information | Mellanox MCP7F00-A002R30N Passive Copper Hybrid Cable ETH 100GbE to 4x25GbE QSFP28 to 4xSFP28 2m Colored 30AWG CA-N MCP7F00-A0xxRyyz cables are compliant with SFF-8402 SFP28 and SFF-8665 QSFP28 standard specifications and provide connectivity between system units with a QSFP28 port on one side and up to four different SFP28 ports on the other. The cable connects data signals from each of the 4 copper pairs on the QSFP28 end to the single pair of each of the SFP28 ends. Each QSFP28/SFP28 port comprises an EEPROM providing product information which can be read by the host system. MCP7F00-A0xxRyyz cables up to 2m support IEEE 802.3by CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.by CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L. Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability. |
| Product Line | LinkX |
| Product Name | LinkX QSFP28/SFP28 Network Cable |
| Product Type | Network Cable |
| UPC Alternates | 818283152589 |
