Asus Prime B650M-A AX Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX - Ryzen Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 8 x SATA Interfaces
Ryzen Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 8 x SATA Interfaces
| Bluetooth Standard | Bluetooth 5.2 |
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| HDMI Version | 2.1 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 6200 MHz |
| Number of M.2 Interfaces | 2 |
| Number of Memory Slots | 4 |
| Number of SATA Interfaces | 8 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 4.0 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen |
| Total Number of Onboard USB Ports | 7 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Form factor | Micro ATX |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME B650M-A AX |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design comprehensive cooling solutions and intelligent tuning options PRIME B650M-A AX provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system enabling performance tweaks to perfectly match the way you work to maximize productivity. CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher. COOLING
PRIME B650 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. VRM Heatsink and Thermal Pad
VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. Cooler by Design
Prime B650 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. Multiple Temperature Sources
Each header can dynamically reference four thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks. |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR5 SDRAM |

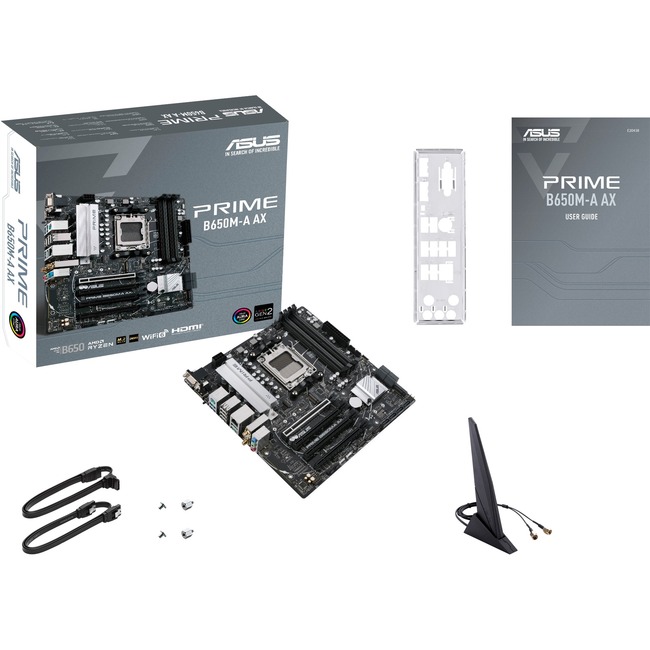

| Package Contents | - PRIME B650M-A AX Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x ASUS Wi-Fi moving antennas
- 1 x I/O Shield
- 1 x Screw Package for M.2 SSD
- 1 x User guide
|
| Product Line | Prime |
| Product Model | B650M-A AX |
| Product Name | PRIME B650M-A AX Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 0 |
| RAID Levels | 1 |
| RAID Levels | 10 |
| UPC Alternates | 195553922616 |
| Width | 9.6" |
