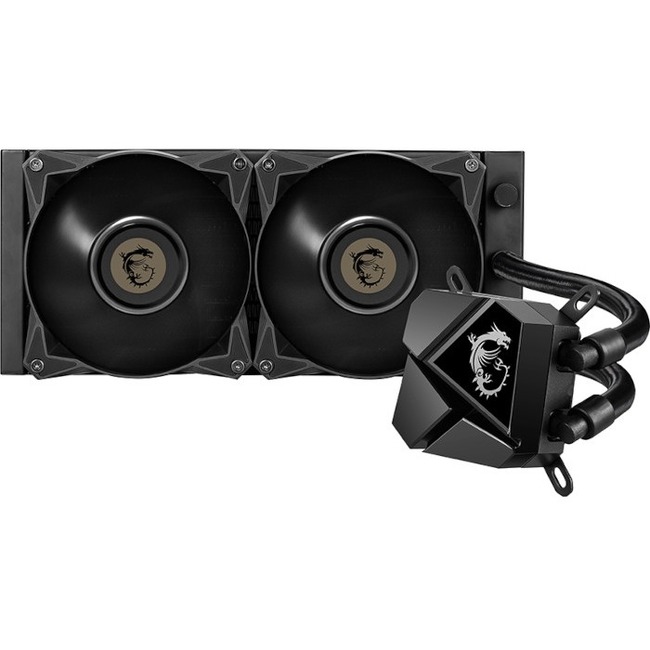

MSI MAG CORELIQUID P240 Cooling Fan/Radiator/Water Block/Pump - 4.70" Maximum Fan Diameter - 588.9 gal/min Maximum Airflow - 2000 rpm - 34.3 dB(A) Noise - Liquid Cooler Cooler - Duo Ball Bearing - Socket H3 LGA-1150, Socket H4 LGA-1151, Socket H2 LGA-1155, Socket H LGA-1156, Socket LGA-1200, Socket LGA-1700, Socket B LGA-1366, Socket R LGA-2011, Socket LGA 2011-v3, Socket R4 LGA-2066, Socket AM4, ... Compatible Processor Socket - Processor
4.70" Maximum Fan Diameter - 588.9 gal/min Maximum Airflow - 2000 rpm - 34.3 dB(A) Noise - Liquid Cooler Cooler - Duo Ball Bearing - Socket H3 LGA-1150, Socket H4 LGA-1151, Socket H2 LGA-1155, Socket H LGA-1156, Socket LGA-1200, Socket LGA-1700, Socket B LGA-1366, Socket R LGA-2011, Socket LGA 2011-v3, Socket R4 LGA-2066, Socket AM4, ... Compatible Processor Socket - Processor
| Compatible Processor Socket | Socket H4 LGA-1151 |
| Cooler Type | Liquid Cooler |
| Fan Bearing Type | Duo Ball Bearing |
| Fan Depth | 0.98" |
| Fan Speed (Max) | 2000 rpm |
| Fan Speed (Min) | 500 rpm |
| Material Details | Constructed with three layers of netted plastic tubing and a reinforced mesh exterior. |
| Maximum Air Pressure | 2.39mmH2O |
| Maximum Airflow | 588.9 gal/min |
| Noise Levels | 34.3 dB(A) |
| Radiator Depth | 1.06" |
| Radiator Height | 10.87" |
| Radiator Material | Aluminum |
| Radiator Width | 4.70" |
| Rated Current | 150 mA |
| Water Block Depth | 2.05" |
| Water Block Height | 2.78" |
| Application/Usage | Processor |
| Limited Warranty | 5 Year |
| Manufacturer | MSI |
| Manufacturer Part Number | CLP240 |
| Manufacturer Website Address | http://www.msi.com |
| Marketing Information | The MAG CORELIQUID P Series liquid coolers' water block is not the typical design you frequently see in the market today. It is modest and discreet but with great quality. It is split into four pieces of unique diamond-cut areas with three constructed in piano black and the last one featuring our proud MSI logo emblem. - The MAG CORELIQUID P Series liquid cooler provides out of box support for LGA 1700.
- The pump has been integrated into the radiator for sound dampening and noise reduction.
- A split pathway through the radiator rapidly dissipates heat cooled liquid is then pumped back into the loop.
- A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
- Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
|
| Number of Fans | 2 |
| Package Contents | - MAG CORELIQUID P240 Cooling Fan/Radiator/Water Block/Pump
- 1 x 1 to 2 Fan PWM Cable
- 1 x PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan Cable
|
| Product Family | MAG CORELIQUID P |
| Product Line | MAG CORELIQUID |
| Product Model | P240 |
| Product Name | MAG CORELIQUID P240 Cooling Fan/Radiator/Water Block/Pump |
| Product Series | P |
| Product Type | Cooling Fan/Radiator/Water Block/Pump |
| UPC Alternates | 824142259047 |
| Weight (Approximate) | 2.98 lb |
