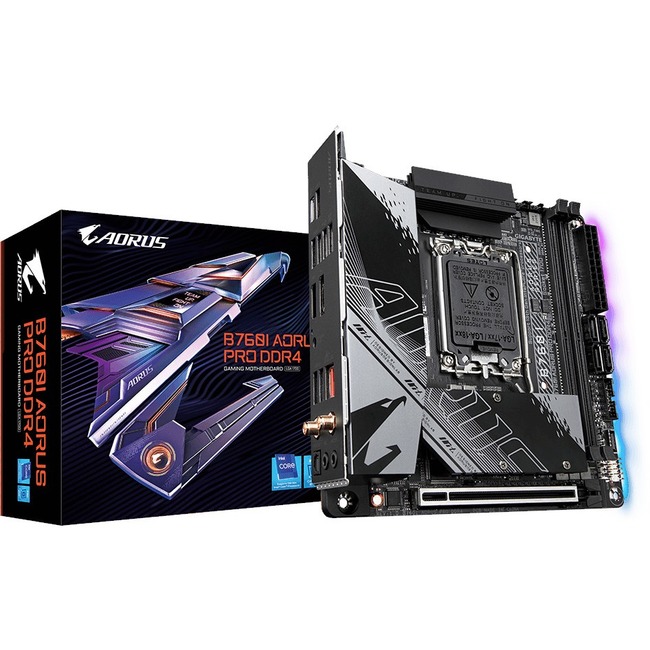

Aorus Ultra Durable B760I AORUS PRO DDR4 Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Mini ITX
| $209.54 Retail $249.99 |
- Intel® Socket LGA 1700?Support 13th and 12th Gen Series Processors
- Unparalleled Performance?Direct 8+1+1 Phases Digital VRM Solution
- Dual Channel DDR4?2*DIMMs with XMP Memory Module Support
- Next Generation Storage?2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design?Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
- Fast Networks?Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity?Front USB3.2 Gen 1 USB-C®, Rear USB-C® 10Gb/s, DP, HDMI
- RGB FUSION?Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card
| Buy Once $209.54 | |||
| Subscribe & Save$199.06 | |||
| Delivery Ferquency |
Core, Pentium Gold, Celeron Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - IEEE 802.11ax - HDMI - DisplayPort - 4 x SATA Interfaces
Product Specifications
| Bluetooth Standard | Bluetooth 5.2 |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| HDMI Version | 2.0 |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 5133 MHz |
| Number of Memory Slots | 2 |
| Number of SATA Interfaces | 4 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 4.0 |
| Processor Generation Supported | 13th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Celeron |
| S/PDIF | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Audio Channels | 7.1 |
| Brand Name | Aorus |
| Controller Type | Serial ATA/600 |
| Country of origin | China |
| Form factor | Mini ITX |
| Manufacturer | GIGABYTE Technology Inc |
| Manufacturer Part Number | B760I AORUS PRO DDR4 |
| Manufacturer Website Address | http://www.gigabyte.us |
| Marketing Information | UNPARALLELED PERFORMANCE With the fast-moving technology changes GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution latest storage standards and outstanding connectivity to enable optimized performance for gaming. To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components. PCIe 4.0 x4 M.2 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. Upgrade with the latest 2nd generation Gen4 SSD the performance is up to 7000MB/s which is up to 2x faster than PCIe3.0 SSD. GIGABYTE PerfDrive PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance power consumption and temperature according to their needs easily when using 13th gen Intel® Core™ processors. OUTSTANDING THERMAL DESIGN GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU Chipset SSD stability and low temperatures under full load application and gaming performance. 3% Cooler by implementing | 2X copper PCB Design By adopting 2X copper on PCB inner layer it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively due to it's high thermal conductivity and lower impedance. Cooling Features
CONNECTIVITY GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network storage and Wi-Fi connectivity. WIFI 6 802.11ax + BT 5 Module Wireless solution 802.11ax WIFI 6 with new dedicated 6GHz band enables gigabit wireless performance provides smooth video streaming better gaming experience few dropped connections and speeds up to 2.4Gbps. Moreover Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. |
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR4 SDRAM |
| Product Line | Ultra Durable |
| Product Name | Ultra Durable B760I AORUS PRO DDR4 (rev. 1.0) Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| RAID Levels | 10 |
| RAID Levels | 5 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Total Number of USB Ports | 8 |
| UPC Alternates | 889523035412 |
| Width | 6.7" |
