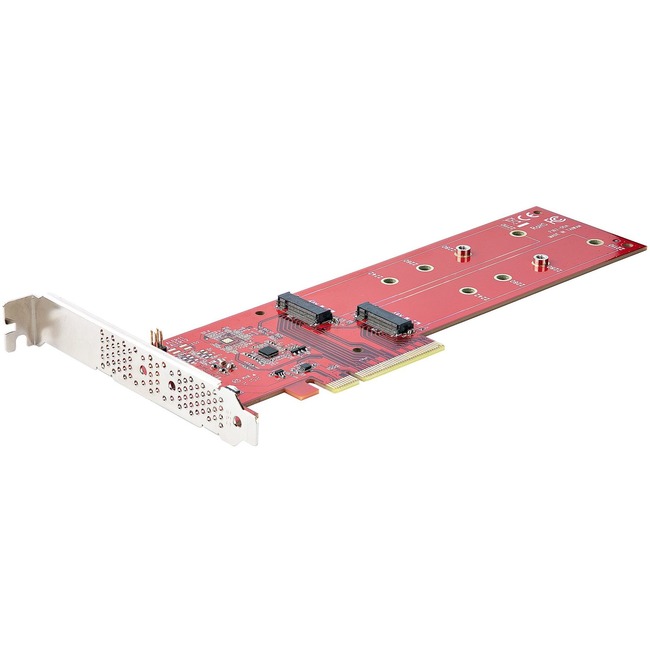

StarTech.com Dual M.2 PCIe SSD Adapter Card, x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 4.0, Up to 7.8GBps/Drive, For 2242/2260/2280/22110mm PCIe M-Key M2 SSDs, Bifurcation Required - PC/Linux Compatible
| $72.60 Retail $100.99 |
- HIGH PERFORMANCE: Install 2x PCIe M.2 SSDs (NVMe or AHCI) into a computer or server through an available x8 or x16 PCI Express 4.0 slot for ultra-fast data access, capable of reaching high performance read and write speeds up to 7.8GBps per drive
- WIDE COMPATIBILITY: This Dual M.2 PCIe SSD adapter card was extensively tested to ensure compatibility with Samsung 980 Pro, 970 EVO, 950 EVO, SM951, and other 2242/2260/2280/22110mm PCIe M-Key M.2 SSDs | Not compatible with SATA based M.2 drives
- BACKWARDS COMPATIBILITY: Compatible with PCIe 3.0 motherboards with PCIe bifurcation and an available x8 or x16 PCIe slot | PCIe bifurcation is required | Works with all workstation and server OS's such as Windows, Windows Server, and Linux
- SOFTWARE RAID FUNCTIONALITY: The M.2 PCI Express adapter enables access to your M.2 PCIe SSDs individually | With OS or 3rd party RAID software, build an array to add redundancy, higher capacity, or performance through RAID 0, RAID
| Buy Once $72.60 | |||
| Subscribe & Save$68.97 | |||
| Delivery Ferquency |
Dual M.2 PCIe SSD Adapter enables installation of 2x PCIe M.2 SSDs (NVMe/AHCI) through an x8/x16 PCI Express 4.0 slot; Read/write speeds up to 7.8GBps/drive; PCIe Bifurcation support is required; Windows/Linux; Vented full/low-profile brackets incl.
Product Specifications
| Additional Information | Drive Connectors: 2 - M.2 (NVMe M-Key PCIe x4) Host Connectors: 1 - PCI Express x8 Interface: M.2 PCIe Bus Type: PCI Express Number of Drives: 2 Drive Size: 22 mm - M.2 NVMe Compatible Drive Types: M.2 (PCIe NVMe M-Key NGFF) Drive Installation: Fixed Supported Drive Height(s): |
| Additional Information | Connector(s)
|
| Certifications & Standards |
|
| Country of origin | Taiwan |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 0.9" |
| Length | 9" |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DUAL-M2-PCIE-CARD-B |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | This Dual M.2 PCIe SSD Adapter adds two high performance PCIe M.2 SSDs (NVMe and AHCI) into the PCIe x8 or x16 slot of a desktop workstation or server. Boost System Performance Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives with read and write speeds up to 7.8GBps per drive. Access two M.2 PCIe SSDs simultaneously No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation meaning it easily integrates into any system with an available x8 or x16 PCIe slot that supports PCIe bifurcation. Utilize software RAID such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux) to build a RAID array adding redundancy or enhancing system performance. Wide Compatibility The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242 2260 2280 and 22110mm drives. The PCIe M.2 Adapter Card does not require any software or drivers meaning it works with most operating systems if the computer/motherboard supports bifurcation. Vented Brackets The included full and low-profile vented brackets increase air flow to improve heat dissipation which aids in maintaining optimal and reliable operating temperatures. The DUAL-M2-PCIE-CARD-B is backed for 2-years by StarTech.com including free 24/5 multi-lingual technical assistance |
| Package Contents |
|
| Package Contents |
|
| Packaged Quantity | 1 |
| Product color | Red |
| Product Name | PCIe to M.2 Adapter Card |
| Product Type | M.2 NVMe to PCIe Adapter |
| Product Type | M.2 to PCI Express Adapter |
| UPC Alternates | 065030895620 |
| Weight (Approximate) | 2.61 oz |
| Width | 4" |
