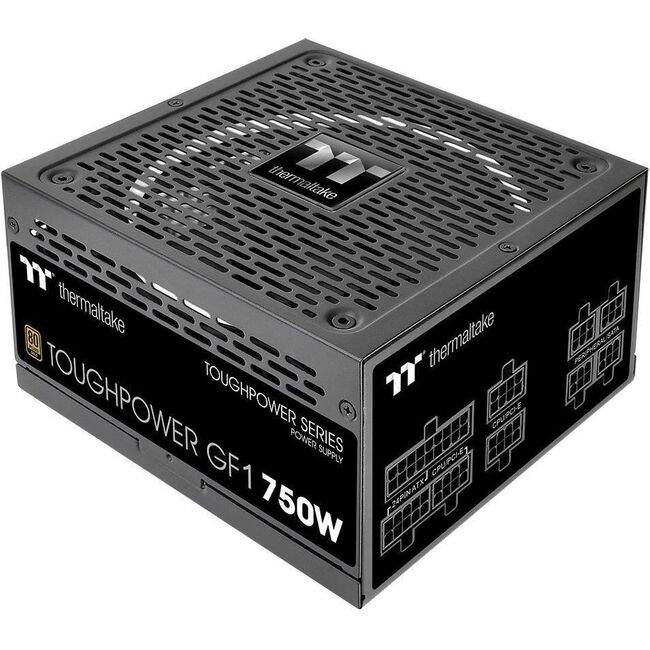

Thermaltake ToughPower GF1 TTP-750AH3FCG Power Supply
| $112.54 |
| Buy Once $112.54 | |||
| Subscribe & Save$106.91 | |||
| Delivery Ferquency |
Internal - 120 V AC, 230 V AC Input - 3.3 V DC @ 22 A, 5 V DC @ 22 A, 12 V DC @ 62.5 A, 12 V DC @ 300 mA, 5 V DC @ 3 A Output - 750 W - 1 +12V Rails - 1 Fan(s) - 90% Efficiency
Product Specifications
| Specification Compliance | ATX12V/EPS12V |
| Brand Name | Thermaltake |
| Country of origin | China |
| Depth | 6.3" |
| Efficiency | 90% |
| Environmental Certification | 80 Plus Gold |
| Environmentally Friendly | Yes |
| Form factor | Internal |
| Height | 3.4" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Limited Warranty | 10 Year |
| Manufacturer | Thermaltake Technology Co. Ltd |
| Manufacturer Part Number | PS-TPD-0750FNFAGU-1 |
| Manufacturer Website Address | http://www.thermaltakeusa.com |
| Marketing Information | The fully modular Toughpower GF1 series is available in 650W - 850W models and built to deliver 80 PLUS Gold efficiency. The series features a 140mm hydraulic bearing fan Japanese capacitors and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C while near silent operation and reliable performance are guaranteed. With an ample 10-year warranty the Toughpower GF1 is able to satisfy the market where PC enthusiasts are looking for a premium power supply with all the latest features. Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality. Ultra Quiet 140mm Hydraulic Bearing Fan Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation. ?30mV Low Ripple Noise All ripples are lower than 30mV on +12V +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer. Extremely Strict Voltage Regulation ?±2% The voltage regulation more strict than Intel's standard ±5% for major rails and ±10% for -12V is set to no more than ±2% for major rails to meet the highest performance. Fully Modular Low-Profile Flat Cable Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier reduces clutter and increases airflow inside the chassis. Premium Japanese 105°C/221°F Capacitors Providing great durability as well as offering the highest stability while remaining reliable. High Amperage Single +12V Rail Powerful single +12V rail ensures a stable and reliable supply to other PC components. 80 PLUS Gold Certified and Intel C6/C7 States Ready Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel's processors to achieve maximum energy saving. |
| Number of Fans | 1 |
| Output power | 750 W |
| Output voltage | 5 V DC @ 3 A |
| Output voltage | 5 V DC @ 22 A |
| Output voltage | 12 V DC @ 62.5 A |
| Output voltage | 12 V DC @ 300 mA |
| Output voltage | 3.3 V DC @ 22 A |
| Product Line | ToughPower GF1 |
| Product Model | TTP-750AH3FCG |
| Product Name | ToughPower GF1 TTP-750AH3FCG Power Supply |
| Product Type | Power Supply |
| UPC Alternates | 841163006573 |
| Width | 5.9" |
