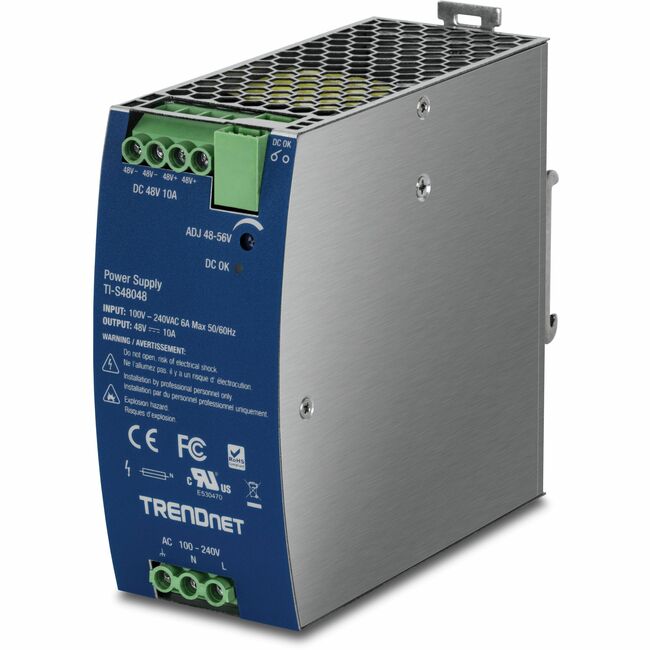

TRENDnet 480W, 48V DC, 10A AC to DC DIN-Rail Power Supply with PFC Function, TI-S48048 - 48V 480W Output Industrial
48V 480W Output Industrial
| Additional Information | Certifications:
- CE
- UL 508CB 60950-1
- TUV EN60950-2
|
| Country of origin | China |
| Efficiency | 94% |
| Environmental Certification | China RoHS |
| Environmentally Friendly | Yes |
| Form factor | DIN Rail |
| Height | 3" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Length | 10" |
| Limited Warranty | 3 Year |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-S48048 |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | - Industrial power supply with integrated DIN-rail mount
- Provides up to 480W of power (48V DC 10A)
- High efficiency 94% and low power dissipation
- 150% peak load capability
- Built-in active Power Factor Controller (PF > 0.94)
- Cooling by free air convection
- Protections: Short circuit overload over voltage over temperature
- UL 508 approved
- Built-in DC OK relay contact
- 100% full load burn-in test
- -25° - 70° C (-13° - 158° F) operating temperature range
TRENDnet's AC to DC Industrial DIN-Rail Power Supply with PFC Function model TI-S48048 supplies up to 480W (48V DC 10A) of power to industrial equipment such as PoE switches network cameras and WiFi access points. This DIN-Rail power supply comes with active PFC an integrated DIN-rail mount and overload current protection.
Industrial Applications
Power network devices for manufacturing general industrial warehousing surveillance and corporate applications.
480W Power
Provides up to 480W (48V DC 10A) of power for PoE devices such as switches network cameras and access points.
Operating Temperature
Designed for industrial environments with an operating temperature range of -25° - 70° C (-13° - 158° F).
PACKAGE CONTENTS - TI-S48048 (Mean Well SDR-480-48)
More from the Manufacturer |
| Marketing Information | - Industrial power supply with integrated DIN-rail mount
- Provides up to 480W of power (48V DC 10A)
- High efficiency 94% and low power dissipation
- 150% peak load capability
- Built-in active Power Factor Controller (PF > 0.94)
- Cooling by free air convection
- Protections: Short circuit overload over voltage over temperature
- UL 508 approved
- Built-in DC OK relay contact
- 100% full load burn-in test
- -25° - 70° C (-13° - 158° F) operating temperature range
TRENDnet's AC to DC Industrial DIN-Rail Power Supply with PFC Function model TI-S48048 supplies up to 480W (48V DC 10A) of power to industrial equipment such as PoE switches network cameras and WiFi access points. This DIN-Rail power supply comes with active PFC an integrated DIN-rail mount and overload current protection.
Industrial Applications
Power network devices for manufacturing general industrial warehousing surveillance and corporate applications.
480W Power
Provides up to 480W (48V DC 10A) of power for PoE devices such as switches network cameras and access points.
Operating Temperature
Designed for industrial environments with an operating temperature range of -25° - 70° C (-13° - 158° F).
PACKAGE CONTENTS - TI-S48048 (Mean Well SDR-480-48)
More from the Manufacturer |
| Output power | 480 W |
| Output voltage | 48 V DC @ 10 A |
| Product Condition | New |
| Product Name | 48V 480W Output Industrial |
| Product Type | Power Supply |
| UPC Alternates | 710931161441 |
| Weight (Approximate) | 3.53 lb |
| Width | 8" |
