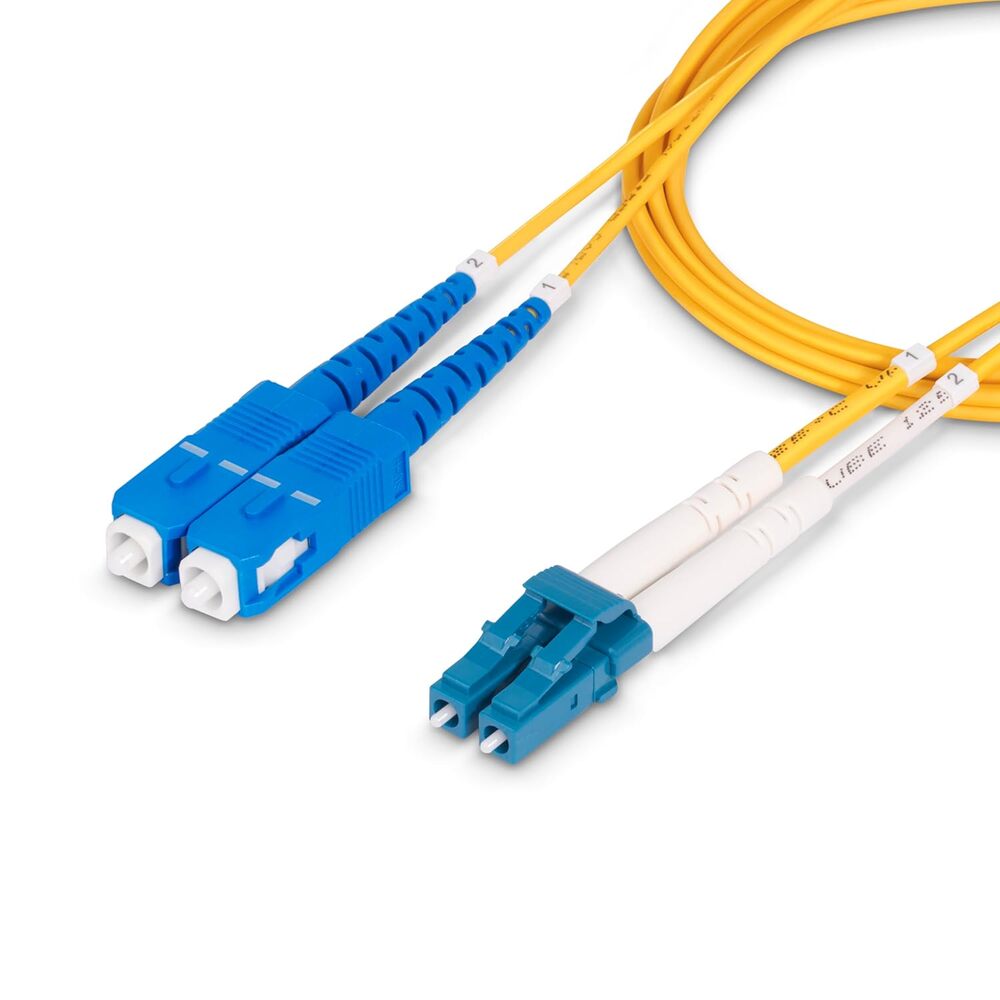

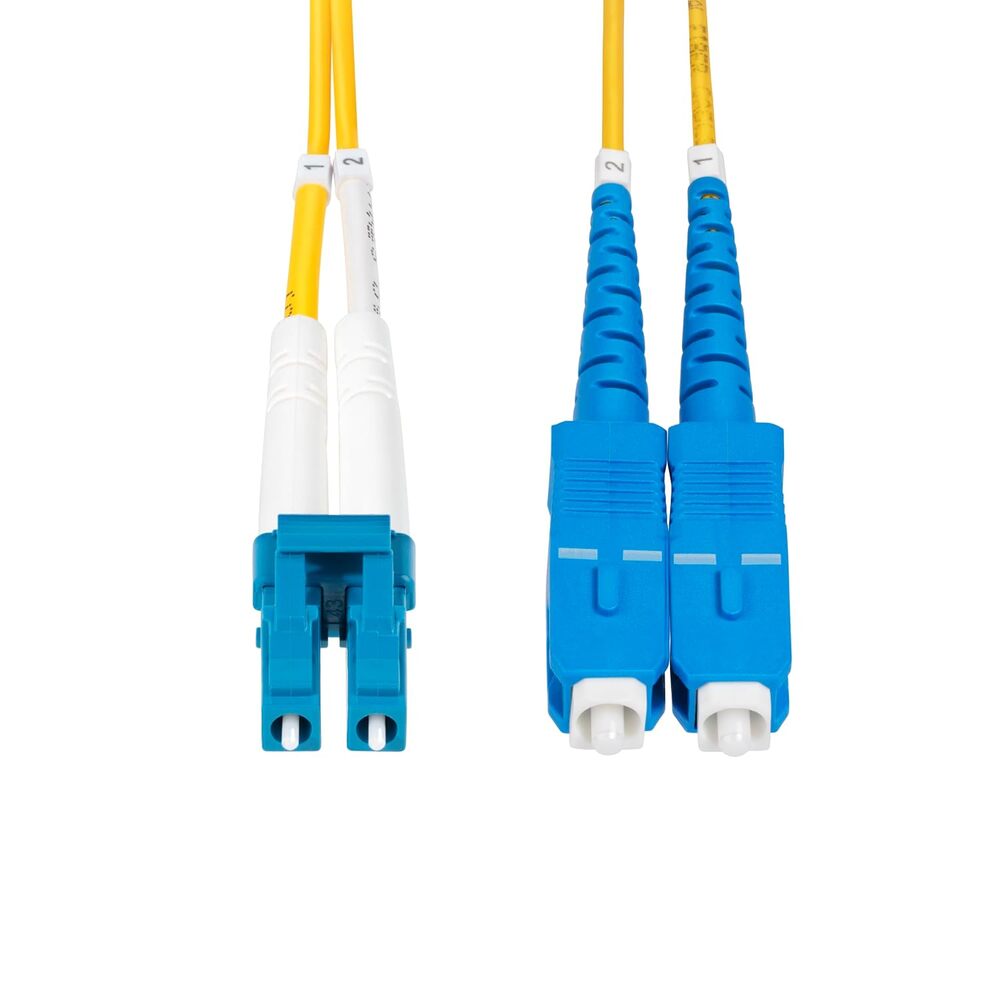

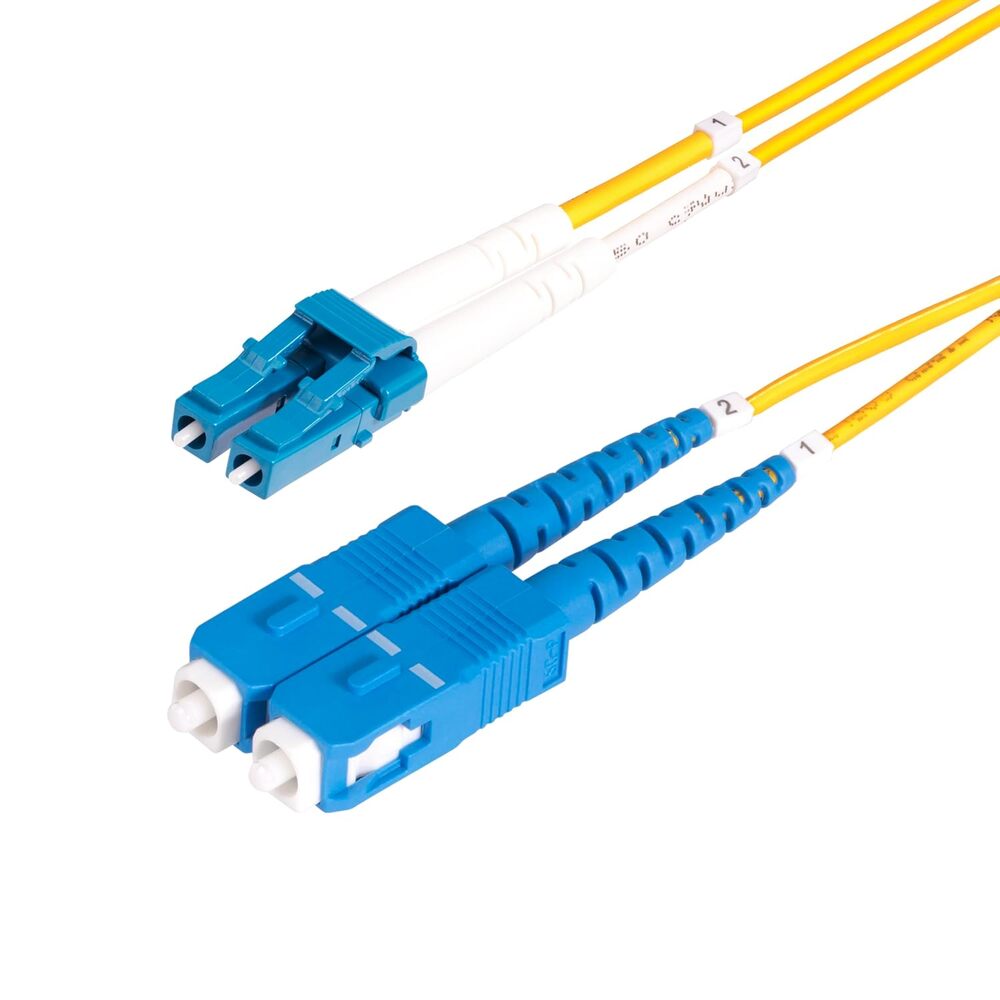

StarTech.com 3m (9.8ft) LC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125, 100G, LSZH Fiber Jumper Cord

New
StarTech.com 3m (9.8ft) LC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125, 100G, LSZH Fiber Jumper Cord
0 Review(s) Item: SMLCSC-OS2-3M | By: StarTech.com | In Stock
$18.44 Retail $20.49
  • OS2 FIBER CABLE: Single Mode OS2 Fiber Cable is immune to EMI and optimized for 100Gbps networks; Coarse Wavelength Division Multiplexing (CWDM) enables extended 1260-1625nm wavelength support for greater channel isolation over long distances

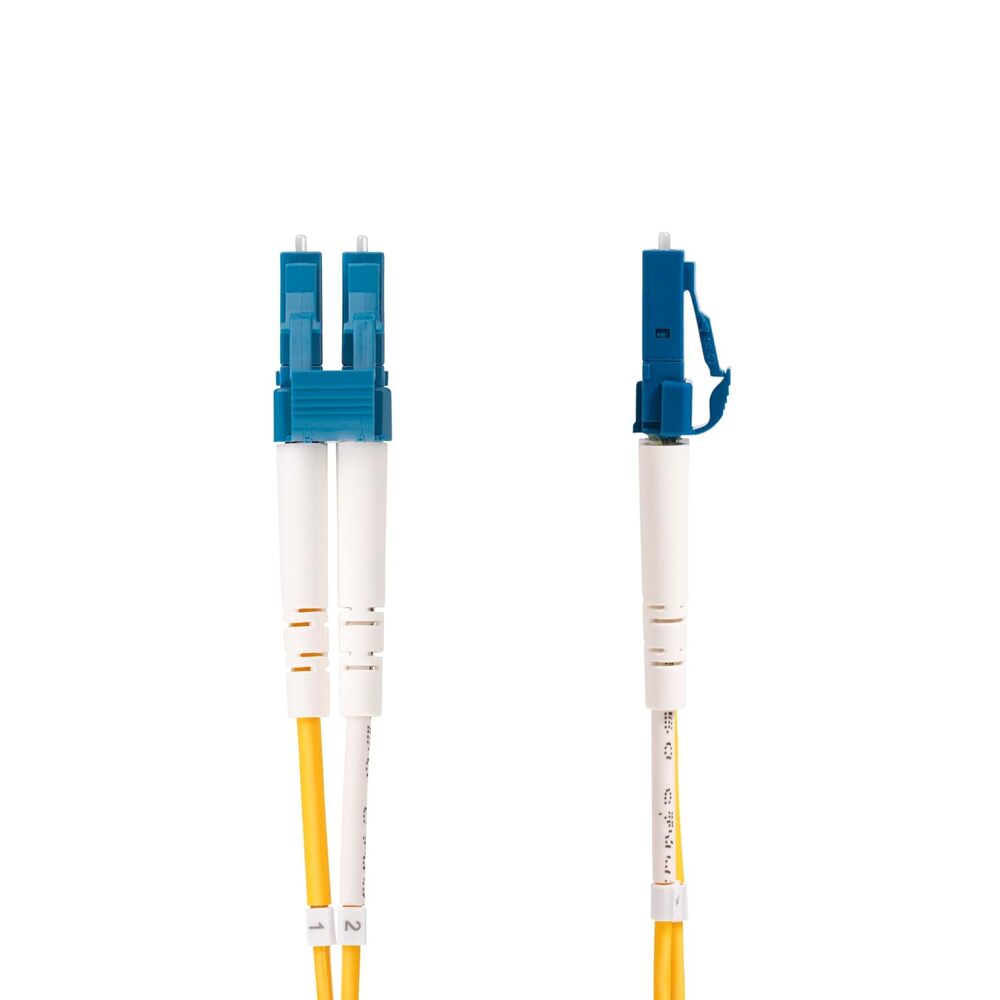

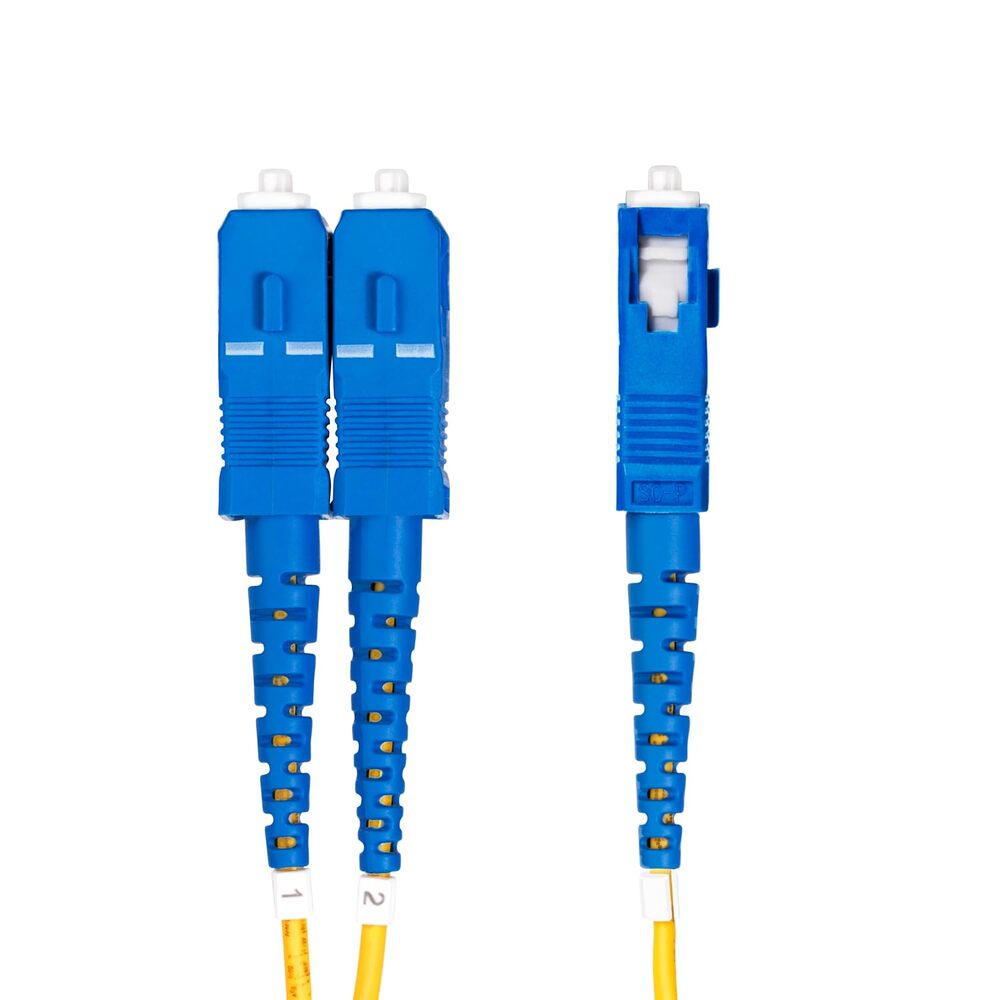

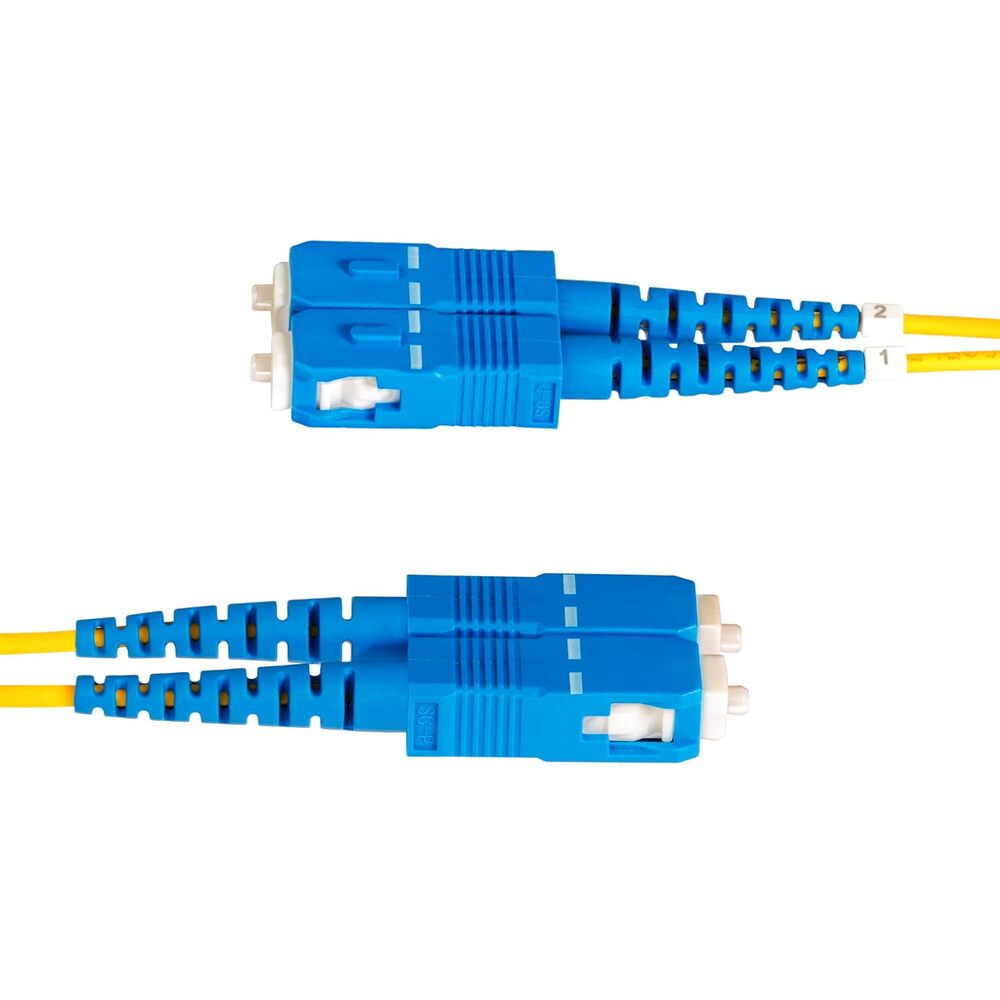

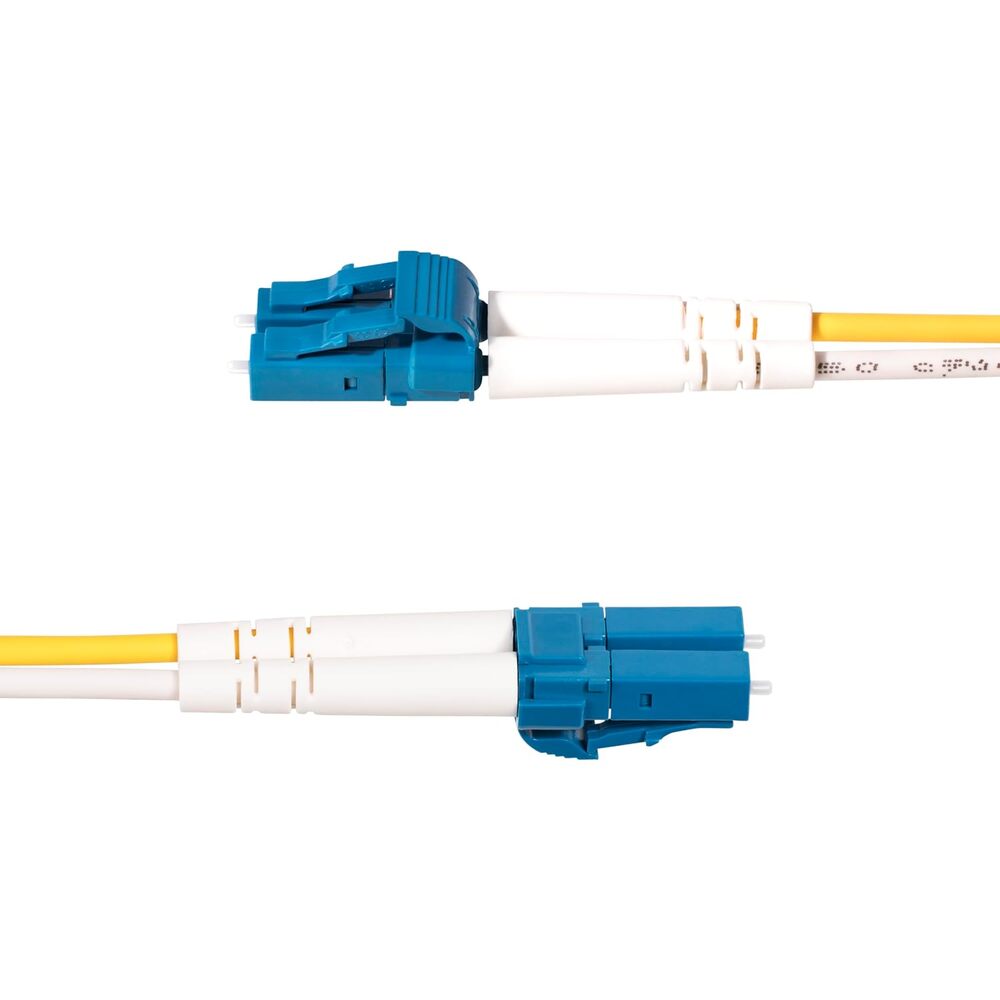

  • QUALITY CONSTRUCTION: LC/SC-UPC ends for improved return loss over PC polish; Numbered connectors to indicate polarity; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 10mm
  • SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 0.35dB/km outperforms industry standards
  • COMPATIBILITY: Single Mode Fiber Patch Cord supports 100G networks; Backward compatible with OS1; High micro-bend resistance facilitates tight bends in complex installations; Ideal for connecting between servers/switches and data center equipment
  • SPECS: 3m (9.8 foot); OS2 Single Mode; LC/SC (UPC) Duplex; 100Gbps; 9/125um; 1260-1625nm Laser Optimized; Insertion Loss: ?0.3dB; Return Loss: ?55dB; Cable OD: 2mm; Bend Radius: 10mm (0.39in) loaded/unloaded
More Details

100% Quality & Money Back Guaranteed!


You may be also interested
OS2 LC/SC Single Mode Duplex Fiber Optic Patch cable facilitates reliable connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, enhancing signal quality and performance capacity over OS1 cables. The bend-insensitive fiber and molded strain reliefs support cable runs requiring micro/macro bends while maintaining low attenuation. The OS2 patch cable is ideal for 1260-1625nm laser-optimized sources.?Backward?compatible with 9/125 fiber equipment, ensuring a reliable connection with legacy?LANs. Housed in a Low-Smoke Zero-Halogen (LSZH) flame retardant jacket, this SM duplex fiber optic cable?ensures?minimal smoke, toxicity, and corrosion when exposed to extreme sources of heat?or in?the event of a fire.?Capable of operating in a wide range of environments, including industrial settings, central offices, and schools, as well as residential settings where building codes are a consideration. Each OS2 fiber cable is also individually tested for for insertion loss and attenuation that meets or exceeds the ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards, for guaranteed compatibility and 100% reliability. This OS2 Fiber Patch Cable is backed for life, including free lifetime multi-lingual technical assistance.

Product Specifications

BrandStarTech.com
Compatible Phone ModelsNo Compatible Phone Models
Customer Package TypeSealed Anti-Static Bag
Global Trade Identification Number00065030903295
Included Components1 3m OS2 Single Mode Fiber Optic Cable - LC to SC
Indoor Outdoor UsageIndoor Outdoor
Item Length9.8 Feet
Item ShapeRound
Item Weight4.54 g
Model NameSMLCSC-OS2-3M
Number of Items1
Other Special Features of the ProductData Transfer
Outer MaterialLow-Smoke Zero-Halogen
Outer MaterialLow-Smoke Zero-Halogen
Part NumberSMLCSC-OS2-3M
Recommended Uses For ProductData transmission server connections high-speed networking fiber-channel applications
Special FeatureData Transfer
Specification MetIec60703-2-50 Type B1.3/B6.a1
Unit Count1.0 Count
UPC065030903295
Warranty DescriptionLifetime
Brand NameStarTech.com
Cable typeFiber Optic
Cable typeFiber Optic
ColorYellow
Compatible DevicesServer
Compatible DevicesServer
Connectivity technologyFiber Optic
Connector genderMale-to-Male
Connector TypeLc Duplex Sc Duplex
Connector TypeLc Duplex Sc Duplex
Data transfer rate10 Gigabits Per Second
Frequency10 GHz
ModelSMLCSC-OS2-3M

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
