| Transmitter Depth | 4.57" |
| Transmitter Height | 1.06" |
| Transmitter Weight (Approximate) | 1.32 lb |
| Transmitter Width | 7.48" |
| Brand Name | Kramer |
| Connectivity technology | Wired |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Desktop |
| Form factor | Ceiling Mount |
| Form factor | Rack-mountable |
| Graphics Modes | 4K UHD |
| Limited Warranty | 7 Year |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | EXT3-XR-TR |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | EXT3-XR-TR is a high-performance extended-reach HDBaseT 3.0 extender for 4K60Hz (4:4:4) HDMI USB Ethernet RS-232 and IR signals over twisted pair flexibly set as transmitter-side or receiver-side device. EXT3-XR-TR transmitter-side converts all input signals into the transmitted HDBaseT 3.0 signal. EXT3-XR-TR receiver-side receives the HDBaseT 3.0 signal and converts it back into the original input signals. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution FEATURES High Performance Standard Extender - Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. TP-600TRxr is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance use recommended Kramer cables HDMI Signal Extension - HDCP 2.3 EDID and CEC signals are passed through from the source to the display. Supports HDR10 deep color x.v.Color™ lip sync HDMI uncompressed audio channels Dolby TrueHD DTS-HD 2K 4K and 3D as specified in HDMI 2.0 HDMI Mirroring - Transmitter-side extender mirrors input HDMI signal to loop output port for connecting a local monitor or an additional unit in a daisy chain Flexible USB 2.0 Extension - An active USB host is connected to the extender at either the transmitter or receiver sides. USB 2.0 signals are extended between the extender transmitter and receiver sides enabling connection of the active USB host to both local and remote USB devices such as camera and audio devices or HID (Human Interface Devices) mouse or keyboard devices Multi-channel Audio Transmission - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound Ethernet Extension - Ethernet interface data flows in both directions allowing extension of up to 1 Gbps Ethernet connectivity for LAN communication and device control Bidirectional RS-232 Extension - Serial interface data flows in both directions allowing data transmission and device control Bidirectional Infrared Extension - IR interface data flows in both directions allowing remote control of peripheral devices located at either end of the extended line Cost-effective Maintenance - Status LED indicators for HDMI Loop HDBT and USB active host ports facilitate easy local maintenance and troubleshooting Easy and Elegant Installation - MegaTOOLS™ fan-less enclosure for dropped-ceiling mounting or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter |
| Maximum Operating Distance | 328.08 ft |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 4 |
| Package Contents |
|
| Product Line | MegaTOOLS |

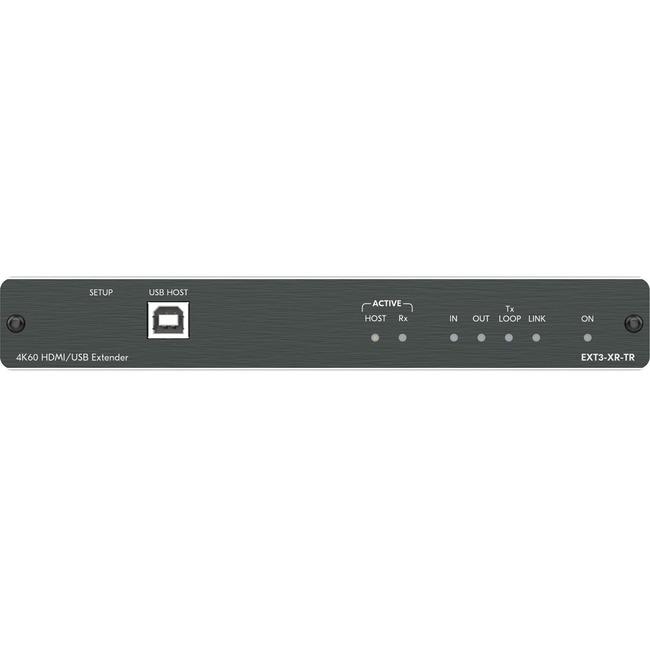

| Product Name | MegaTOOLS EXT3-XR-TR Video Extender Transmitter |
| Product Type | Video Extender Transmitter |
