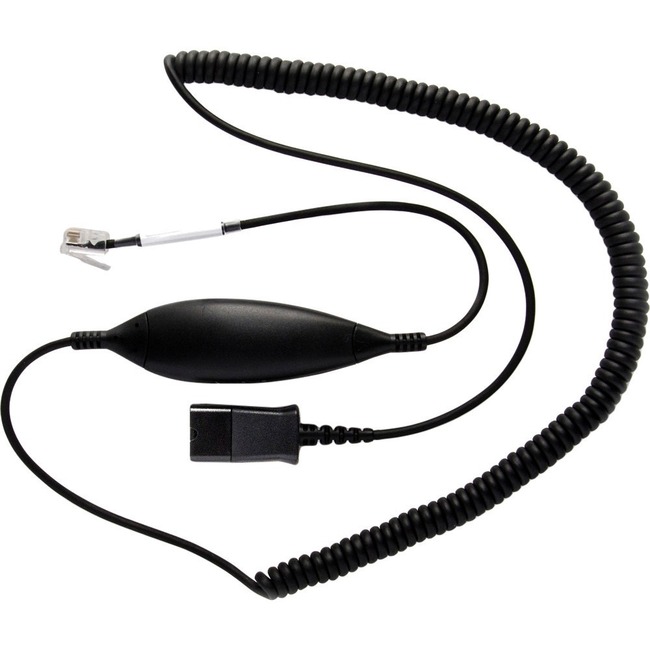

JPL BL-10+P Quick Disconnect/RJ-11 Phone Cable - 6.56 ft Quick Disconnect/RJ-11 Phone Cable for Headphone, Phone, Telephone, Headset - First End: 1 x RJ-11 Phone - Second End: 1 x Quick Disconnect
6.56 ft Quick Disconnect/RJ-11 Phone Cable for Headphone, Phone, Telephone, Headset - First End: 1 x RJ-11 Phone - Second End: 1 x Quick Disconnect
| Connector on First End Details | 1 x RJ-11 Phone |
| Connector on Second End Details | 1 x Quick Disconnect |
| Connector Type on First End | RJ-11 Phone |
| Connector Type on Second End | Quick Disconnect |
| Brand Name | JPL |
| Cable length | 6.56 ft |
| Cable type | Quick Disconnect/RJ-11 |
| Compatibility | JPL and Plantronics QD Corded Headsets |
| Device Supported | Phone |
| Device Supported | Headset |
| Device Supported | Telephone |
| Device Supported | Headphone |
| Features | Coiled |
| Manufacturer | James Products Ltd |
| Manufacturer Part Number | 575-099-009 |
| Manufacturer Website Address | http://www.jpltele.com |
| Marketing Information | Quick Disconnect cable required for telecom headsets to enable direct connection to most standard telephone system handsets. PRODUCT FEATURES - Universal Connection Lead
- Fits most standard RJ11 Headset sockets
- 80-200cm coiled cable
- Compatible with JPL and Plantronics QD corded headsets
- The Plantronics compatible Quick Disconnect (QD) capability allows the headset to detach without losing the call
- EAN: 5060126951858
The BL-10+P Geni lead is perfect for offices where there is more than one type of phone system in use - the BL-10+P Geni lead comes with a compatibility switch which allows you to adjust to the correct type of handset quickly rather than having to have two separate leads for your phones. Simple 8-position slide adjustment - no need for a user manual. Simply slide the switch until a dial tone is heard. Standard RJ11 connector connects to virtually all telephones using a standard modular plug. Standard Plantronics compatible Quick Disconnect plug to headset. Works with any JPL or Plantronics headset equipped with Quick Disconnect. Built-in low-current microphone amplifier enables perfect operation with telephones that require extra signal gain. AC Output Voltage: 30mV
Insertion Gain: 11.5dB Nom Min 10.5dB Max 12.5dB
Bias Voltage: 1.58v DC Nom Min 1.53v DC Max 1.76v DC
Bias Voltage: 1.49v DC Nom Min 1.38v DC Max 1.71v DC |
| Product Model | BL-10+P |
| Product Name | BL-10+P Quick Disconnect/RJ-11 Phone Cable |
| Product Type | Phone Cable |
