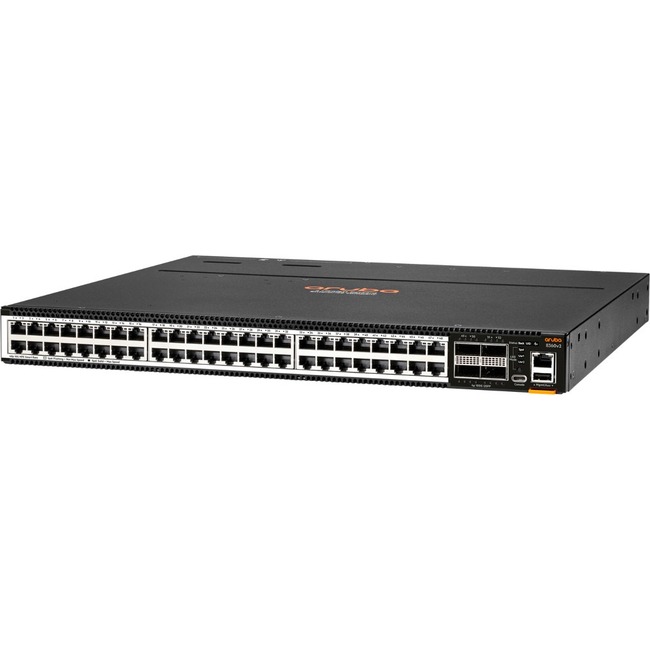

Aruba 8360-48XT4CV2 Ethernet Switch - Manageable - 10 Gigabit Ethernet, 100 Gigabit Ethernet - 10GBase-T, 100GBase-X - TAA Compliant - 3 Layer Supported - Modular - 500 W Power Consumption - Optical Fiber, Twisted Pair - 1U High - Rack-mountable, Cabinet Mount, Surface Mount
Manageable - 10 Gigabit Ethernet, 100 Gigabit Ethernet - 10GBase-T, 100GBase-X - TAA Compliant - 3 Layer Supported - Modular - 500 W Power Consumption - Optical Fiber, Twisted Pair - 1U High - Rack-mountable, Cabinet Mount, Surface Mount
| Compatible Rack Unit | 1U |
| Number of Power Supplies Supported | 2 |
| Number of Total Expansion Slots | 4 |
| Brand Name | Aruba |
| Depth | 16" |
| Environmental Certification | RoHS |
| Ethernet Technology | 100 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | QSFP+ |
| Expansion Slot Type | QSFP28 |
| Form factor | Rack-mountable |
| Form factor | Surface Mount |
| Form factor | Cabinet Mount |
| Frequency | 63 Hz |
| Frequency | 47 Hz |
| Height | 1.7" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Layer Supported | 3 |
| Manageable | Yes |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R9G13A#ABA |
| Manufacturer Website Address | http://www.hpe.com |
| Marketing Information | The Aruba CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application security and scalability demands of the mobile cloud and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses as well as virtual and highly dynamic data center environments. They provide up to 3.6Tbps of capacity with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5 5 Gbps) 10Gbps 25Gbps 40Gbps 50 Gbps and 100Gbps.
The 8360 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100GbE (QSFP+/ QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE or from 10GbE/40GbE uplinks to 50/100GbE ports. In addition the 48 and 32 x 25G port 8360 models support low- density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains. And MACsec with 2 x40/100G port with the 48x25 8360 model PRODUCT DIFFERENTIATORS
The Aruba CX 8360 switch series is based on ArubaOS-CX a modern database-driven operating system that automates and simplifies many critical and complex tasks. The enhanced capabilities of ArubaOS-CX provide a unique set of differentiators for campus and data center switching.
Modular Architecture with native cloud-native ArubaOS-CX
ArubaOS-CX is built on a modular Linux architecture with OVSDB providing the following unique capabilities: ? - Safe and powerful access to all state at all times allows unique visibility and analytics capabilities.
- REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services
- Supports Aruba Fabric Composer - a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.
- Continual state synchronization provides superior fault tolerance and high availability ?
- All software processes communicate with the database rather than with each other ensuring high stability with minimal inter-process communication
|
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10GBase-T |
| Network Technology | 100GBase-X |
| Networking standards | IEEE 802.1Qbb |
| Networking standards | IEEE 802.3an |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.3bj |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.1AEbn |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3cc |
| Networking standards | IEEE 802.3by |
| Networking standards | IEEE 802.3ae |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.1ak |
| Networking standards | IEEE 802.1t |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.3cd |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.3ba |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.1v |
| Networking standards | IEEE 802.1AX |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.1AEbw |
| Networking standards | IEEE 802.1ae |
| Port/Expansion Slot Details | 48 x 1G/10GBase-T Network Slot |
| Port/Expansion Slot Details | 4 x 100 Gigabit Ethernet Expansion Slot |
| Power consumption | 500 W |
| Power source | Power Supply |
| Product color | Black |
| Product Model | 8360-48XT4CV2 |
| Product Name | 8360-48XT4CV2 Ethernet Switch |
| Product Series | CX 8360 |
| Product Type | Ethernet Switch |
| UPC Alternates | 190017597751 |
| Weight (Approximate) | 18.85 lb |
| Width | 17.4" |
