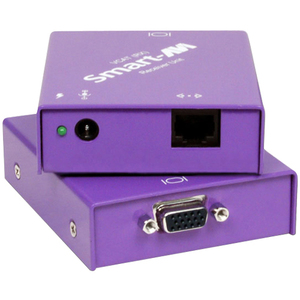

SmartAVI VCT-100 Video Console/Extender - 1 - XVGA, VGA, XGA, UXGA - 1000ft
1 - XVGA, VGA, XGA, UXGA - 1000ft
| Network (RJ-45) | Yes |
| Number of Output Devices Supported | 1 |
| Product Material | Metal |
| Transmitter Depth | 3.44" |
| Transmitter Height | 0.85" |
| Transmitter Weight (Approximate) | 4 oz |
| Transmitter Width | 2.81" |
| Brand Name | SmartAVI |
| Certifications & Standards | EIA 56A |
| Connectivity technology | Wired |
| Country of origin | United States |
| Input voltage | 5 V DC |
| Limited Warranty | 1 Year |
| Manufacturer | Smart Audio Video Innovation |
| Manufacturer Part Number | VCT-100S |
| Manufacturer Website Address | http://www.smartavi.com |
| Marketing Information | SmartAVI's VCT-100 extender boosted VGA signal range via a single Category 5 Unshielded Twisted Pair (UTP) cable up to 1000 feet from a signal source. Powerful VGA Video Signal Extension The VCT-100 is a CAT5 VGA extender system composed of one transmitter (TX) and one receiver (RX) unit. Users can place the units up 1000 feet apart without loss to image quality or connectivity performance making it an ideal solution for extending many kinds of AV set-ups. VGA Extension for Any AV Environment The VCT-100 makes a great addition in airports entertainment venues retail spaces office buildings educational facilities medical campuses and more. Its economical CAT5 cabling adds tremendous value for cost-conscious system optimizers and its plug-and-play design makes it both easy to use and install!
Features: - Uses easy to install inexpensive CAT5/5e/6/7/8.
- Output reaches up to 1000 feet (300m).
- Supports high resolution clear video up to 1920x1200.
- 300 MHz Bandwidth.
- Sends high-resolution UXGA and power signals over single CAT5.
- Compatible with VGA XGA Sun MAC and SGI signals.
- Sync Format / Polarity Preservation.
- High ground loop immunity.
- Built-in lightning power surge and transient protection.
- Designated trimmer in the remote unit to compensate for cable length.
- Compact metal case enclosure
|
| Maximum Operating Distance | 1000 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents | - 1 x Transmitter
- 1 x Receiver
- CCVGAMM06 Cable
- 2 x PS5VD2A Power Supply
|
| Product Name | UXGA/Audio Point-to-Point CAT5 Extender |
| Product Type | Video Extender Transmitter/Receiver |
| Thickness | 3.4" |
| Twisted Pair Cable Standard | Category 8 |
| UPC Alternates | 638936942851 813280011174 |
