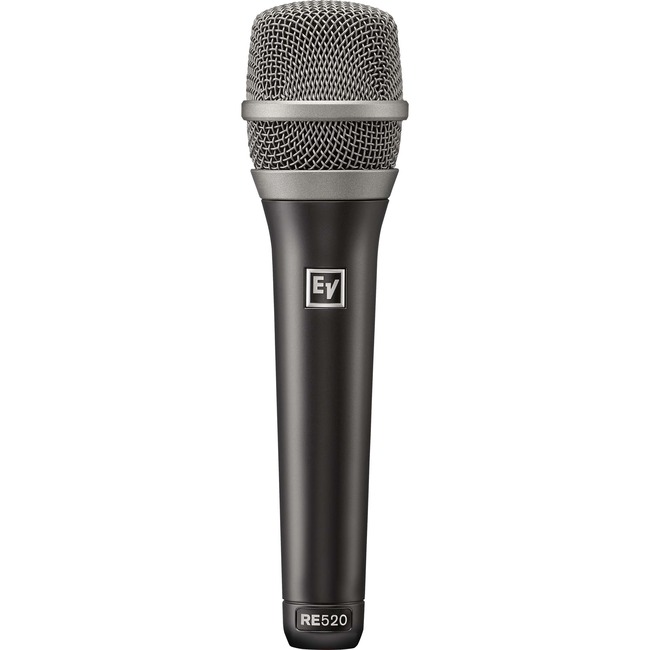

Electro-Voice RE520 Wired Condenser Microphone - Black Polyurethane Paint - 40 Hz to 20 kHz - 200 Ohm - Super-cardioid - Shock Mount, Handheld - 3-Pin XLR
40 Hz to 20 kHz - 200 Ohm - Super-cardioid - Shock Mount, Handheld - 3-Pin XLR
| Polar Pattern | Super-cardioid |
| Product Material | Cast Zinc |
| Product Material | Steel |
| Application/Usage | Vocals |
| Brand Name | Electro-Voice |
| Connectivity technology | Wired |
| Host interface | 3-Pin XLR |
| Impedance | 200 Ohm |
| Length | 7.6" |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | RE520 |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information | The RE520 is a premium-grade high-performance condenser supercardioid vocal microphone. Designed to reveal the exceptional detail and vivid clarity synonymous with condenser elements it elegantly delivers the lyrical finesse required for expressive vocal performances while controlling off-axis sound from near-by sources.
The sonic signature is detailed full and vivid with a warm and clear low end natural and present midrange and an open crisp and detailed high end. The supercardioid pattern provides excellent acoustic isolation. Maximum feedback rejection occurs when a stage monitor position is at either 225° or 125° offaxis to the element. This pattern also allows for a cleaner mix due to its rejection of off-axis sound. The multi-stage pop filter consists of two layers of dense foam separated by air which attenuates wind velocity caused by breath and windblasts.
The high-pass filter has two positions (see drawing). The flat position delivers the full frequency band pass of the capsule. The high-pass position attenuates frequencies below 150 Hz.
The internal shock mount isolates the microphone element from vibration and guards against handling noise. |
| Maximum Frequency Response | 20 kHz |
| Microphone Technology | Condenser |
| Microphone Type | Shock Mount |
| Microphone Type | Handheld |
| Minimum Frequency Response | 40 Hz |
| Package Contents | - RE520 Condenser Supercardioid Vocal Microphone
- 1 x Gig bag
- 1 x Stand Clip
- 1 x Engineering Datasheet
- 1 x Warranty and Product Documentation Information Card
|
| Packaged Quantity | 1 |
| Product color | Black Polyurethane Paint |
| Product Name | RE520 Condenser Supercardioid Vocal Microphone |
| Product Type | Microphone |
| UPC Alternates | 800549873611 |
| Weight (Approximate) | 11.70 oz |
