Black Box DKM Compact Switch Kit - CATx, DVI, USB, RS-232, Audio, USB 2.0 - 460 ft Range - 1920 x 1200 Maximum Video Resolution x USB x DVI - 120 V AC, 240 V AC Input Voltage
460 ft Range - 1920 x 1200 Maximum Video Resolution x USB x DVI - 120 V AC, 240 V AC Input Voltage
| Additional Information | This product works with: - Spare Power Supply 5VDC/3A ACXMODH21R - 2 Slot Ext Chassis
- Redundant Power Supply 5VDC/5A ACXMODH4-R2 - 4 Slot Ext Chassis
- 19"/1U Rackmount KIT for Combining DKM Extender Chassis'
- 6ft. RS232 Serial Cable Shielded CM Molded DB9 M/F w/Thumbscrews
- USB 2.0 Cable Type A Male to Type B Male Black 6-ft.
|
| Brand Name | Black Box |
| Connectivity technology | Wired |
| Country of origin | Germany |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Input voltage | 240 V AC |
| Input voltage | 120 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Limited Warranty | 2 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACX1K-14A-C |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | - Maximum distance over solid CATx is 460 feet (140 m).
- Transmits RS-232 serial and analog audio signals.
- Compact housing enables high-density mounting within 19" racks (up to four devices in 1U).
- Chassis range in size from 2 4 6 or 21 ports to 48 80 160 and 288 ports.
- The compact extenders also work in standalone point-to-point KVM extension without a DKM switch.
- Also available in fiber optic models.
Part of the DKM FX and DKM FX Compact (FXC) HD Video and Peripheral Matrix Switching System the DKM FX Compact Extenders expand the options in an already flexible extension system. DKM FX Compact transmitters and receivers extend DVI-D and USB HID and 2.0 signals.
You can combine extender modules depending your particular needs. These DKM FX components are part of a modular systems. Compact and modular extenders are fully compatible with each other.
Mount the extenders on a tabletop DIN rail or 19-inch rack. Optional wallmount and rackmount kits are available. |
| Maximum Operating Distance | 460 ft |
| Maximum Video Resolution | 1920 x 1200 |

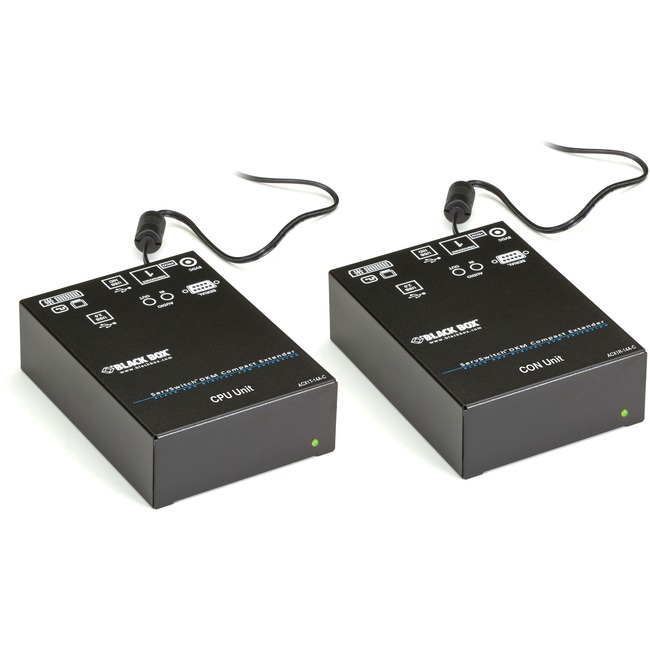

| Package Contents | - 1 x DKM Compact Transmitter
- 1 x DKM Compact Receiver
- 1 x DVI M/M cable
- 2 x USB Type A to B M/M cables
- 2 x 3.5mm audio cables M/M
- 1 x DB9 cable M/F
- 2 x Power supplies with power cords
|
| Product Name | DKM Compact Switch Kit - CATx DVI USB RS-232 Audio USB 2.0 |
| Product Series | DKM FX |
| Product Type | KVM Extender |
| UPC Alternates | 822088153337 |
