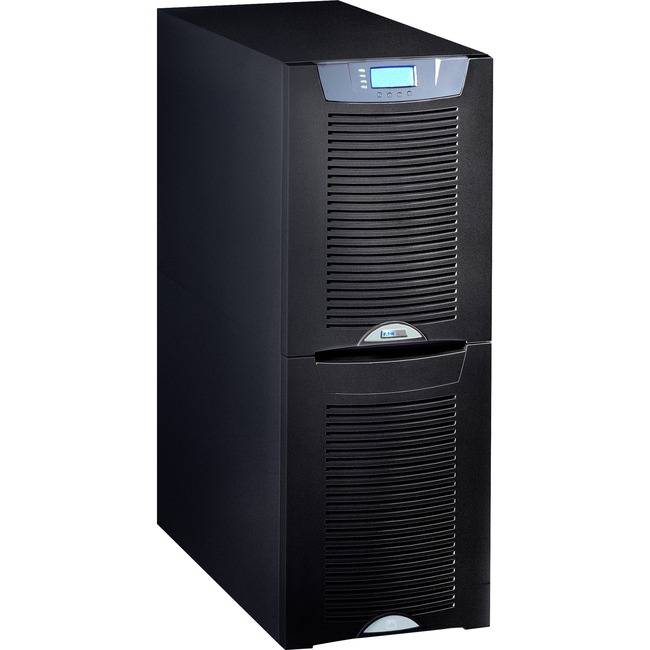

Eaton 9155 UPS Backup Power System - Tower - 4.60 Minute Stand-by - 220 V AC, 230 V AC, 240 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - 16 x NEMA 5-20R - Serial Port
Tower - 4.60 Minute Stand-by - 220 V AC, 230 V AC, 240 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - 16 x NEMA 5-20R - Serial Port
| Modular Slots | 2 x X-Slot |
| Modular Slots | 2 x X-Slot |
| Modular Slots | 2 x X-Slot |
| Output Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Receptacle Detail | 16 x NEMA 5-20R |
| Receptacle Detail | 16 x NEMA 5-20R |
| Receptacle Detail | 16 x NEMA 5-20R |
| Backup/Run Time (Full Load) | 4.60 Minute |
| Backup/Run Time (Full Load) | 4.60 Minute |
| Backup/Run Time (Full Load) | 4.60 Minute |
| Backup/Run Time (Half Load) | 13.10 Minute |
| Backup/Run Time (Half Load) | 13.10 Minute |
| Backup/Run Time (Half Load) | 13.10 Minute |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Chemistry | Sealed Lead Acid (SLA) |
| Battery Chemistry | Sealed Lead Acid (SLA) |
| Battery Chemistry | Lead Acid |
| Battery Chemistry | Lead Acid |
| Battery Chemistry | Sealed Lead Acid (SLA) |
| Brand Name | Eaton |
| Brand Name | Eaton |
| Brand Name | Eaton |
| Certifications & Standards | - IEC 62040-1
- IEC 60950-1
- IEC 62040-2
- IEC 62040-3
|
| Certifications & Standards | - IEC 62040-1
- IEC 60950-1
- IEC 62040-2
- IEC 62040-3
|
| Certifications & Standards | - IEC 62040-1
- IEC 60950-1
- IEC 62040-2
- IEC 62040-3
|
| Depth | 33.7" |
| Depth | 33.7" |
| Depth | 33.7" |
| Emergency Power OFF | Yes |
| Emergency Power OFF | Yes |
| Emergency Power OFF | Yes |
| Form factor | Tower |
| Form factor | Tower |
| Form factor | Tower |
| Height | 47.8" |
| Height | 47.8" |
| Height | 47.8" |
| Input frequency | 65 Hz |
| Input frequency | 65 Hz |
| Input frequency | 65 Hz |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Input voltage | 220 V AC |
| Input voltage | 240 V AC |
| Input voltage | 220 V AC |
| Input voltage | 240 V AC |
| Input voltage | 220 V AC |
| Input voltage | 240 V AC |
| Input voltage | 230 V AC |
| Load Capacity | 15 kVA |
| Load Capacity | 15 kVA |
| Load Capacity | 15 kVA |
| Manufacturer | Eaton Corporation |
| Manufacturer | Eaton Corporation |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | K4151300BBBB000 |
| Manufacturer Part Number | K4151300BBBB000 |
| Manufacturer Part Number | K4151300BBBB000 |
| Manufacturer Website Address | http://www.eaton.com |
| Manufacturer Website Address | http://www.eaton.com |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The Eaton 9155 UPS provides premium online backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate healthcare banking and industrial applications. Packing maximum battery runtime into a very small footprint the 9155 UPS is a complete power protection solution. The 9155 can be equipped with an integrated customizable power distribution module that includes a maintenance bypass switch. |
| Marketing Information | The Eaton 9155 UPS provides premium online backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate healthcare banking and industrial applications. Packing maximum battery runtime into a very small footprint the 9155 UPS is a complete power protection solution. The 9155 can be equipped with an integrated customizable power distribution module that includes a maintenance bypass switch. |
| Marketing Information | The Eaton 9155 UPS provides premium online backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate healthcare banking and industrial applications. Packing maximum battery runtime into a very small footprint the 9155 UPS is a complete power protection solution. The 9155 can be equipped with an integrated customizable power distribution module that includes a maintenance bypass switch. |
| Number of Batteries | 32 |
| Number of Batteries | 32 |
| Number of Batteries | 32 |
| Output current | 30 A |
| Output current | 30 A |
| Output current | 30 A |
| Plug/Connector Type | Hardwired |
| Plug/Connector Type | Hardwired |
| Plug/Connector Type | Hardwired |
| Product color | Black |
| Product color | Black |
| Product color | Black |
| Product Model | 9155 |
| Product Model | 9155 |
| Product Model | 9155 |
| Product Name | 9155 UPS Backup Power System |
| Product Name | 9155 UPS Backup Power System |
| Product Name | 9155 UPS Backup Power System |
| Product Type | Dual Conversion Online UPS |
| Product Type | Dual Conversion Online UPS |
| Product Type | Dual Conversion Online UPS |
| Product Type | Double Conversion Online UPS |
| Product Type | Double Conversion Online UPS |
| Protection Type | Surge |
| Protection Type | Surge |
| Protection Type | Surge |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Weight (Approximate) | 558 lb |
| Weight (Approximate) | 558 lb |
