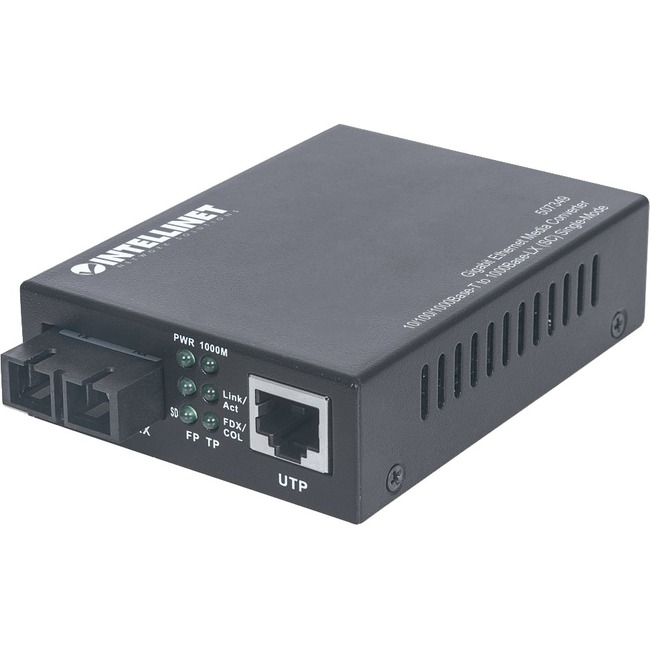

Intellinet Gigabit Ethernet Single Mode Media Converter, 10/100/1000Base-T to 1000Base-Lx (SC) Single-Mode, 20km (With 2 Pin Euro Power Adapter) - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Gigabit Ethernet - 1000Base-LX, 10/100/1000Base-T - Desktop, Wall Mountable, Rack-mountable
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Gigabit Ethernet - 1000Base-LX, 10/100/1000Base-T - Desktop, Wall Mountable, Rack-mountable
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Standard | 10/125 µm |
| Fiber Optic Cable Standard | 8/125 µm |
| Fiber Optic Cable Standard | 8.7/125 µm |
| Fiber Optic Cable Standard | 8.3/125 µm |
| Fiber Optic Wavelength | 1310 nm |
| Maximum Distance Supported | 12.43 Mile |
| Network (RJ-45) | Yes |
| SC Port Type | Duplex |
| Brand Name | Intellinet |
| Country of origin | China |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Desktop |
| Form factor | Rack-mountable |
| Form factor | Wall Mountable |
| Height | 1" |
| Limited Warranty | 3 Year |
| Manufacturer | Intellinet Network Solutions |
| Manufacturer Part Number | 507349 |
| Manufacturer Website Address | http://www.intellinet-network.com |
| Marketing Information | The Intellinet Network Solutions Gigabit Ethernet Single Mode Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to fibre Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. Expands the Size of an Existing Network Provides fibre connectivity to Ethernet segments allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers. Enhances the Distance between Networking Devices Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device. Cabling Flexibility Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location and up to 14 media converters can be simultaneously installed into a 19 rack-mountable chassis (model 507356). |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-LX |
| Number of Network (RJ-45) Ports | 1 |
| Power consumption | 5 W |
| Power source | Power Adapter |
| Product Name | Gigabit Ethernet Single Mode Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| UPC Alternates | 766623507349 |
| Weight (Approximate) | 6.35 oz |
| Width | 2.8" |
