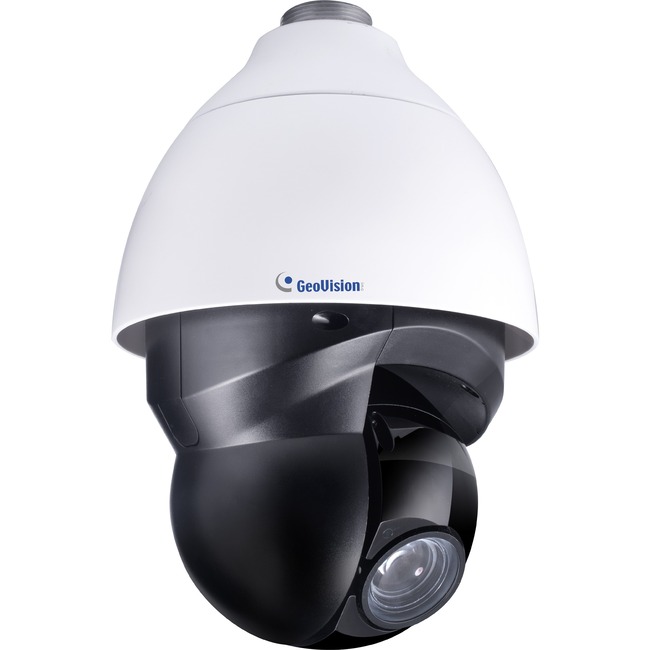

GeoVision GV-QSD5731-IR 5 Megapixel Outdoor Network Camera - Color - Dome - 492.13 ft Infrared Night Vision - H.264, MJPEG, H.265 - 2592 x 1944 - 4.60 mm- 152 mm Zoom Lens - 33x Optical - CMOS - Wall Mount, Corner Mount, Pole Mount, Swan Neck Mount, Straight Tube Mount, Junction Box Mount - IK10 - IP66 - Weather Proof, Vandal Resistant
492.13 ft Infrared Night Vision - H.264, MJPEG, H.265 - 2592 x 1944 - 4.60 mm- 152 mm Zoom Lens - 33x Optical - CMOS - Wall Mount, Corner Mount, Pole Mount, Swan Neck Mount, Straight Tube Mount, Junction Box Mount - IK10 - IP66 - Weather Proof, Vandal Resistant
| Field of View | Horizontal 55° ~ 2° |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66 |
| Maximum Aperture | f/1.6 |
| Minimum Focal Length | 4.60 mm |
| Night Vision Distance | 492.13 ft |
| Night Vision Type | Infrared |
| Number of IR LEDs | 16 |
| Brand Name | GeoVision |
| Color Supported | Color |
| Connectivity technology | Wired |
| Diameter | 8.1" |
| Durability | Weather Proof |
| Durability | Vandal Resistant |
| Effective Camera Resolution | 5 Megapixel |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | PTZ |
| Features | Ingress Protection |
| Features | Day/Night |
| Features | Wide Dynamic Range |
| Features | Removable IR Cut-off Filter |
| Features | Motion Detection |
| Features | Automatic White Balance |
| Features | Electronic Image Stabilization |
| Features | 3D Noise Reduction |
| Features | Privacy Masking |
| Form factor | Dome |
| Height | 12.4" |
| Image Sensor Type | CMOS |
| Input voltage | 24 V AC |
| Input voltage | 30 V DC |
| Lens Type | Zoom |
| Limited Warranty | 2 Year |
| Longest Shutter Speed | 1 Second |
| Manufacturer | GeoVision Inc |
| Manufacturer Part Number | 125-QSD5731-IR |
| Manufacturer Website Address | http://www.geovision.com.tw |
| Marketing Information | GV-IP Speed Dome (GV-QSD5731-IR) is an outdoor network PTZ camera that offers 33x optical zoom and 10x digital zoom capable of showing smooth live view with great details. This camera can simultaneously deliver four video streams in resolutions up to 2592 x 1944 at 30 fps which allows up to 150 m (500 ft) effective IR distance. GV-QSD5731-IR supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.
Wide surveillance coverage is made possible with 360° endless panning and -20°~100° tilting capacity. PTZ functions such as Preset Auto Pan and Patrol can be programmed and activated by schedule. The GV-QSD5731-IR supports pan/tilt speeds ranging from a fast patrol of 280° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.
GV-QSD5731-IR also features Servo Feedback and Electronic Image Stabilizer (EIS) technology. The Servo Feedback technology ensures the camera view returns to the previous position when encountering external force (e.g. human interference) or environmental vibration. EIS technology can effectively produce stable images by actively sensing directional movement of the images and compensating accordingly; this is particularly useful for cameras installed at places where environmental movement (e.g. strong wind the passing-by heavy vehicles) is constant and when high optical zoom is executed. |
| Maximum Focal Length | 152 mm |
| Maximum frame rate | 30 fps |
| Maximum Video Resolution | 2592 x 1944 |
| Mount Type | Wall Mount |
| Mount Type | Junction Box Mount |
| Mount Type | Straight Tube Mount |
| Mount Type | Corner Mount |
| Mount Type | Pole Mount |
| Mount Type | Swan Neck Mount |
| Optical zoom | 33x |
| Package Contents | - 33x 5MP H.265 Low Lux WDR Pro Outdoor IR IP Speed Dome
- M4 Screw with Rubber
- 3-Pin Power Terminal Block (AC 24V)
- Pendant cap
- 14-Pin Alarm/Audio I/O Terminal Block
- Download Guide
- Warranty Card
|
| Product color | White |
| Product Model | GV-QSD5731-IR |
| Product Name | 33x 5MP H.265 Low Lux WDR Pro Outdoor IR IP Speed Dome |
| Product Type | Network Camera |
| Shortest Shutter Speed | 1/10000 Second |
| Storage Type | Memory Card |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Video Signal Format | NTSC |
| Video Signal Format | PAL |
| Weight (Approximate) | 8.38 lb |
