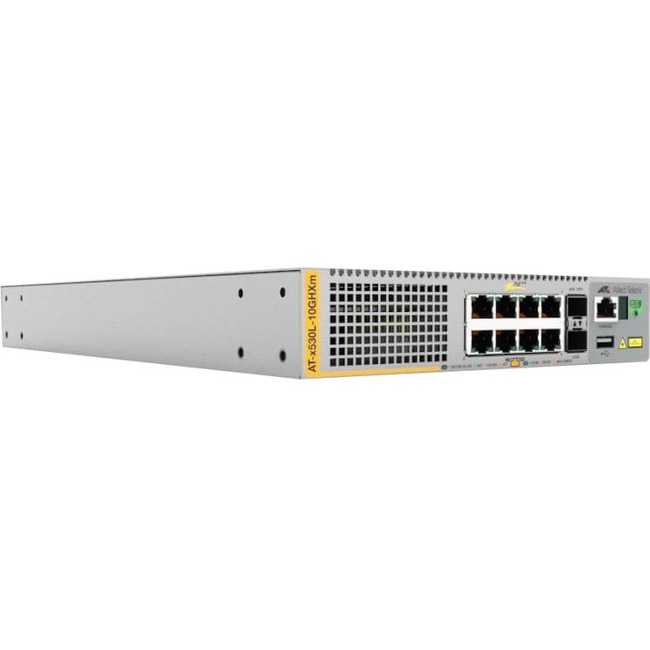

Allied Telesis x530L-10GHXm Layer 3 Switch - 8 Ports - Manageable - 10 Gigabit Ethernet, 5 Gigabit Ethernet - 10GBase-X, 5GBase-T - 3 Layer Supported - Modular - 60 W Power Consumption - 500 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable, Wall Mountable
8 Ports - Manageable - 10 Gigabit Ethernet, 5 Gigabit Ethernet - 10GBase-X, 5GBase-T - 3 Layer Supported - Modular - 60 W Power Consumption - 500 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable, Wall Mountable
| Number of Power Supplies Installed | 1 |
| Number of Total Expansion Slots | 2 |
| PoE Budget | 500 W |
| Total Number of Network Ports | 8 |
| Brand Name | Allied Telesis |
| Depth | 14.3" |
| Environmental Certification | China RoHS |
| Environmental Certification | ECO |
| Environmental Certification | EU RoHS |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 5 Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Form factor | Rack-mountable |
| Form factor | Wall Mountable |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Height | 1.7" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Layer Supported | 3 |
| Manageable | Yes |
| Manufacturer | Allied Telesis Inc |
| Manufacturer Part Number | AT-X530L-10GHXM-10 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Marketing Information | x530L Series Stackable Intelligent Layer 3 Switches
The Allied Telesis x530L Series stackable Layer 3 switches feature high capacity resiliency and easy management. With both MultiGigabit and high port density models they are the ideal choice for network access applications.
Overview
The Allied Telesis x530L Series are a high-performing and featurerich choice for today's networks. The x530L-10GHXm features 8 x 100M/1/2.5/5G Multi-Gigabit ports with 2 x 10 Gigabit uplinks while 28 and 52 port models feature 24 or 48 x 10M/100M/1 Gigabit ports with 4 x 10 Gigabit uplinks. The ability to stack multiple units enables a versatile solution for enterprise applications.
The x530L-10GHXm supports PoE++ (up to 90W per port) while 28 or 52 port GPX models support PoE+ (up to 30W per port) making them perfect for connecting and powering devices at the network edge such as wireless access points and IP surveillance cameras.
Network Management
Vista Manager™ EX bundled with Allied Telesis Autonomous Management Framework™ (AMF) meets the increasing management requirements of modern networks. While AMF allows an entire network to be securely and easily managed as a single virtual device Vista Manager EX provides an intuitive and powerful graphical tool for monitoring and managing AMF wired Autonomous Wave Control (AWC) wireless and third party (SNMP) devices.
Cybersecurity
The x530L Series acting as an AMF member is compatible with our AMFSecurity solution which enables a self-defending network. The AMF-Sec controller responds immediately to any internal malware threats by instructing the x530L to isolate the affected part of the network and quarantine the suspect device. Vista Manager EX alerts networks administrators of threats that have been dealt with.
Resilient
Today's converging online services mean there is increasing demand for highly-available networks with minimal downtime. Allied Telesis Virtual Chassis Stacking (VCStack™) in conjunction with link aggregation provides a network with no single point of failure and application resiliency
x530L Series switches can form a VCStack of up to eight units for enhanced resiliency and simplified management. Mixed stacking allows the x530L Series to stack with x530 Series Switches. Stacking over Long Distance (VCStack™ LD) which enables stacks to be created over long distance fiber links makes the x530L Series the perfect choice for distributed environments too.
Allied Telesis Ethernet Protection Switched Ring (EPSRing™) and the standards-based G.8032 Ethernet Ring Protection ensure that distributed network segments have high-speed resilient access to online resources and applications.
Reliable
The x530L Series was designed with reliability in mind and guarantees continual delivery of essential services. The 28 and 52 port models feature dual built-in power supplies and all models have near-hitless online stack reconfiguration so maintenance does not affect network uptime. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 5GBase-T |
| Network Technology | 10GBase-X |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.3ac |
| Networking standards | IEEE 802.1AX |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3bt |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3ae |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.2 |
| Networking standards | IEEE 802.3bz |
| Networking standards | IEEE 802.1v |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3ax |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.1ag |
| Networking standards | IEEE 802.1ab |
| Package Contents | - x530L-10GHXm Layer 3 Switch
- 19 Inch Rack-mount Brackets
- US Power Cord
|
| Port/Expansion Slot Details | 8 x 5 Gigabit Ethernet PoE++ |
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 2 x Stack |
| Power consumption | 60 W |
| Power source | Power Supply |
| Product Model | x530L-10GHXm |
| Product Name | x530L-10GHXm Layer 3 Switch |
| Product Series | x530L |
| Product Type | Layer 3 Switch |
| UPC Alternates | 767035218519 |
| Weight (Approximate) | 7.72 lb |
| Width | 8.3" |
