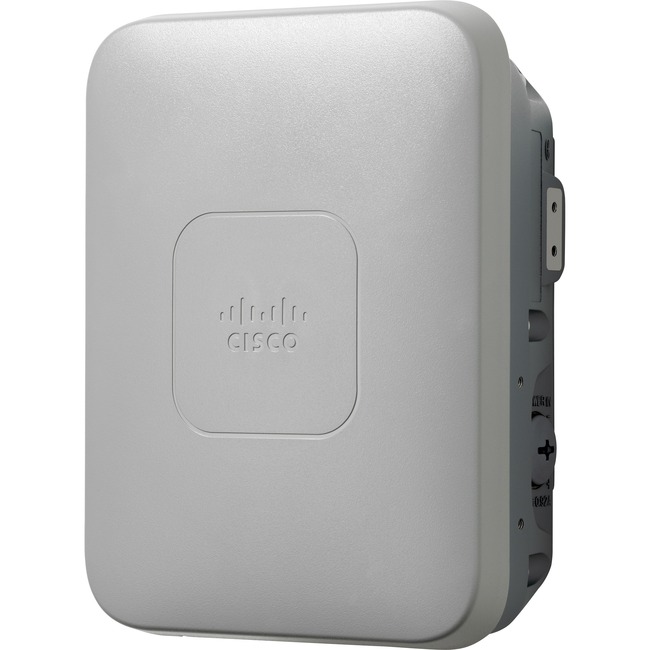

Cisco Aironet 1532I IEEE 802.11n 300 Mbit/s Wireless Access Point - 2.40 GHz, 5 GHz - MIMO Technology - Ethernet, Fast Ethernet, Gigabit Ethernet - Wall Mountable, Pole-mountable
2.40 GHz, 5 GHz - MIMO Technology - Ethernet, Fast Ethernet, Gigabit Ethernet - Wall Mountable, Pole-mountable
| Wireless LAN Standard | IEEE 802.11n |
| Brand Name | Cisco |
| Certifications & Standards |
Safety:
- UL 60950
- CAN/CSA-C22.2 No. 60950
- IEC 60950
- EN 60950
Immunity:
- ANSI/IEEE C62.41
- EN61000-4-5
- EN61000-4-4
- EN61000-4-3
- EN61000-4-2
- EN60950
Radio Approvals:- FCC Part 15.247
- FCC Bulletin OET-65C
- RSS-210
- RSS-102
- AS/NZS 4268.2003
- ARIB-STD 66
- ARIB-STD T71
- EN 300 328
- EN 301 893
EMI and Susceptibility:
- FCC part 15.107 15.109
- ICES-003
- EN 301 489-1
IEEE Standards:
- 802.11a
- 802.11b
- 802.11g
- 802.11n
- 802.11i
- 802.1x
- 802.3at
|
| Depth | 4" |
| Encryption Standard | WPA |
| Encryption Standard | AES |
| Encryption Standard | WPA2 |
| Encryption Standard | TKIP |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Features | MIMO Technology |
| Form factor | Pole-mountable |
| Form factor | Wall Mountable |
| Frequency band | 5 GHz |
| Frequency band | 2.40 GHz |
| Height | 9" |
| ISM Band | Yes |
| ISM Maximum Frequency | 2.48 GHz |
| Limited Warranty | 1 Year |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | AIR-AP1532I-UXK9 |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | Sleek Innovative Flexible Proven As carrier-grade Wi-Fi becomes a critical small-cell element in next-generation mobile networks operators are requesting new access point designs that can pack a punch in a small form factor. The Cisco® Aironet® 1530 Series Outdoor Access Points incorporate a low-profile design that is esthetically pleasing yet they can withstand the most rugged outdoor conditions. Cisco brings engineering innovation to the platform with unique Cisco Flexible Antenna Port technology that allows the same antenna ports to be used either for dual-band antennas to reduce the antenna footprint or for single-band antennas to optimize radio coverage. This flexibility allows antenna changes to be made on the fly and saves on sparing costs. And the Cisco Aironet 1530 Series brings all the same robust Wi-Fi features that operators have come to expect from Cisco including radio resource management BandSelect to automatically take advantage of the 5-GHz band and VideoStream for high-quality video performance over Wi-Fi. Only Cisco delivers all of these features in a hardened outdoor access point that is ideal for any urban setting. |
| Product Family | Aironet 1530 |
| Product Line | Aironet |
| Product Model | 1532I |
| Product Name | Aironet 1532I Wireless Access Point |
| Product Series | 1530 |
| Product Type | Wireless Access Point |
| Total Number of Antennas | 3 |
| UNII Maximum Frequency | 5.83 GHz |
| UNII Minimum Frequency | 5.28 GHz |
| UPC Alternates | 882658728372 |
| USB | No |
| Weight (Approximate) | 5 lb |
| Width | 7" |
| Wireless Security | - WPA2
- WPA
- AES
- TKIP
- EAP
- EAP-PEAP
- EAP-TLS
- EAP-TTLS
- EAP-SIM
- LEAP
|
| Wireless Transmission Speed | 300 Mbit/s |
