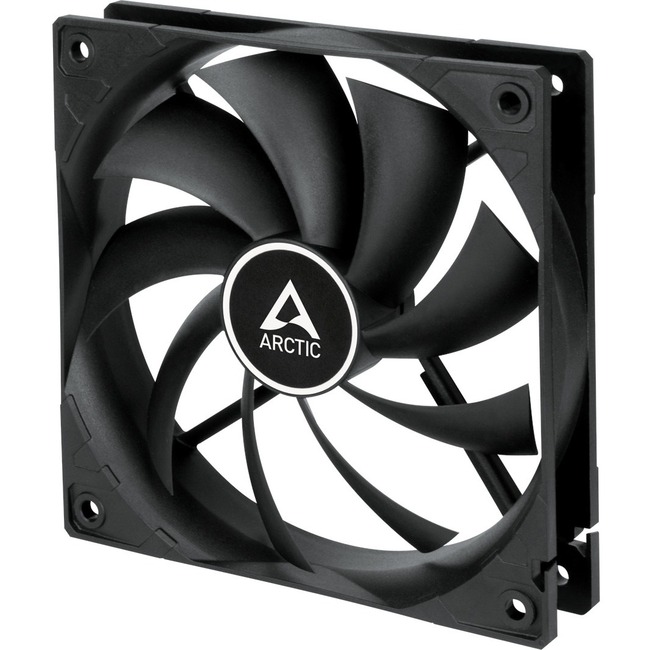

Arctic 120 mm PWM Case Fan - 4.72" Maximum Fan Diameter - 396.5 gal/min Maximum Airflow - 1350 rpm - Fluid Dynamic Bearing - 4-Pin - Case
4.72" Maximum Fan Diameter - 396.5 gal/min Maximum Airflow - 1350 rpm - Fluid Dynamic Bearing - 4-Pin - Case
| Connectors | 4-Pin |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Speed (Max) | 1350 rpm |
| Fan Speed (Min) | 230 rpm |
| Fan Speed (Min) | 230 rpm |
| Maximum Airflow | 396.5 gal/min |
| Maximum Fan Diameter | 4.72" |
| Noise Levels | 35.8 dB(A) |
| Noise Levels (A-Weighted) | 35.8 dB(A) |
| Application/Usage | Case |
| Brand Name | Arctic |
| Height | 1" |
| Manufacturer | Arctic Cooling |
| Manufacturer Part Number | ACFAN00203A |
| Manufacturer Website Address | http://www.arctic-cooling.com |
| Marketing Information | LONG SERVICE LIFE The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life PERFECT CASE FAN REGULATION WITH PWM The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level. INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure. TWO WAY INSTALLATION - Blow warm air out of the case
- Draw cool air into your case |
| Number of Fans | 1 |
| Product Model | F12 PWM |
| Product Name | 120 mm PWM Case Fan |
| Product Series | F |
| Product Type | Cooling Fan |
| UPC Alternates | 745924057517 840033400756 |
| Weight (Approximate) | 3.70 oz |
| Width | 4.7" |
