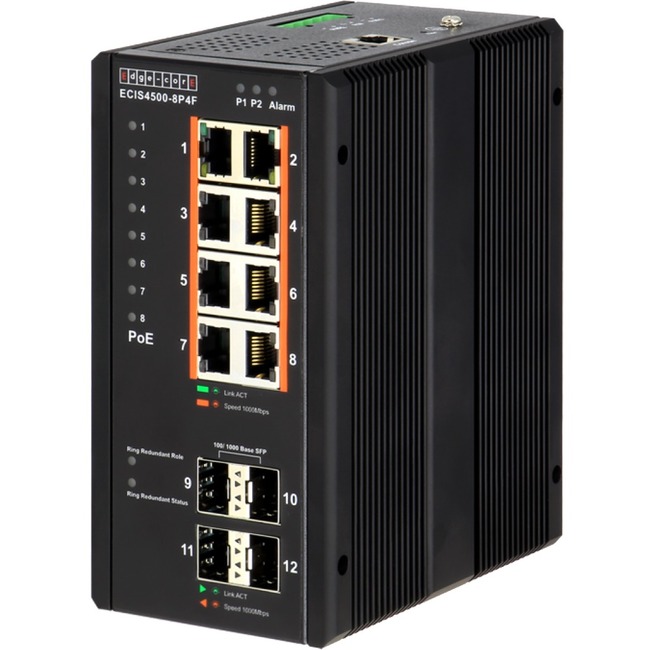

Edge-Core ECIS4500-8P4F Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 4 SFP Slots - 265 W Power Consumption - 240 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty
8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 4 SFP Slots - 265 W Power Consumption - 240 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty
| Number of Total Expansion Slots | 4 |
| PoE Budget | 240 W |
| Product Material | Metal |
| Total Number of Network Ports | 8 |
| Brand Name | Edge-Core |
| Depth | 4.3" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP (mini-GBIC) |
| Form factor | Wall Mountable |
| Form factor | DIN Rail Mountable |
| Height | 2.4" |
| Input voltage | 58 V DC |
| Input voltage | 46 V DC |
| Layer Supported | 2 |
| Limited Warranty | 5 Year |
| Manageable | Yes |
| Manufacturer | Edge-Core Networks Corporation |
| Manufacturer Part Number | ECIS4500-8P4F |
| Manufacturer Website Address | http://www.edge-core.com |
| Marketing Information | The Edgecore ECIS4500 series are managed industrial PoE+ and non-PoE+ Gigabit Ethernet switches. The ECIS4500PoE series switches comply to the IEEE 802.3 af/at standard and are able to deliver up to 30 watts of power per port along with data over standard Ethernet cabling.
The switches can be used to power any IEEE 802.3af/at-compliant PoE PD devices and include PoE power management features that ease the deployment effort and PoE power budget planning as well as eliminating the need for additional wiring to reach a power source. The ECIS4500 series switches provide Gigabit Ethernet ports for upgrading the existing Fast Ethernet network infrastructure to full Gigabit speed. Gigabit Ethernet networks provide a higher bandwidth than the legacy Fast Ethernet networks and reduces the response time for time-sensitive applications. With powerful features the ECIS4500 series are easy to deploy and manage the network providing reliable and quality service for growing network traffic demand.
Features and Benefit
Rugged Industrial Design - The ECIS4500 series are designed with IP30 metal case for harsh industrial environment. It provides high level of protection for electromagnetic interference occurred in factory and transportation applications. The design is compliant with EN 50121-4 for electromagnetic compatibility emission and immunity requirements for railway traffic applications.
Performance and Scalability - High-performance Gigabit Ethernet Layer 2+ managed switches with 24/20 Gbps switching capacity. Deliver wire-speed switching performance on all Gigabit ports.
Continuous Availability - The ECIS4500 series support fast failover ring protection (E-Ring) with the ability for the network to detect and recover from incidents without impacting users. Rapid recover time when problems do occur is as low as 20 ms.
Enhanced Security - DHCP snooping allows a switch to protect a network from rouge DHCP servers that offer invalid IP addresses. Secure Shell (SSH) and Secure Sockets Layers (SSL/HTTPS) encrypt Telnet and web access to the switch providing secure network management.
Service Monitoring and Management - The ECIS4500 series allow administrators to monitor all incoming traffic in one or more VLANs by sending a mirror image of that traffic to a configured mirror port. It also provides the capability to manage service availability identify connectivity and performance issues.
Comprehensive QoS - The ECIS4500 series offer advanced QoS for shaping classification and scheduling to deliver best-in-class performance for data voice and video traffic at wire speed. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-X |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3af |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Power consumption | 265 W |
| Power source | DC |
| Product Name | ECIS4500-8P4F Ethernet Switch |
| Product Series | ECIS4500 |
| Product Type | Ethernet Switch |
| Weight (Approximate) | 3.09 lb |
| Width | 6.1" |
