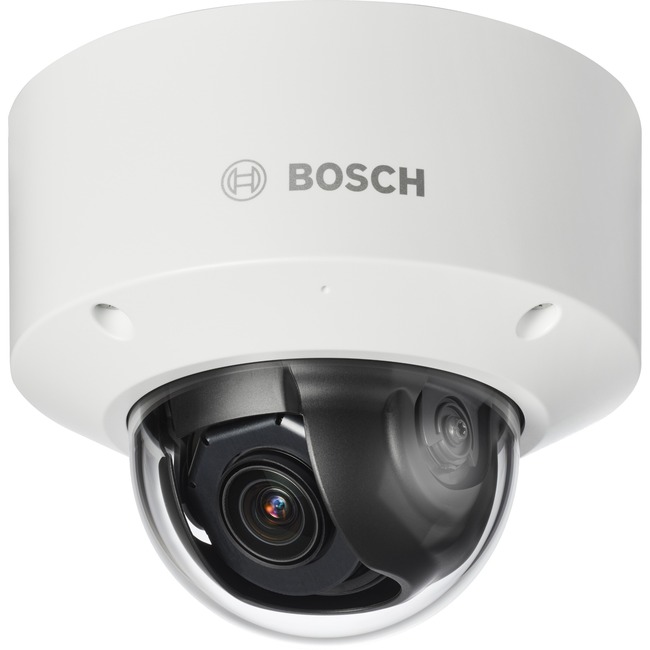

Bosch FlexiDome 8.3 Megapixel Indoor 4K Network Camera - Color, Monochrome - 1 Pack - Dome - H.265, H.264, MJPEG, H.265 (HEVC) - 3840 x 2160 - 3.90 mm- 10 mm Varifocal Lens - 2.6x Optical - CMOS - In-ceiling, Surface Mount, Wall Mount, Pipe Mount, Ceiling Mount, Surface Mount, Pole Mount - IK10 - IP54 - Impact Resistant, Water Resistant, Dust Resistant
H.265, H.264, MJPEG, H.265 (HEVC) - 3840 x 2160 - 3.90 mm- 10 mm Varifocal Lens - 2.6x Optical - CMOS - In-ceiling, Surface Mount, Wall Mount, Pipe Mount, Ceiling Mount, Surface Mount, Pole Mount - IK10 - IP54 - Impact Resistant, Water Resistant, Dust Resistant
| Field of View | Wide: 117º x 62º (H x V); Tele: 44º x 24º (H x V) |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Indoor |
| Ingress Protection Rating | IP54 |
| Maximum Aperture | f/2.7 |
| Minimum Aperture | f/1.6 |
| Minimum Focal Length | 3.90 mm |
| Minimum Operating Temperature | -4°F (-20°C) |
| Operating Humidity | 100% |
| Brand Name | Bosch |
| Color Supported | Color |
| Color Supported | Monochrome |
| Connectivity technology | Wired |
| Diameter | 7" |
| Durability | Dust Resistant |
| Durability | Impact Resistant |
| Durability | Water Resistant |
| Effective Camera Resolution | 8.3 Megapixel |
| Environmental Certification | EU WEEE |
| Environmental Certification | WEEE |
| Environmental Certification | China RoHS |
| Environmental Certification | REACH |
| Environmental Certification | EU RoHS |
| Environmentally Friendly | Yes |
| Features | Privacy Masking |
| Features | Tamper Detection |
| Features | Back Light Compensation (BLC) |
| Features | SD Card Local Storage |
| Features | Region of Interest |
| Features | Automatic Defog |
| Features | Built-in Microphone |
| Features | Wide Dynamic Range |
| Features | Day/Night |
| Features | White Balance |
| Features | Cross Line Detection |
| Features | Face Detection |
| Form factor | Dome |
| Height | 5.8" |
| Image Sensor Type | CMOS |
| Lens Type | Varifocal |
| Longest Shutter Speed | 1/25 Second |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NDV-8504-R |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information | The FLEXIDOME IP indoor 8000i - 8 MP series camera offers a 1/1.8" sensor starlight and High Dynamic Range at 4K ultra HD resolution. It provides highly detailed images even in challenging conditions. The camera's remote commissioning functionality makes sure installation and commissioning can be done in very little time. Using a PC or a mobile device with the Bosch Project Assistant app you can pan tilt roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens
Functions
Full Remote Commissioning
Installing a professional IP video surveillance camera has never been so easy. In fact as an installer you'll never want to go back to the old methods of installing cameras again. We've simplified the installation and commissioning stages to such a degree that they can be done in very little time. With the FLEXIDOME IP indoor 8000i camera's remote commissioning functionality there's no need to go up and down ladders. Using a PC or a mobile device with the Bosch Project Assistant app you can pan tilt roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens. Remote configuration and commissioning can also be done at a later stage once all cameras have been installed. Simply connect to the camera remotely via the network using the Bosch Project Assistant app the camera's web interface or the Bosch Configuration Manager.
Fast performance
The high sensor resolution together with a frame rate of 30 frames per second makes this camera an ideal solution for capturing fast moving objects in high detail and at the same time providing situational awareness.
Starlight performance
The latest sensor technology combined with the sophisticated image processing and noise suppression results in an exceptional sensitivity in color. The lowlight performance is so good that the camera continues to provide excellent color performance even with a minimum of ambient light.
High Dynamic Range
The high dynamic range mode is based on a multipleexposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features for example faces with bright backlight. The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5.
Scene modes
Nine configurable modes are provided with the best settings for a variety of applications. In one click fully optimized image settings can be selected to suit the conditions. Different scene modes can be selected for different situations such as traffic or retail environments. |
| Maximum Focal Length | 10 mm |
| Maximum frame rate | 30 fps |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Video Resolution | 3840 x 2160 |
| Mount Type | In-ceiling |
| Mount Type | Pole Mount |
| Mount Type | Wall Mount |
| Mount Type | Pipe Mount |
| Mount Type | Surface Mount |
| Mount Type | Ceiling Mount |
| Optical zoom | 2.6x |
| Package Contents | - Fixed Dome 8MP HDR 3.9-10mm PTRZ
- 1 x T-20 Security Torx Bit
- 1 x Quick Installation Guide
- 1 x Safety Information
- 1 x Cable Conduit for Side Entry
- 1 x Washer for Cable Conduit
- 1 x Adapter Plate for Cable Conduit (Ø 3/4" / M25)
- 1 x Adapter Plate for Cable Conduit (Ø 1/2" / M20)
|
| Packaged Quantity | 1 |
| Product color | White |
| Product Family | FlexiDome 8000i |
| Product Line | FlexiDome |
| Product Name | Fixed Dome 8MP HDR 3.9-10mm PTRZ |
| Product Series | 8000i |
| Product Type | Network Camera |
| Recording Formats | 4K |
| Shortest Shutter Speed | 1/15000 Second |
| Storage Type | Memory Card |
| Video Formats | H.265 |
| Video Formats | MJPEG |
| Video Formats | H.265 (HEVC) |
| Video Formats | H.264 |
| Weight (Approximate) | 4.52 lb |
