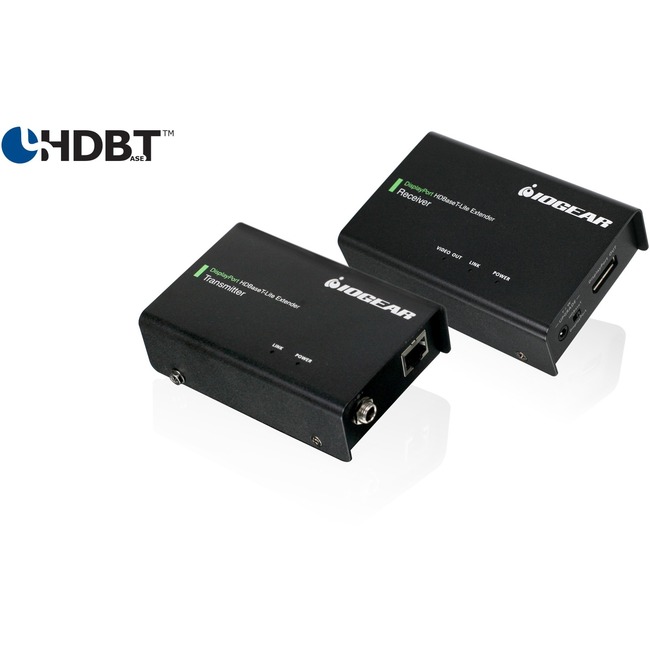

IOGEAR Cinema 4K DisplayPort HDBaseT-Lite Extender (TAA) - 1 Input Device - 1 Output Device - 688 ft Range - 2 x Network (RJ-45) - DisplayPort - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable - TAA Compliant
1 Input Device - 1 Output Device - 688 ft Range - 2 x Network (RJ-45) - DisplayPort - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable - TAA Compliant
| Number of Output Devices Supported | 1 |
| Transmitter Depth | 4.43" |
| Transmitter Height | 1.18" |
| Transmitter Weight (Approximate) | 1.90 lb |
| Transmitter Width | 3.85" |
| Brand Name | IOGEAR |
| Connectivity technology | Wired |
| Country of origin | Taiwan |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Graphics Modes | 4K |
| Limited Warranty | 3 Year |
| Manufacturer | IOGEAR Inc |
| Manufacturer Part Number | GVE440 |
| Manufacturer Website Address | http://www.iogear.com |
| Marketing Information | Extend 4K DisplayPort Audio/Video Range The Cinema 4K DisplayPort HDBaseT-Lite Extender offers professional-grade features reliability and video signal interference protection. Extend the range of a DisplayPort display up to 229 feet using a Cat 5e/6/6a cable. Achieve Cinema 4K resolutions of 4096 x 2160 @ 60Hz up to 130 feet from the source and 1080p @ 60Hz HD resolutions up to 229 feet away through a single extender. Need More Distance? Go farther by daisy chaining the Extender to quickly expand the distance between a display and its source. Connect up to three Extenders to reach a maximum distance of 687 feet at 1920 x 1080 resolutions and distribute Cinema 4K quality up to 390 feet ensuring the highest quality video without signal loss or drops. Professional-Grade Features The Cinema 4K DisplayPort HDBaseT-Lite Extender is designed with the professional AV installer in mind. The compact all metal Extender is easily mounted in an AV rack enclosure or cabinet and features a no-slip DC jack locking mechanism for enhanced reliability. More from the Manufacturer |
| Maximum Operating Distance | 688 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents | - 1 x GVE440 DisplayPort HDBaseT-Lite Transmitter
- 1 x GVE440 DisplayPort HDBaseT-Lite Receiver
- 2 x Power Adapters
- Mounting Kit
- Quick Start Guide
|
| Product Name | Cinema 4K DisplayPort HDBaseT-Lite Extender (TAA) |
| Product Type | Video Extender Transmitter/Receiver |
| Twisted Pair Cable Standard | Category 6a |
| UPC Alternates | 789747505718 881317517166 |
