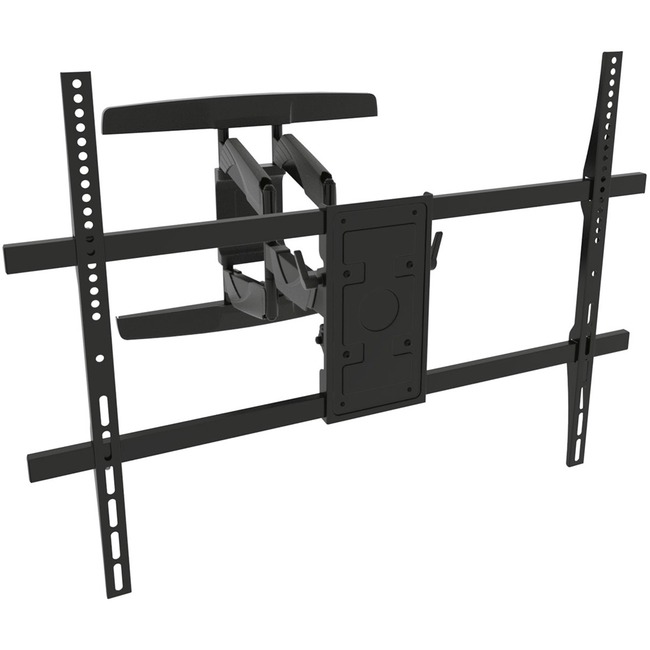

Middle Atlantic VDM-800-M Wall Mount for Monitor - Black
| $244.37 Retail $419.00 |
- Proximity mounting plate included to enable location of the AV system directly behind the display
- Post-install leveling mechanism enables quick micro-adjustment of horizontal plane of display
- Safety locking features keep the display securely mounted
- Maximum VESA: 800x600mm
- Recommended display size: 50" - 90"
- Weight Capacity: 150 lbs.
- Horizontal and tilt adjustment allow easier alignment of the display and better viewing angles for the end user
- Included wall plate cover provides aesthetic appeal when arm is extended and back is visible
- Certified to UL 2442 for safe, reliable installs
- Cable management built into arms to help maintain signal integrity and aesthetics
- Arm extends 20"
- Ideal for corner mount installs and single-person servicing
1 Display(s) Supported - 90" Screen Support - 150 lb Load Capacity - 200 x 200, 800 x 600 VESA Standard
Product Specifications
| Product Material | Steel |
| VESA Mount Standard | 200 x 200 |
| VESA Mount Standard | 800 x 600 |
| Brand Name | Middle Atlantic |
| Device Supported | Monitor |
| Environmental Certification | RoHS |
| Environmental Certification | EU RoHS |
| Environmentally Friendly | Yes |
| Finishing | Powder Coated |
| Limited Warranty | Lifetime |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | VDM-800-M |
| Manufacturer Website Address | http://www.legrand.us |
| Marketing Information | Vision Display Mounts wall mount monitor mounts shall be Middle Atlantic Products model # VDM-800-M. Vision Display Mounts shall have a recommended display size of 50" to 90" VESA size range of 200x200mm to 800x600mm and a weight capacity of 150lbs. Selected Vision Display mounts shall include a 9" x 12" small component accessory plate (available separately as model # PRX-MP-9X12). Selected models shall have 15º tilt or 6º roll tile adjustment. Vision Display Mounts shall mount 3.41" from wall. Full Motion Mounts Model # VDM-800-M when fully extended shall be 20.61" from wall. Vision Display Mounts shall include a post install leveling mechanism to enable micro adjustment of horizontal plane of display after installing. Vision Display Mounts shall be constructed of phosphate pre-treated steel with a black powdercoat finish. Vision Display Mounts shall meet the EU RoHS Directive 2011/65/EU. Vision Display Mounts shall be manufactured by an ISO 9001 registered company. Vision Display Mounts shall be warrantied to be free from defects in materials and workmanship under normal use and conditions for the lifetime of the monitor mount. Vision Display Mounts shall be UL listed to UL standard 2442 in US and CAN/CSA-C22.2 No. 60065 in Canada. |
| Maximum Load Capacity | 150 lb |
| Maximum Screen Size Supported | 90" |
| Number of Displays Supported | 1 |
| Package Contents |
|
| Product color | Black |
| Product Name | Motion VDM Series Display Mount with 800 VESA |
| Product Series | VDM |
| Product Type | Wall Mount |
