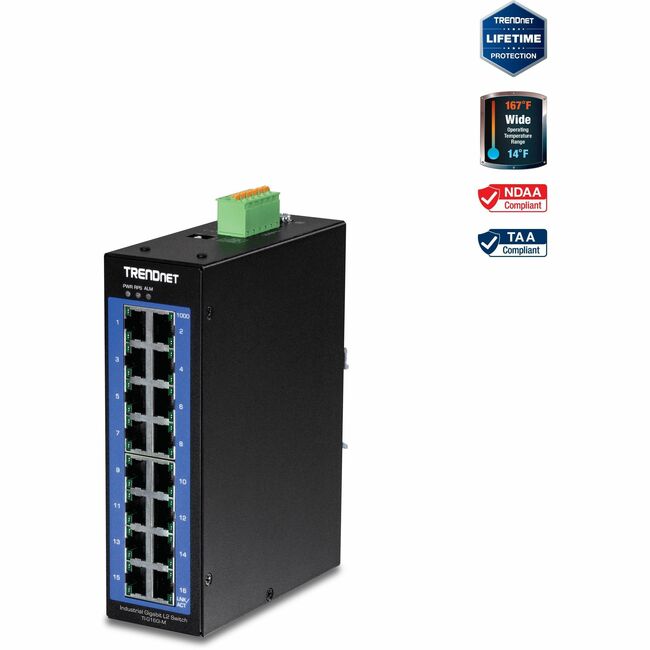

TRENDnet 16-Port Industrial Gigabit L2 Managed DIN Rail Switch, 16 x Gigabit Ports, Wide Temperature Layer 2 Switch, 32 Gbps Switching Capacity, Black, TI-G160i-M - 16 Ports - Manageable - Gigabit Ethernet - 1000Base-T - 2 Layer Supported - Power Supply - 12 W Power Consumption - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty
16 Ports - Manageable - Gigabit Ethernet - 1000Base-T - 2 Layer Supported - Power Supply - 12 W Power Consumption - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty
| Product Material | Metal |
| Total Number of Network Ports | 16 |
| Country of origin | Taiwan |
| Depth | 4.7" |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | DIN Rail Mountable |
| Height | 6.3" |
| Layer Supported | 2 |
| Limited Warranty | 3 Year Lifetime |
| Manageable | Yes |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-G160i-M |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | TRENDnet's 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch model TI-G160i-M delivers advanced management features with a 32Gbps switching capacity. Users are able to connect sixteen devices to the switch for high speed gigabit network connections. The switch is equipped with an IP30 rated metal enclosure designed to withstand a high degree of vibration and shock while operating within a wide temperature range of -10° - 75° C (14° - 167° F) for industrial environments. Advanced traffic management controls troubleshooting and SNMP monitoring support make this a powerful solution for SMB networks.
- DEVICE INTERFACE: 16 x Gigabit Ports; 6-Pin Removable Terminal Block; DIP Switch (Alarm for Primary/ RPS Power);LED Indicators; DIN-Rail Mount
- REDUNDANT POWER: The 16-port network switch has dual redundant power inputs with overload current protection (POWER SUPPLY SOLD SEPARATELY: Model TI-M6024)
- SWITCHING CAPACITY: The industrial layer 2 managed switch is equipped with 32Gbps switching capacity.
- TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.3ad link aggregation Private VLAN 802.1Q VLAN RTSP Loopback Detection 802.1p Class of Service (CoS) port bandwidth management and QoS queue scheduling
- MONITORING: RMON SNMP SNMP Trap and Port Mirroring support administrator monitoring solutions
- DIN-RAIL KIT: This 16-Port Gigabit switch comes with an integrated DIN-Rail mount and mounting bracket
- SHOCK AND VIBRATION RESISTANT: Rated for shock (EN 60068-2-27) freefall (EN 60068-2-32) and vibration (EN 60068-2-6)
- WIDE TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration shock protection against ESD/EMI/surge and operate with a wide temperature range (- 10 - 75 °C (14° - 167° F) for harsh environments.
- NDAA / TAA compliant (U.S. and Canada only)
Shock and Vibration Resistant
The industrial layer 2 managed switches are rated for shock (EN 60068-2-27) freefall (EN 60068-2-32) and vibration (EN 60068-2-6).
Integration Flexibility
Managed layer 2 features include VLAN IGMP snooping QoS RMON SNMP trap and syslog for monitoring and flexible network integration.
Industrial Design
Equipped with an IP30 rated metal enclosure the industrial layer 2 managed switch operates within a wide temperature range of -10° - 75° C (14° - 167° F)
NETWORKING SOLUTION | FEATURES | Network Ports
16 Gigabit ports
Monitoring
RMON SNMP SNMP Trap and Port Mirroring support administrator monitoring solutions
Switching Capacity
32Gbps switching capacity
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately: TI-M6024)
DIN-Rail Mount
IP30 rated metal enclosure includes DIN-rail mounting bracket
Access Control
Features such as ACL MAC/port filtering 802.1X and RADIUS are compatible with layered access controls
Wide Temperature Range
Rated for a wide operating temperature range of -10° - 75° C (14° - 167° F)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets or Jumbo Frames (up to 10KB) for increased performance
|
