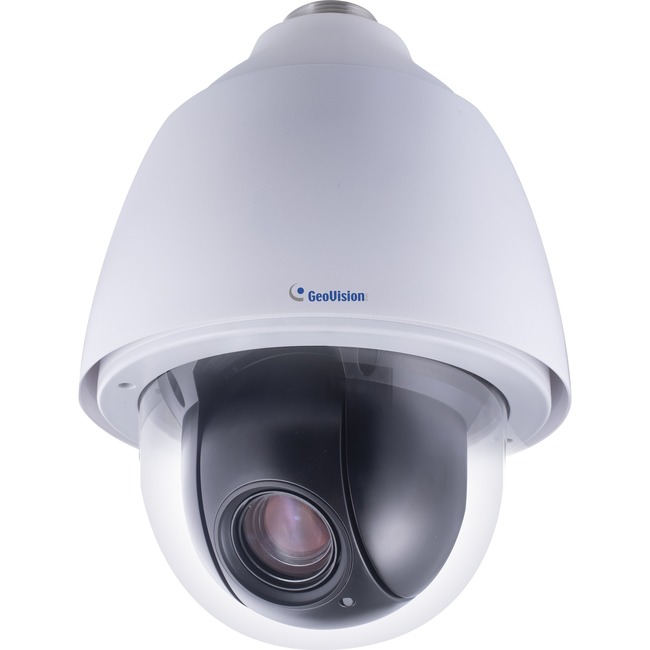

GeoVision GV-QSD5730-Outdoor 5 Megapixel Outdoor Network Camera - Color - Dome - MJPEG, H.264, H.265 - 2592 x 1944 - 4.60 mm- 152 mm Varifocal Lens - 33x Optical - CMOS - Wall Mount, Pendant Mount, Swan Neck Mount, Corner Mount, Pole Mount, Junction Box Mount, Straight Tube Mount - IK10 - IP66 - Vandal Resistant
MJPEG, H.264, H.265 - 2592 x 1944 - 4.60 mm- 152 mm Varifocal Lens - 33x Optical - CMOS - Wall Mount, Pendant Mount, Swan Neck Mount, Corner Mount, Pole Mount, Junction Box Mount, Straight Tube Mount - IK10 - IP66 - Vandal Resistant
| Field of View | Horizontal FOV: 55.4° ~ 1.9° |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66 |
| Maximum Aperture | f/1.6 |
| Minimum Focal Length | 4.60 mm |
| Minimum Operating Temperature | -40°F (-40°C) |
| Operating Humidity | 90% |
| Brand Name | GeoVision |
| Color Supported | Color |
| Connectivity technology | Wired |
| Diameter | 8.2" |
| Durability | Vandal Resistant |
| Effective Camera Resolution | 5 Megapixel |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Audio Compression |
| Features | PTZ |
| Features | Day/Night |
| Features | Removable IR Cut-off Filter |
| Features | Motion Detection |
| Features | 3D Digital Noise Reduction |
| Features | Automatic White Balance |
| Features | Wide Dynamic Range |
| Features | Privacy Masking |
| Features | Ingress Protection |
| Features | Electronic Image Stabilization |
| Features | Built-in Microphone |
| Features | SD Card Local Storage |
| Form factor | Dome |
| Image Sensor Type | CMOS |
| Input voltage | 24 V AC |
| Input voltage | 30 V DC |
| Lens Type | Varifocal |
| Longest Shutter Speed | 1 Second |
| Manufacturer | GeoVision Inc |
| Manufacturer Part Number | 125-QSD5730-020 |
| Manufacturer Website Address | http://www.geovision.com.tw |
| Marketing Information | The GV-IP Speed Dome (GV-QSD5730-Outdoor) is an outdoor network PTZ camera that offers 33x optical zoom and 10x digital zoom capable of showing smooth live view with great details. This camera can simultaneously deliver four video streams in resolutions up to 2592 x 1944 at 30 fps. The GV-QSD5730-Outdoor supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.
Wide surveillance coverage is made possible with 360° endless panning and -10°~100° tilting capacity. PTZ functions such as Preset Auto Pan and Patrol can be programmed and activated by schedule. The GV-QSD5730-Outdoor supports pan/tilt speeds ranging from a fast patrol of 400° and 300° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.
GV-QSD5730-Outdoor also features Servo Feedback and Electronic Image Stabilizer (EIS) technology. The Servo Feedback technology ensures the camera view returns to the previous position when encountering external force (e.g. human interference) or environmental vibration. EIS technology can effectively produce stable images by actively sensing directional movement of the images and compensating accordingly; this is particularly useful for cameras installed at places where environmental movement (e.g. strong wind the passing-by heavy vehicles) is constant and when high optical zoom is executed. |
| Maximum Focal Length | 152 mm |
| Maximum frame rate | 30 fps |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Video Resolution | 2592 x 1944 |
| Mount Type | Pole Mount |
| Mount Type | Swan Neck Mount |
| Mount Type | Corner Mount |
| Mount Type | Straight Tube Mount |
| Mount Type | Wall Mount |
| Mount Type | Pendant Mount |
| Mount Type | Junction Box Mount |
| Optical zoom | 33x |
| Package Contents | - 33x 5MP H.265 Low Lux WDR Pro Outdoor IR IP Speed Dome
- M4 Screw with Rubber
- 3-Pin Power Terminal Block (AC 24V)
- Pendant cap
- 14-Pin Alarm/Audio I/O Terminal Block
- Download Guide
- Warranty Card
|
| Product Model | GV-QSD5730-Outdoor |
| Product Name | 33x 5MP H.265 Low Lux WDR Pro Outdoor IR IP Speed Dome |
| Product Type | Network Camera |
| Shortest Shutter Speed | 1/100000 Second |
| Storage Type | Memory Card |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Video Signal Format | PAL |
| Video Signal Format | NTSC |
| Weight (Approximate) | 6.39 lb |
