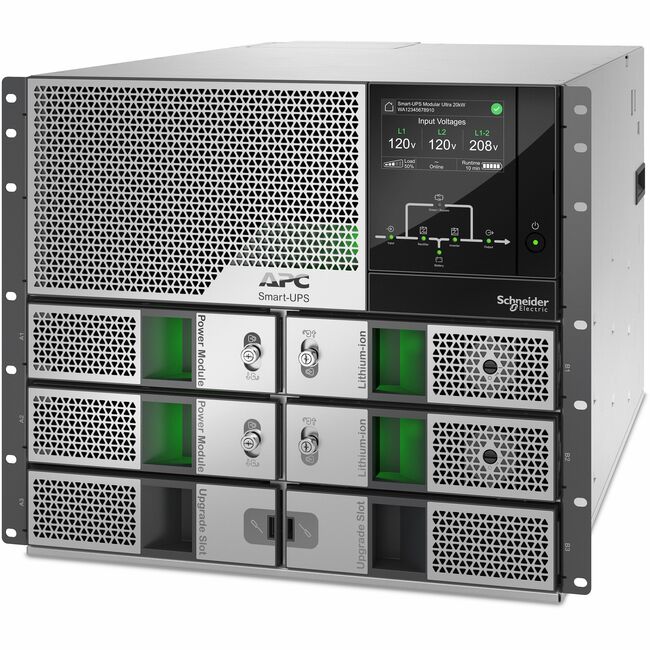

APC Smart-UPS Modular Ultra 10kW Scalable to 20kW N+1 Rackmount 208/240V - APC Smart-UPS Modular Ultra On-Line 10kW 9U Rackmount, Scalable to 20kW N+1 Redundant, 208/240V, Touchscreen, Network Management Card
APC Smart-UPS Modular Ultra On-Line 10kW 9U Rackmount, Scalable to 20kW N+1 Redundant, 208/240V, Touchscreen, Network Management Card
| Battery Energy | 4665.6 kJ |
| Input Power Factor | 0.5 |
| Load Capacity (VA) | 10000 VA |
| Load Capacity (Watt) | 10 kW |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 49212.60 ft |
| Storage Relative Humidity | 0% - 95% |
| Waveform Type | Sine Wave |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Brand Name | APC by Schneider Electric |
| Depth | 27.6" |
| Display | LCD |
| Environmental Certification | REACH |
| Environmental Certification | ENERGY STAR 2.0 |
| Environmental Certification | China RoHS |
| Environmental Certification | Green Premium |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Height | 15.4" |
| Input frequency | 70 Hz |
| Input voltage | 230 V AC |
| Limited Warranty | 5 Year |
| Load Capacity | 10000 VA/10 kW |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRYL10K20RMXLT |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Marketing Information | Smart-UPS™ Modular Ultra provides up to 2.5x more power density in half the size and weight of comparable UPSs. Its modular design allows you to scale power or runtime as your business needs change*. The 125A chassis supports up to 20kW of power protection. The most sustainable modular UPS of its kind featuring best-in-class embodied carbon reduction allows you to save money on Total Cost of Ownership compared to VRLA UPSs.
The APC Smart-UPS Modular Ultra 10kW scalable to 20kW with 120/208/240V split phase output. Its next generation semiconductor technology delivers up to 20kW in half the size of comparable UPSs. In addition to long lasting Lithium-ion batteries the weight is reduced by 60% in comparison to Lead Acid VRLA UPS. With the Embedded Network port you can monitor and manage your UPS anytime anywhere.
Modular scalable redundant With 10kW of scalable single phase power protection in 9U Smart-UPS Modular Ultra gives you more room and 2.5x more power for IT equipment than comparable Modular UPS. 3x the life with Lithium-ion batteries Lithium-ion lasts 3x longer than VRLA batteries and under normal operating conditions will not need replacement for the life of the UPS. Meaning you can save battery replacement AND labor costs up to 3x! Visibility anytime anywhere Secure cloud monitoring with the EcoStruxure Ready Smart-UPS. PowerChute software for convenient monitoring and control. Certainty in a connected world Trusted for over 40 years Schneider Electric's APC Brand has 120 million single-phase UPS installed worldwide. APC products are available in over 160 countries with 250 Service locations. More from the Manufacturer |
| Maximum Operating Temperature | 104°F (40°C) |
| Network Management | Network Card |
| Number of Batteries | 2 |
| Output voltage | 240 V AC |
| Output voltage | 208 V AC |
| Output voltage | 120 V AC |
| Packaged Quantity | 1 Pack |
| Plug/Connector Type | Hard Wire 4-wire (2PH+N+G) |
| Product color | Silver |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS Modular Ultra 10kW Scalable to 20kW N+1 Rackmount 208/240V |
| Product Name | Smart-UPS 10000VA Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Rack Height | 9U |
| Sound Emission | 60 dB |
| UPC Alternates | 731304420088 |
| Weight (Approximate) | 201.72 lb |
| Width | 17.3" |
