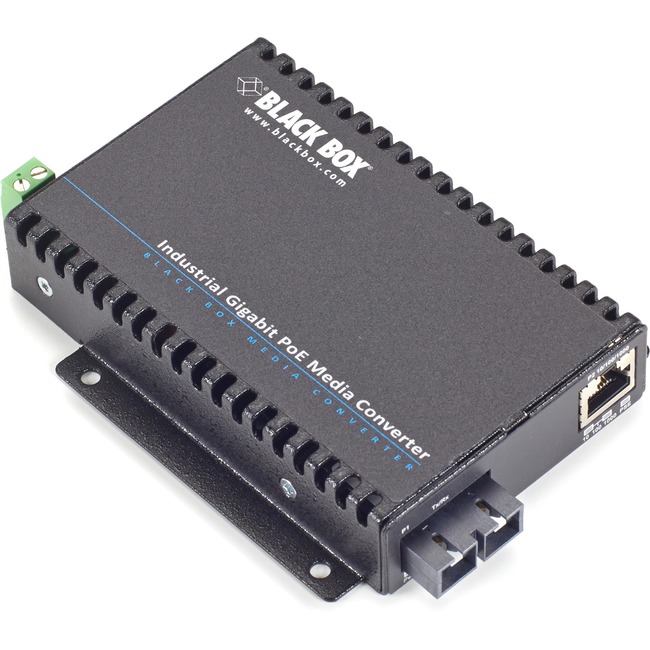

Black Box LGC5300 Transceiver/Media Converter - New - 1x PoE (RJ-45) Ports - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 1000Base-T, 1000Base-X - Tabletop, Wall Mountable, DIN Rail Mountable, Rack-mountable - TAA Compliant
New - 1x PoE (RJ-45) Ports - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 1000Base-T, 1000Base-X - Tabletop, Wall Mountable, DIN Rail Mountable, Rack-mountable - TAA Compliant
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Wavelength | 850 nm |
| Maximum Distance Supported | 1640.42 ft |
| PoE Port Type | PSE |
| Brand Name | Black Box |
| Country of origin | United States |
| Depth | 6" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS 2 |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Wall Mountable |
| Form factor | DIN Rail Mountable |
| Form factor | Rack-mountable |
| Form factor | Tabletop |
| Height | 1" |
| Limited Warranty | 2 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LGC5301A |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | It supports PoE (IEEE 802.3af) and provides up to 15.4W of power per UTP port. It also converts 10/100/1000BASE-T UTP to 1000BASE-X fiber. Because it is Power Sourcing Equipment (PSE) it can link faraway PoE devices via your standard Ethernet cable.
The converter operates in extreme temperatures of -40° to +65° C and is ideal for powering PDs such as security cameras wireless access points security cameras building access devices and automation equipment in harsh environments. It is especially useful at powering devices in hard-to-reach locations with limited access to AC power outlets such as ceilings closets even the factory floor. The cost of running electrical power to each device is eliminated by sending power over the Ethernet cable.
Other features include link modes which can propagate link faults from fiber to copper and copper to fiber. A PoE power reset function disables the power output in the case of a link failure on the receiving end. This gives the powered device two seconds to re-initialize.
These compact media converters can be tabletop mounted wall-mounted or DIN-rail mounted using an optional DIN-rail mounting kit. They can also be mounted on a 1U 19" rackmount shelf.
This product is covered by one or more of the following: United States Patent Nos. 7457250; 8902760; and/or 9019838. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 1000Base-X |
| Network Technology | 1000Base-T |
| Package Contents | - LGC5300 Transceiver/Media Converter
- 1 x Cable Strain Relief Kit
- 1 x Plastic Cable Clamp
- 2 x Washers
- 1 x Lock
- 1 x Flat
- 1 x 3-Position Phoenix Connector
|
| Packaged Quantity | 1 |
| Plug/Connector Type | Terminal Block |
| Power source | DC |
| Product Condition | New |
| Product Name | LGC5300 Transceiver/Media Converter |
| Product Series | LGC5300 |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| UPC Alternates | 822088108016 |
| Weight (Approximate) | 1.10 lb |
| Width | 4.5" |
