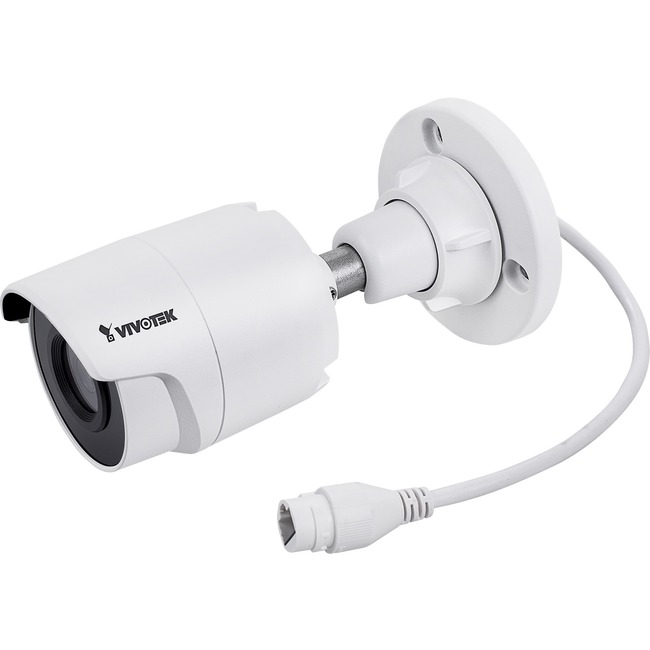

Vivotek IB9380-H 5 Megapixel Outdoor HD Network Camera - Bullet - TAA Compliant - 98.43 ft Night Vision - H.265, H.264, MJPEG - 2560 x 1920 Fixed Lens - CMOS - Pole Mount, Corner Mount, Junction Box Mount
98.43 ft Night Vision - H.265, H.264, MJPEG - 2560 x 1920 Fixed Lens - CMOS - Pole Mount, Corner Mount, Junction Box Mount
| Indoor/Outdoor | Outdoor |
| Network (RJ-45) | Yes |
| Night Vision Distance | 98.43 ft |
| Number of IR LEDs | 2 |
| Brand Name | Vivotek |
| Color Supported | Monochrome |
| Color Supported | Color |
| Connectivity technology | Wired |
| Diameter | 3.6" |
| Effective Camera Resolution | 5 Megapixel |
| Form factor | Bullet |
| Height | 6.9" |
| Image Sensor Type | CMOS |
| Input voltage | 12 V DC |
| Length | 7" |
| Lens Type | Fixed |
| Limited Warranty | 24 Month |
| Manufacturer | Vivotek Inc |
| Manufacturer Part Number | IB9380-H |
| Manufacturer Website Address | http://www.vivotek.com |
| Marketing Information | Key Features
- H.265 Compression Technology
- 20 fps @ 2560x1920 (WDR Pro on)
- SNV (Supreme Night Visibility) for Low Light Conditions
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in IR Illuminators Effective up to 30 Meters
- Trend Micro IoT Security
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Overview VIVOTEK's IB9380-H is a H.265 outdoor bullet network camera equipped with a 5-Megapixel sensor enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology the IB9380-H is capable of capturing high-quality imagery in both high contrast and low light environments.
The IB9380-H deploys a 3.6mm lens and is equipped with IR illuminators with a 30-meter effective range for better night visibility. Further to provide reliable coverage in harsh outdoor environments the IB9380-H is encased in IP66 and IK10 housing.
By employing VIVOTEK's Smart Stream III technology and H.265 codec support the IB9380-H is able to reduce bandwidth usage by up to 90% while maintaining supreme image quality. Additionally the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market. |
| Maximum Focal Length | 3.60 mm |
| Maximum frame rate | 20 fps |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Video Resolution | 2560 x 1920 |
| Mount Type | Junction Box Mount |
| Mount Type | Corner Mount |
| Mount Type | Pole Mount |
| Package Contents | - Bullet Network Camera
- Quick Installation Guide
- Alignment Sticker
- Screw Pack
- Cable Gland
|
| Product color | White |
| Product Name | Bullet Network Camera |
| Product Series | C |
| Product Type | Network Camera |
| Recording Formats | HD |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Video Formats | H.265 |
| Weight (Approximate) | 1.17 lb |
