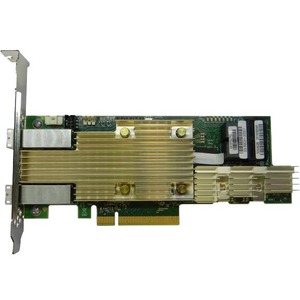

Intel Tri-mode PCIe/SAS/SATA Full-Featured RAID Adapter, 8 Internal & 8 External Ports - 12Gb/s SAS, Serial ATA/600 - PCI Express 3.0 x8 - Plug-in Card - RAID Supported - 0, 1, 10, 5, 50, 6, 60, JBOD RAID Level - 4 x SFF-8643 - 16 Total SAS Port(s) - 8 SAS Port(s) Internal - 8 SAS Port(s) External - Linux, PC - 4 GB
12Gb/s SAS, Serial ATA/600 - PCI Express 3.0 x8 - Plug-in Card - RAID Supported - 0, 1, 10, 5, 50, 6, 60, JBOD RAID Level - 4 x SFF-8643 - 16 Total SAS Port(s) - 8 SAS Port(s) Internal - 8 SAS Port(s) External - Linux, PC - 4 GB
| Cache Memory | 4 GB |
| Cache Memory | 4 GB |
| Number of SAS Ports (Internal) | 8 |
| Number of SAS Ports (Internal) | 8 |
| SAS Connector Details | 4 x SFF-8643 |
| SAS Connector Details | 4 x SFF-8643 |
| Total Number of SAS Ports | 16 |
| Total Number of SAS Ports | 16 |
| Brand Name | Intel |
| Brand Name | Intel |
| Controller Type | 12Gb/s SAS |
| Controller Type | Serial ATA/600 |
| Controller Type | 12Gb/s SAS |
| Controller Type | Serial ATA/600 |
| Form factor | Plug-in Card |
| Form factor | Plug-in Card |
| Host interface | PCI Express 3.0 x8 |
| Host interface | PCI Express 3.0 x8 |
| Manufacturer | Intel Corporation |
| Manufacturer | Intel Corporation |
| Manufacturer Part Number | RSP3MD088F |
| Manufacturer Part Number | RSP3MD088F |
| Manufacturer Website Address | http://www.intel.com |
| Manufacturer Website Address | http://www.intel.com |
| Marketing Information | The Intel® RAID Adapter RSP3MD088F is designed for use in content and web hosting appliances security appliances financial institutions cloud service providers and enterprise IT. Its standard low-profile MD2 form factor is designed for use in both Intel and third-party server products. It supports RAID levels 0/1/10/5/50/6/60 and optional maintenance-free cache backup with 4 GB DDR4. With eight internal and eight external ports the Intel® RAID Adapter RSP3MD088F supports NVMe SAS and SATA connections to expanders and external JBODs for highly customized hybrid configurations. The Intel® RAID Adapter RSP3MD088F provides performance and scalability with high uptime for mass storage with maximum reliability for high-intensity workloads. |
| Marketing Information | The Intel® RAID Adapter RSP3MD088F is designed for use in content and web hosting appliances security appliances financial institutions cloud service providers and enterprise IT. Its standard low-profile MD2 form factor is designed for use in both Intel and third-party server products. It supports RAID levels 0/1/10/5/50/6/60 and optional maintenance-free cache backup with 4 GB DDR4. With eight internal and eight external ports the Intel® RAID Adapter RSP3MD088F supports NVMe SAS and SATA connections to expanders and external JBODs for highly customized hybrid configurations. The Intel® RAID Adapter RSP3MD088F provides performance and scalability with high uptime for mass storage with maximum reliability for high-intensity workloads. |
| Platform Supported | PC |
| Platform Supported | Linux |
| Platform Supported | PC |
| Platform Supported | Linux |
| Product Name | Tri-mode PCIe/SAS/SATA Full-Featured RAID Adapter 8 Internal & 8 External Ports |
| Product Name | Tri-mode PCIe/SAS/SATA Full-Featured RAID Adapter 8 Internal & 8 External Ports |
| Product Type | NVMe Controller |
| Product Type | NVMe Controller |
| RAID Levels | 6 |
| RAID Levels | 60 |
| RAID Levels | JBOD |
| RAID Levels | 0 |
| RAID Levels | 1 |
| RAID Levels | JBOD |
| RAID Levels | 50 |
| RAID Levels | 10 |
| RAID Levels | 5 |
| RAID Levels | 50 |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| RAID Levels | 60 |
| RAID Levels | 6 |
| RAID Supported | Yes |
| RAID Supported | Yes |
| UPC Alternates | 675901436700 735858329194 |
| UPC Alternates | 675901436700 735858329194 |
