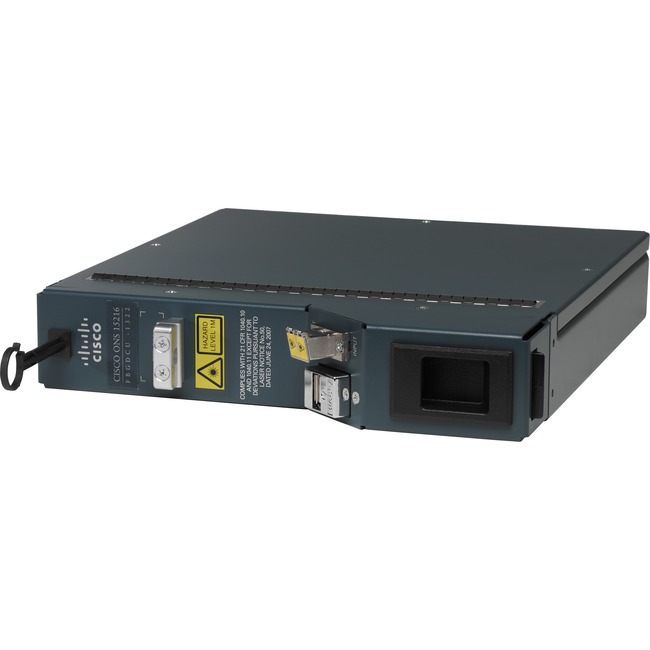

Cisco DCU-550 Dispersion Compensation Unit
New
Cisco DCU-550 Dispersion Compensation Unit
| Additional Information | Compen-sation Level (ps/nm): 550 Maximum IL (dB): 3.9 Maximum Polari-zation Mode Dispersion (PMD) (ps): < 1 ps Maximum Polarization Dependent Loss (PDL) (dB): < 0.1 Maximum Optical Return Loss (ORL) (dB):> 45 Maximum Length (km): 5.24 Reference Wave-length (nm): 1545.32 Relative Disper-sion Slop (nm): 0.0037 Wavelength Range (nm): 1525-1565 |
| Additional Information | Compen-sation Level (ps/nm): 550 Maximum IL (dB): 3.9 Maximum Polari-zation Mode Dispersion (PMD) (ps): < 1 ps Maximum Polarization Dependent Loss (PDL) (dB): < 0.1 Maximum Optical Return Loss (ORL) (dB):> 45 Maximum Length (km): 5.24 Reference Wave-length (nm): 1545.32 Relative Disper-sion Slop (nm): 0.0037 Wavelength Range (nm): 1525-1565 |
| Brand Name | Cisco |
| Brand Name | Cisco |
| Depth | 9.8" |
| Depth | 9.8" |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Height | 1.6" |
| Height | 1.6" |
| Manufacturer | Cisco Systems Inc |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | 15216-DCU-550= |
| Manufacturer Part Number | 15216-DCU-550= |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | As metropolitan (metro) transport networks grow from 2.5-generation (2.5G) services to 10G and eventually 40G the underlying optical systems need to compensate for the lower chromatic dispersion tolerances on the 10G and 40G interfaces. In optical networks the dispersion compensation unit (DCU) compensates for accumulated chromatic dispersion effect in fiber. It provides a flexible solution for accumulated chromatic dispersion without dropping and regenerating the wavelengths on the link a process that would otherwise be necessary when accumulated chromatic dispersion exceeds the maximum allowed dispersion tolerance. To provide effective compensation the DCU is designed to operate over the entire band from 1525 to1565 nm. |
| Marketing Information | As metropolitan (metro) transport networks grow from 2.5-generation (2.5G) services to 10G and eventually 40G the underlying optical systems need to compensate for the lower chromatic dispersion tolerances on the 10G and 40G interfaces. In optical networks the dispersion compensation unit (DCU) compensates for accumulated chromatic dispersion effect in fiber. It provides a flexible solution for accumulated chromatic dispersion without dropping and regenerating the wavelengths on the link a process that would otherwise be necessary when accumulated chromatic dispersion exceeds the maximum allowed dispersion tolerance. To provide effective compensation the DCU is designed to operate over the entire band from 1525 to1565 nm. |
| Product Family | ONS 15200 |
| Product Family | ONS 15200 |
| Product Line | ONS |
| Product Line | ONS |
| Product Model | DCU-550 |
| Product Model | DCU-550 |
| Product Name | DCU-550 Dispersion Compensation Unit |
| Product Name | DCU-550 Dispersion Compensation Unit |
| Product Series | 15200 |
| Product Series | 15200 |
| Product Type | Dispersion Compensation Unit |
| Product Type | Dispersion Compensation Unit |
| UPC Alternates | 746320856094 |
| UPC Alternates | 746320856094 |
| Weight (Approximate) | 7.72 lb |
| Weight (Approximate) | 7.72 lb |
| Width | 8.2" |
| Width | 8.2" |
