Dataram 8GB DDR4 SDRAM Memory Module - 8 GB (1 x 8GB) - DDR4-2933/PC4-23466 DDR4 SDRAM - 2933 MHz - CL21 - 1.20 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty
8 GB (1 x 8GB) - DDR4-2933/PC4-23466 DDR4 SDRAM - 2933 MHz - CL21 - 1.20 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty
| CAS Latency | CL21 |
| Error Checking | ECC |
| Memory Size | 8 GB |
| Memory Standard | DDR4-2933/PC4-23466 |
| Number of Modules | 1 x 8GB |
| Signal Processing | Registered |
| Brand Name | Dataram |
| Environmental Certification | WEEE |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | DIMM |
| Length | 5.3" |
| Limited Warranty | Lifetime |
| Manufacturer | Dataram Corporation |
| Manufacturer Part Number | DTM68147-S |
| Manufacturer Website Address | http://www.dataram.com |

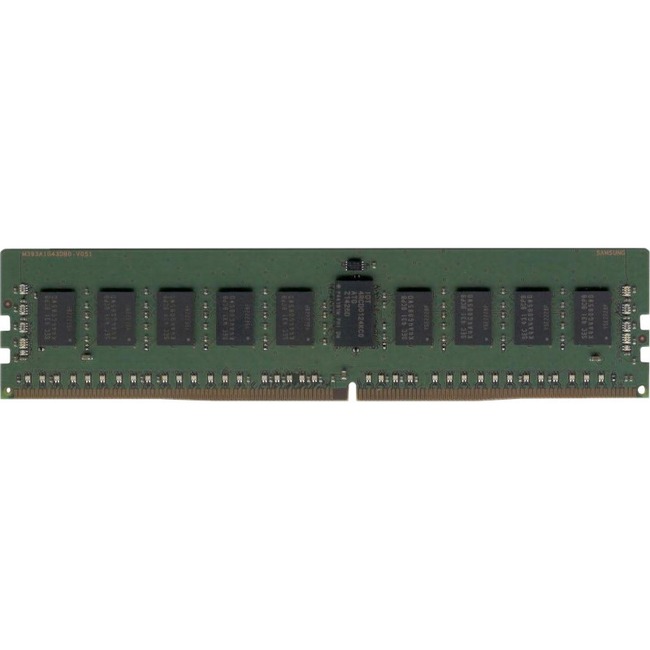

| Marketing Information | DTM68147-S is a registered 1Gx72 memory module which conforms to JEDEC's PC4-2933Y standard. The assembly is Single-Rank with a rank containing: nine Samsung 1Gbx8 DDR4- 2933Y SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL with Address and Command Parity is also used. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C. |
| Memory Speed | 2933 MHz |
| Memory Technology | DDR4 SDRAM |
| Memory voltage | 1.20 V |
| Number of pins | 288-pin |
| Product Name | 8GB DDR4 SDRAM Memory Module |
| Product Type | RAM Module |
| Thickness | 156.7 mil |
| Width | 1.2" |
