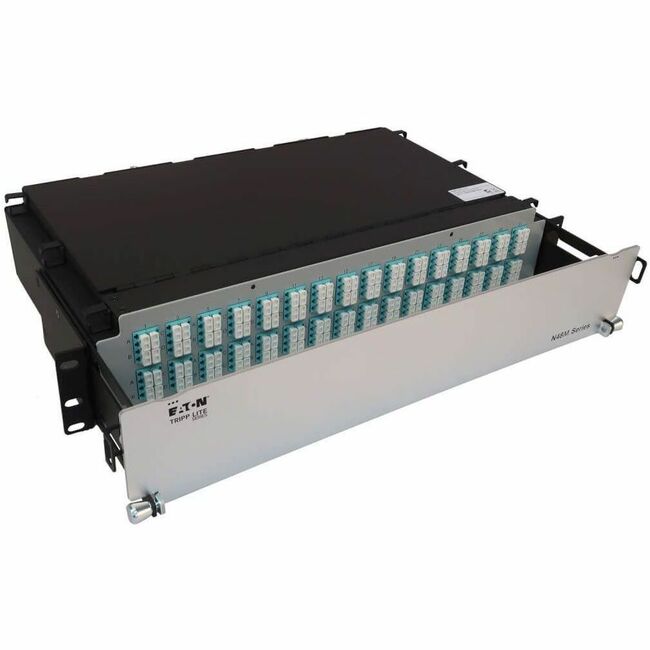

Tripp Lite Preloaded Fiber Panel 2U 32x12F MTP/MPO-PC 4xLC F/F OM4 MMF 3M

New

Tripp Lite Preloaded Fiber Panel 2U 32x12F MTP/MPO-PC 4xLC F/F OM4 MMF 3M - 128 x Duplex - 2U High - Aqua - 19" Wide - Rack-mountable

0 Review(s) Item: N48M-32M8L4-03 | By: Tripp Lite | 0 In Stock

Sorry This Product is Currently not Available to Buy.

32 MTP/MPO-to-LC 8-fiber OM4 multimode cables come coiled inside for instant use
Use only as much cable as you need; store the remainder inside to avoid clutter
Flexible cable length allows reuse of cables if equipment is moved
128 LC Duplex ports protected by fold-down front panel with organization labels
Aluminum chassis mounts into 2U of space in EIA-standard 19 in. racks

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Tripp Lite Preloaded Fiber Panel 2U 32x12F MTP/MPO-PC 4xLC F/F OM4 MMF 3M - 128 x Duplex - 2U High - Aqua - 19" Wide - Rack-mountable
128 x Duplex - 2U High - Aqua - 19" Wide - Rack-mountable

Product Specifications

Compatible Rack Unit	2U
Compatible Rack Width	19"
LC Port Type	Duplex
Number of LC Ports	128
Product Material	Aluminum
Additional Information	OVERVIEW Technology MTP/MPO; Multimode Optical Mode OM4 Panel Cable Number 32 Panel Cable Length (m) 3 Fiber Panel Ports (128) LC Duplex; (32) MTP/MPO Mode Type Multimode Firmware / Software Docs Offset Ports No PHYSICAL Cable Jacket Rating OFNP Cable Outer Diameter (OD) 2.9MM Clad Diameter (micron) 125 Core Diameter (micron) 50 Primary Coating Diameter (micron) 245 Number of Fibers 8 Cable Length (ft.) 9.8 Cable Length (m) 2.99 Cable Length (in.) 118.1 Minimum Bend Radius 20MM (DYNAMIC); 10MM (STATIC) COMMUNICATIONS Network Compatibility 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps Wavelength 1300nm; 850nm Attenuation @ 850NM 3.0dB/KM Attenuation @ 1300NM 1.0dB/KM Insertion Loss MTP/MPO: 0.35dB; LC: 0.20dB
Brand Name	Tripp Lite
Country of origin	China
Depth	13"
Environmental Certification	REACH
Environmental Certification	RoHS
Environmentally Friendly	Yes

Form factor	Rack-mountable
Height	5.2"
Limited Warranty	Lifetime
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	N48M-32M8L4-03
Manufacturer Website Address	http://www.tripplite.com
Marketing Information	2U patch panel comes preloaded with spools of multimode fiber cable that allow you to extend the exact length required and store the excess out of sight. Description Preloaded Fiber Patch Panel 2U - 32x (12F MTP/MPO-PC to 4x LC Duplex F/F) 8F Trunk Cables OM4 Multimode 3 m (9.8 ft.) Features 2U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time All necessary cabling is included with this preloaded fiber panel coiled inside and ready for immediate use. The aluminum 2U chassis features 32 MTP/MPO-PC to LC Duplex 8-fiber multimode trunk cables all three meters (9.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved. Integrates Equipment to Meet Current Connectivity Needs This preloaded slack-free panel helps integrate your 10 Gb equipment with 40 Gb networks or 25 Gb equipment with 100 Gb networks in a simple elegant and flexible manner. The N48M-32M8L4-03 mounts in just 2U of space in an EIA-standard 19-inch rack.
Package Contents	N48M-32M8L4-03 Preloaded Fiber Patch Panel 32 x MTP/MPO-PC to LC Duplex Trunk Cables 3 m (9.8 ft.) Installation Guide
Product color	Aqua
Product Name	N48M-32M8L4-03 Preloaded Fiber Patch Panel
Product Type	Network Patch Panel
UPC Alternates	037332262226
Width	17.4"
