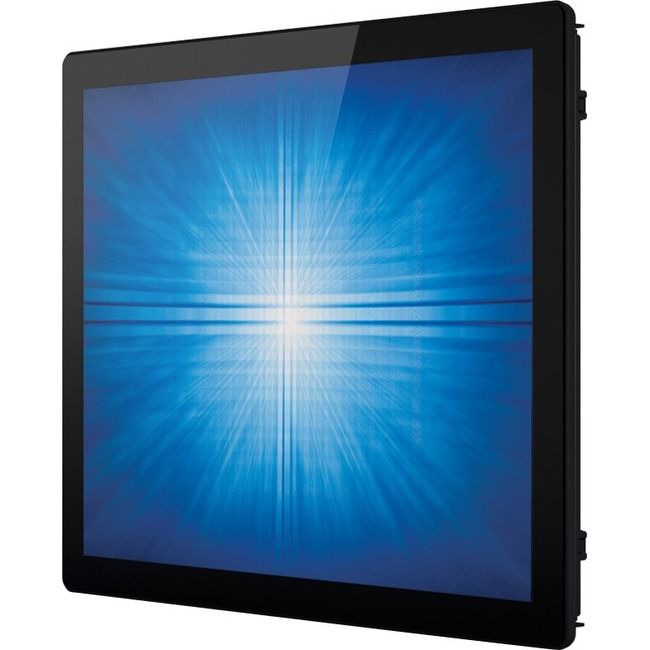

Elo 1991L 19" Open-frame LCD Touchscreen Monitor - 5:4 - 14 ms - 19" Class - IntelliTouch Surface Wave - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - TÜV, RoHS, China RoHS, WEEE - 3 Year
19" Class - IntelliTouch Surface Wave - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - TÜV, RoHS, China RoHS, WEEE - 3 Year
| Touchscreen Type | IntelliTouch Surface Wave |
| Aspect ratio | 5:4 |
| Backlight Technology | LED |
| Brand Name | Elo |
| Brightness | 250 Nit |
| Color Supported | 16.7 Million Colors |
| Contrast Ratio | 1000:1 |
| Depth | 2" |
| Environmental Certification | China RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | TÜV |
| Environmentally Friendly | Yes |
| Height | 13.5" |
| Limited Warranty | 3 Year |
| Manufacturer | Elo Touch Solutions Inc |
| Manufacturer Part Number | E328700 |
| Manufacturer Website Address | http://www.elotouch.com |
| Marketing Information | The Elo 1991L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art energy-saving LED backlight using less electricity to operate and generating less heat. This compact display is designed for touch with proven Elo expertise and reliability built in. The 1991L provides stable drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel the open-frame touchscreen instantly grabs and holds the users' attention for kiosks casino and amusement retail self-service and industrial automation environments. Easily integrated. The touchscreen is sealed against dirt dust and liquids which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs. Touch ready. The 1991L is available with a choice of industry-leading touch technologies in both single touch and multi touch versions. This seamless zero-bezel 19-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel single-touch display options include AccuTouch® five-wire resistive IntelliTouch® SAW or SecureTouch® anti-vandal SAW. Commercial-grade. The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50000 MTBF. Other features. - Viewing angle of 178° (h) x 178° (v) for sharp colors and graphics in both portrait and landscape modes
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Display Port and VGA video interfaces
|
| Maximum resolution | 1280 x 1024 |
| Mount Type | Rack-mountable |
| Mount Type | Front Mount |
| Operating Power Consumption | 17 W |
| Package Contents | - 1991L 19" Open Frame Touchscreen (Rev B)
- HDMI cable
- VGA Cable
- RJ45 OSD Remote
- Touch USB Cable
- User Manual CD
- Quick Install Guide
- "L" (Side Mount) Brackets and w/Screws
- EEI Label
- Japan Class-B TM info sheet
|
| Product color | Black |
| Product Model | 1991L |
| Product Name | 1991L 19" Open Frame Touchscreen (Rev B) |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Response time | 14 ms |
| Screen Mode | SXGA |
| UPC Alternates | 162447498847 815335025884 818213928314 818214093684 818214887931 818239704961 |
| Viewable Screen Size | 19" |
| Weight (Approximate) | 10.14 lb |
| Width | 16.3" |
