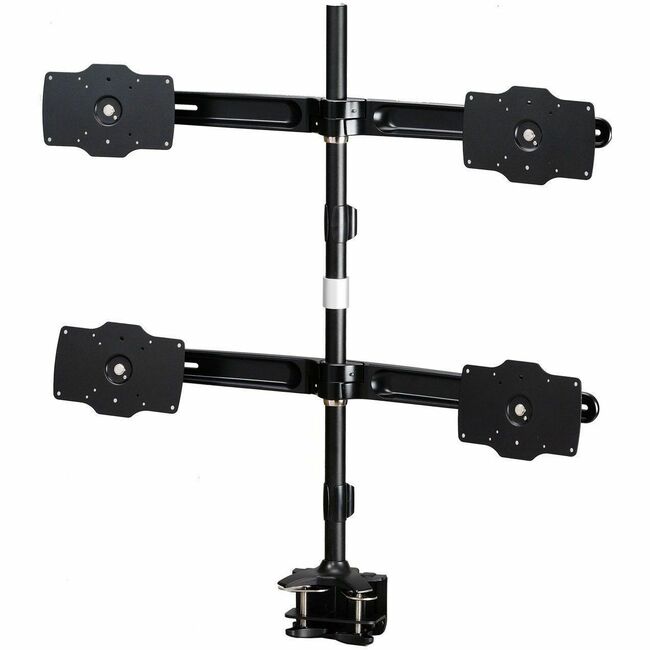

Amer Mounts Clamp Based Quad Monitor Mount for four 24"-32" LCD/LED Flat Panel Screens - Supports up to 26.5lb monitors, +/- 20 degree tilt, and VESA 75/100
Supports up to 26.5lb monitors, +/- 20 degree tilt, and VESA 75/100
| Product Material | Plastic |
| Product Material | Steel |
| Product Material | Aluminum Alloy |
| VESA Mount Standard | 100 x 100 |
| VESA Mount Standard | 75 x 75 |
| VESA Mount Standard | 200 x 100 |
| Additional Information | - Tilt: Max. + / -15° (For each "Hinge")
- Swivel: Max. +/-20° (For each "Hinge")
- Rotate(Pivot): 360°(For each "Hinge")
- Screw Type: M4 M5 M6 M8
- Easy Install
|
| Adjustable Height | Yes |
| Brand Name | Amer Mounts |
| Compatibility | 4 x LCD Monitor |
| Country of origin | Taiwan |
| Depth | 5.7" |
| Device Supported | Flat Panel Display |
| Features | Pivot |
| Features | Cable Management |
| Features | Swivel |
| Features | Smart Torque Adjustment |
| Features | Rotate |
| Features | Tilt |
| Height | 38" |
| Length | 26.7" |
| Limited Warranty | 3 Year |
| Manufacturer | Amer Networks Inc |
| Manufacturer Part Number | AMR4C32 |
| Manufacturer Website Address | http://www.amermounts.com |
| Marketing Information | This incredibly versatile product supports up to four 32" monitors each with a maximum individual weight of 26.5 lbs. Not only will this strong and sturdy mount have no trouble holding VESA certified 75x75 or 100x100 monitors (fitting the above criteria) it is also extremely adjustable! - Each monitor can be placed at a different height to accommodate different sized monitors
- All four monitors have 360º rotation (meaning landscape portrait or anything in-between)
- Also included is a +/- 20º tilt in any direction Individually for ALL 4 Monitors ensuring maximum user comfort
- Height adjustable with a maximum height of approximately 36.6" from the desk to the center of the highest mounting device
Benefits of Clamp Mounting: Clamp Bases are an excellent mounting option! They are screwed onto the edge of a desk for maximum space. (Clamp bases require a lip on the desk 8-50 mm thick and 85 mm deep) - They are the sturdiest mount of the three kinds (stand clamp and grommet)
- They take up the least amount of desk space (So much more room for activities!)
|
| Maximum Adjustable Height | 36.60" |
| Maximum Load Capacity | 106 lb |
| Maximum Screen Size Supported | 32" |
| Minimum Screen Size Supported | 24" |
| Product color | Black |
| Product Name | Clamp Based Quad Monitor Mount. Up to 32" 26.5lb monitors |
| Product Type | Desk Mount |
| UPC Alternates | 650177303093 818242669820 |
| Weight (Approximate) | 22.60 lb |
| Width | 42" |
