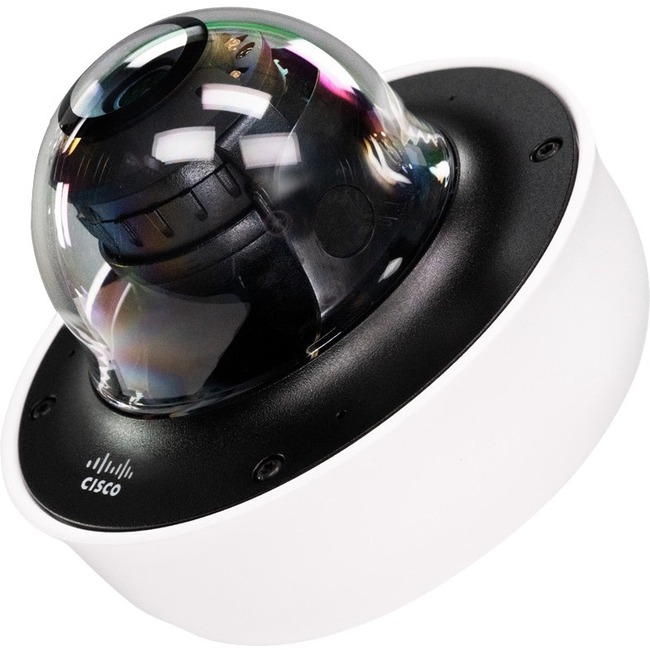

Meraki MV63X 8.4 Megapixel Outdoor Network Camera - Color - Mini Dome - 65.62 ft Infrared Night Vision - H.264 - 3854 x 2176 - 3.30 mm Fixed Lens - CMOS - Wall Mount, Ceiling Mount, Corner Mount, Conduit Mount, Pendant Mount, Pole Mount, Box Mount - IK10+ - IP67
65.62 ft Infrared Night Vision - H.264 - 3854 x 2176 - 3.30 mm Fixed Lens - CMOS - Wall Mount, Ceiling Mount, Corner Mount, Conduit Mount, Pendant Mount, Pole Mount, Box Mount - IK10+ - IP67
| Field of View | horizontal 102° |
| Impact Protection Rating | IK10+ |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP67 |
| Maximum Aperture | f/2.0 |
| Network (RJ-45) | Yes |
| Night Vision Distance | 65.62 ft |
| Night Vision Type | Infrared |
| Brand Name | Meraki |
| Color Supported | Color |
| Connectivity technology | Wired & Wireless |
| Diameter | 5.2" |
| Effective Camera Resolution | 8.4 Megapixel |
| Features | Built-in IR LED |
| Features | Built-in Microphone |
| Features | Built-in Infrared Illuminator |
| Features | Day/Night |
| Form factor | Mini Dome |
| Height | 3.7" |
| Image Sensor Type | CMOS |
| Lens Type | Fixed |
| Limited Warranty | 5 Year |
| Longest Shutter Speed | 1/30 Second |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | MV63-HW |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The Meraki MV63 part of the third generation of MV smart cameras combines physical security and advanced analytics in a powerful yet compact fixed-lens mini dome form factor. With an edge architecture that minimizes physical infrastructure and software requirements MV63 enables faster easier deployments and greater scalability.
Security in high definition
The ultra-high-performance MV63 series camera supports up to 4K resolution for highdefinition video delivering the level of detail needed to stay on top of what matters.With IK10+ and IP67 ratings plus IR illumination the MV63 extends visibility and safety to outdoor and demanding environments
Compact and easy to install MV63 series cameras are compatible with a variety of mounting accessories delivering the right viewing angle wherever they are placed. MV63 series cameras are ideal for monitoring entrances and exits as well as the general perimeter from walls ceilings or even corner-mount locations.
Using machine-learning based computer vision MV63 cameras can perform real-time object detection classification and tracking of people and vehicles to increase safety and provide useful insights into activity. These smart cameras deliver powerful business intelligence without compromising physical security
- Fixed lens mini-dome camera
- Compact form factor with 102° horizontal FoV
- More detailed information with up to 4K resolution
- Night vision with IR illumination up to 20 m (66 ft)
- IK10+ and IP67 for deployment in outdoor and demanding environments
- Intelligent motion indexing with search engine
- Built-in analytics like motion search motion recap and motion heatmaps
- Machine-learning capability for intelligent object detection
- Secure video access to ensure privacy with role-based user accounts
- Cloud-augmented edge storage for minimal physical infrastructure
|
| Maximum Focal Length | 3.30 mm |
| Maximum frame rate | 24 fps |
| Maximum Video Resolution | 3854 x 2176 |
| Mount Type | Wall Mount |
| Mount Type | Pendant Mount |
| Mount Type | Pole Mount |
| Mount Type | Corner Mount |
| Mount Type | Conduit Mount |
| Mount Type | Ceiling Mount |
| Mount Type | Box Mount |
| Package Contents | - MV63 Cloud-Managed Smart Camera
- Quick-start and Installation Guide
- MV Camera Hardware
- Wall-mounting kit
|
| Power source type | PoE |
| Product Model | MV63X |
| Product Name | MV63 Cloud-Managed Smart Camera |
| Product Type | Network Camera |
| Shortest Shutter Speed | 1/32000 Second |
| Storage Type | Cloud |
| UPC Alternates | 810087201920 |
| Video Formats | H.264 |
| Weight (Approximate) | 2.03 lb |
