| Number of Input Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Transmitter Depth | 2.76" |
| Transmitter Depth | 2.76" |
| Transmitter Height | 0.79" |
| Transmitter Height | 0.79" |
| Transmitter Weight (Approximate) | 1.87 lb |
| Transmitter Weight (Approximate) | 1.87 lb |
| Transmitter Width | 4.33" |
| Transmitter Width | 4.33" |
| Certifications & Standards | TAA |
| Certifications & Standards | TAA |
| Connectivity technology | Wired |
| Connectivity technology | Wired |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Graphics Modes | WUXGA |
| Graphics Modes | WUXGA |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | C2G |
| Manufacturer | C2G |
| Manufacturer Part Number | 29367 |
| Manufacturer Part Number | 29367 |
| Manufacturer Website Address | http://www.cablestogo.com |
| Manufacturer Website Address | http://www.cablestogo.com |
| Marketing Information | The VGA+3.5mm Audio over UTP Box Transmitter when used in conjunction with a receiver (29366 or 29368 - NOT INCLUDED) allows you to extend a VGA signal over two Cat5/Cat5e/Cat6 unshielded twisted pair cables up to 300ft without signal degradation at 1920x1200 or 1920x1080 resolutions. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. The transmitter and receiver come in either wall plate or box form factors and are inter-operable allowing you to choose the form factors that are best suited for the application. In addition this solution utilizes phantom power providing you the flexibility to power at either the transmitter or receiver end. The EDID copy feature ensures compatibility with any monitor. Built-In power surge protection and high ground loop immunity ensure high performance signal extension. |
| Marketing Information | The VGA+3.5mm Audio over UTP Box Transmitter when used in conjunction with a receiver (29366 or 29368 - NOT INCLUDED) allows you to extend a VGA signal over two Cat5/Cat5e/Cat6 unshielded twisted pair cables up to 300ft without signal degradation at 1920x1200 or 1920x1080 resolutions. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. The transmitter and receiver come in either wall plate or box form factors and are inter-operable allowing you to choose the form factors that are best suited for the application. In addition this solution utilizes phantom power providing you the flexibility to power at either the transmitter or receiver end. The EDID copy feature ensures compatibility with any monitor. Built-In power surge protection and high ground loop immunity ensure high performance signal extension. |
| Maximum Operating Distance | 300 ft |
| Maximum Operating Distance | 300 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Maximum Video Resolution | 1920 x 1200 |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Product color | Black |
| Product color | Black |
| Product Line | TruLink |
| Product Line | TruLink |

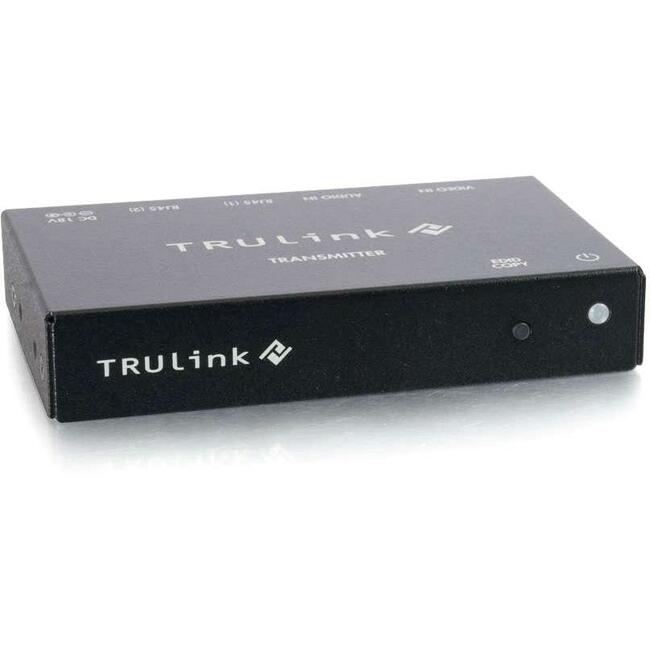

| Product Name | TruLink Video Extender |
| Product Name | TruLink Video Extender |
| Product Type | Video Extender Transmitter |
| Product Type | Video Extender Transmitter |
| Twisted Pair Cable Standard | Category 6 |
| Twisted Pair Cable Standard | Category 6 |
| UPC Alternates | 757120293675 818240061572 |
| UPC Alternates | 757120293675 818240061572 |
